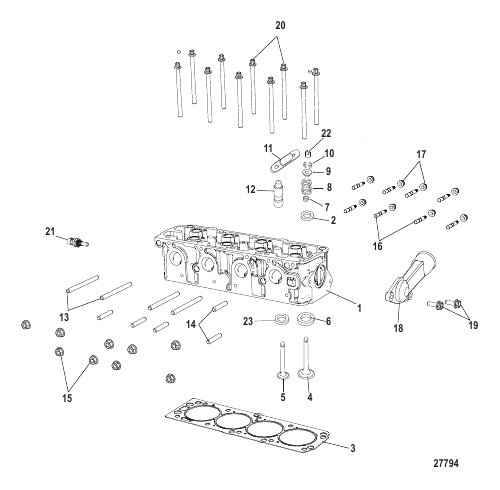

Cylinder Block Cylinder Head Assembly
Parts (27)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 898101873 |
ГОЛОВКА ЦИЛИНДРА CYLINDER HEAD |
1 | discontinued |
| 10 | 898101882 |
КЛЮЧ KEY |
16 | discontinued |
| 11 | 898101880 |
РЫЧАГ КОРОМЫСЛА ROCKER ARM |
8 | |
| 12 | 898101884 |
РЕГУЛЯТОР Valve Adjuster ADJUSTER Valve Adjuster |
8 | |
| 13 | 8M2003551 |
ШПИЛЬКА (M8 x 1.25 x 44) STUD (M8 x 1.25 x 44) |
9 | discontinued |
| 14 | 898101881 |
СИДЕНЬЕ SEAT |
8 | discontinued |
| 15 | 826365 |
ГАЙКА (M8) NUT (M8) |
9 | |
| 16 | 8M2003551 |
ШПИЛЬКА (M8 x 1.25 x 44) STUD (M8 x 1.25 x 44) |
8 | discontinued |
| 17 | 826365 |
ГАЙКА (M8) NUT (M8) |
8 | |
| 18 | 879150006 |
КОРПУС В СБОРЕ С корпусом и уплотнителем HOUSING ASSEMBLY With Housing and Seal |
1 | discontinued |
| 19 | 879150007 |
ВИНТ (M8 x 18) SCREW (M8 x 18) |
2 | discontinued |
| 2 | 898101881 |
СИДЕНЬЕ SEAT |
4 | discontinued |
| 20 | 898101867 |
ВИНТ SCREW |
10 | |
| 21 | 879150065 |
ДАТЧИК Температура SENSOR Temperature |
1 | |
| 22 | 898101888 |
СИДЕНЬЕ SEAT |
8 | discontinued |
| 23 | 898101875 |
СЕДЛО КЛАПАНА Выхлоп VALVE SEAT Exhaust |
4 | discontinued |
| 23 | 898101874 |
СЕДЛО КЛАПАНА Выхлоп (4 мм) VALVE SEAT Exhaust (4 mm) |
AR | discontinued |
| 23 | 898101876 |
СЕДЛО КЛАПАНА Впуск VALVE SEAT Intake |
4 | discontinued |
| 23 | 898101877 |
СЕДЛО КЛАПАНА Впуск (2 мм) VALVE SEAT Intake (2 mm) |
AR | discontinued |
| 23 | 898101878 |
СЕДЛО КЛАПАНА Впуск (4 мм) VALVE SEAT Intake (4 mm) |
AR | discontinued |
| 3 | 898101872 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 4 | 898101890 |
КЛАПАН Впуск VALVE Intake |
4 | discontinued |
| 5 | 898101889 |
КЛАПАН Выхлоп VALVE Exhaust |
4 | discontinued |
| 6 | 898101887 |
РОТАТОР ROTATOR |
4 | discontinued |
| 7 | 898101886 |
УПЛОТНЕНИЕ SEAL |
8 | discontinued |
| 8 | 898101885 |
ПРУЖИНА SPRING |
8 | discontinued |
| 9 | 898101883 |
ПРОБКА CAP |
8 | discontinued |
