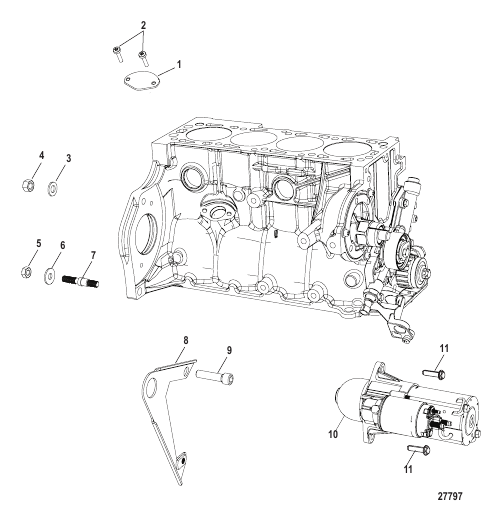

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M2000595 | CAP | 1 | disc. |
| 10 | 866512T | STARTER MOTOR ASSEMBLY | 1 | disc. |
| 11 | 4010725 | SCREW (M8 x 25) | 2 | |
| 2 | 85593914 | SCREW (M6 x 14) | 2 | disc. |
| 3 | 4002321 | WASHER (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel | 1 | |
| 4 | 82375110 | NUT (M12) | 1 | disc. |
| 5 | 40114 | NUT (M10 x 1.5) | 1 | |
| 6 | 4002320 | WASHER | 1 | |
| 7 | 8M2001034 | STUD Stainless Steel | 1 | disc. |
| 8 | 8M2000328 | BRACKET | 1 | disc. |
| 9 | 4009150 | SCREW (M12 x 50) | 1 | disc. |
