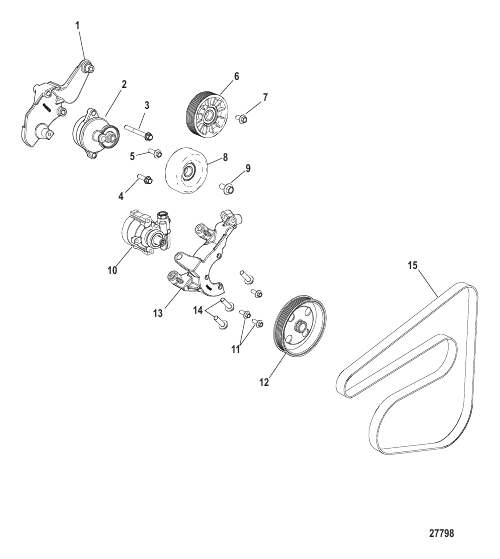

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
866323T |
BRACKET
|
1 |
disc.
|
| 10 |
865710T |
PUMP ASSEMBLY .75 Shaft Diameter
|
1 |
disc.
|
| 11 |
4010720 |
SCREW (M8 x 20)
|
3 |
|
| 12 |
8M2001037 |
PULLEY
|
1 |
|
| 13 |
866321T01 |
BRACKET
|
1 |
disc.
|
| 14 |
4010835 |
SCREW (M10 x 35) Hex Flange - Stainless Steel
|
3 |
|
| 15 |
8M0028573 |
BELT Serpentine
|
1 |
disc.
|
| 2 |
865597T |
TENSIONER Belt
|
1 |
|
| 3 |
88552675 |
SCREW (M8 x 75)
|
1 |
superseded
|
| 4 |
88552630 |
SCREW (M8 x 30)
|
1 |
superseded
|
| 5 |
4010725 |
SCREW (M8 x 25)
|
1 |
|
| 6 |
865444T |
PULLEY (3.50 Inch Diameter)
|
1 |
|
| 7 |
4010820 |
SCREW (M10 x 20) Hex Flange - Stainless Steel
|
1 |
|
| 8 |
865777 |
PULLEY
|
1 |
|
| 9 |
4010820 |
SCREW (M10 x 20) Hex Flange - Stainless Steel
|
1 |
|
