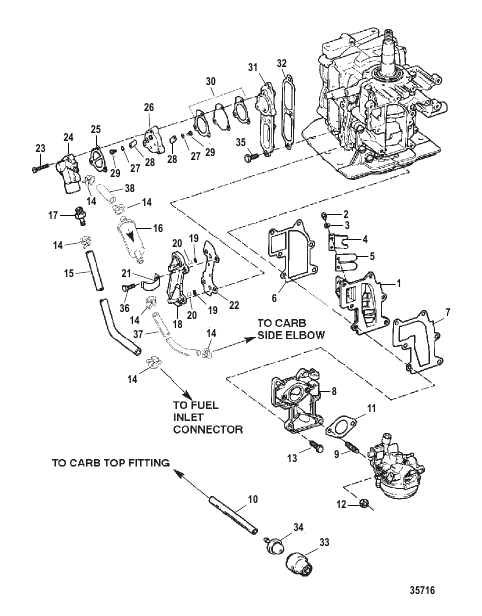

FUEL AND RECIRCULATION SYSTEM
Parts (42)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | FK10294 |
КОМПЛЕКТ ПРОКЛАДОК Карбюратор GASKET SET Carburetor |
1 | |
| - | FG1036 |
КОМПЛЕКТ ПРОКЛАДОК Укороченный блок GASKET SET Short Block |
1 | discontinued |
| - | 819553A12 |
БЛОК ЦИЛИНДРА В СБОРЕ CYLINDER BLOCK ASSEMBLY |
1 | discontinued |
| - | 819553A15 |
УКОРОЧЕННЫЙ БЛОК В СБОРЕ SHORT BLOCK ASSEMBLY |
1 | discontinued |
| 1 | FA715158 |
ПЛАСТИНА В СБОРЕ Пластинчатый клапан PLATE ASSEMBLY Reed |
1 | superseded |
| 10 | 819398T |
РУКАВ (18.00 In. Bulk) (Cut 5.750 In.)-Primer Bulb to Carb HOSE (18.00 In. Bulk) (Cut 5.750 In.)-Primer Bulb to Carb |
1 | |
| 11 | F18906 |
ПРОКЛАДКА Карбюратор GASKET Carburetor |
1 | |
| 12 | 20890 |
ГАЙКА (0.250-20) NUT (.250-20) |
2 | |
| 13 | 28668 |
ВИНТ (0.250-20 x 0.875), нержавеющая сталь SCREW (.250-20 x .875) Stainless Steel |
6 | |
| 14 | 56762 |
ЛЕНТОЧНЫЙ ХОМУТ (4.00") TIE STRAP (4.00 Inches) |
6 | |
| 15 | 819398T |
РУКАВ Fuel (18.00 In. Bulk) (Cut 10.500 In.) HOSE Fuel (18.00 In. Bulk) (Cut 10.500 In.) |
1 | |
| 16 | 828998 |
ФИЛЬТР Топливо FILTER Fuel |
1 | discontinued |
| 17 | 850314 |
ФИТИНГ Fuel Pump FITTING Fuel Pump |
1 | discontinued |
| 18 | 820070A3 |
КРЫШКА В СБОРЕ Слив цилиндра (Painted) COVER ASSEMBLY Cylinder Drain (Painted) |
1 | discontinued |
| 19 | F429811 |
ЭКРАН SCREEN |
2 | discontinued |
| 2 | 28430 |
ВИНТ (№6-32 x 0.25) SCREW (#6-32 x .25) |
8 | |
| 20 | 817741A1 |
КОМПЛЕКТ ОБРАТНОГО КЛАПАНА CHECK VALVE KIT |
2 | discontinued |
| 21 | F286772-1 |
ЗАЖИМ CLAMP |
1 | discontinued |
| 22 | 825188 |
ПРОКЛАДКА Крышка слива цилиндра GASKET Cylinder Drain Cover |
1 | discontinued |
| 23 | F1069 |
ВИНТ (№10-24 x 1.062) (#10-24 x 1.062) SCREW (#10-24 x 1.062) (#10-24 x 1.062) |
3 | discontinued |
| 24 | 819993T2 |
КРЫШКА Топливный насос (Painted) COVER Fuel Pump (Painted) |
1 | discontinued |
| 25 | F24748-2 |
ПРОКЛАДКА Топливный насос GASKET Fuel Pump |
1 | |
| 26 | F2A24757 |
ПЛАСТИНА В СБОРЕ Топливный насос PLATE ASSEMBLY Fuel Pump |
1 | discontinued |
| 27 | 18552 |
ШАЙБА WASHER |
2 | discontinued |
| 28 | F18160-3 |
ПЛАСТИНЧАТЫЙ КЛАПАН REED |
2 | |
| 29 | F1286 |
ВИНТ (№4-40 x 0.187) SCREW (#4-40 x .187) |
2 | discontinued |
| 3 | F1704 |
ШАЙБА (#6 Internal) WASHER (#6 Internal) |
8 | discontinued |
| 30 | 818043A1 |
НАБОР ПРОКЛАДОК/ДИАФРАГМ GASKET/DIAPHRAGM SET |
1 | |
| 31 | 820116T |
КРЫШКА Перепускное отверстие COVER Transfer Port |
1 | discontinued |
| 32 | 825183 |
ПРОКЛАДКА Крышка перепускного отверстия GASKET Transfer Port Cover |
1 | |
| 33 | 851934 |
КРЫШКА Подкачивающая груша COVER Primer Bulb |
1 | discontinued |
| 34 | F681046 |
ЛАМПА Устройство для заливки топлива BULB Primer |
1 | |
| 35 | 98254 |
ВИНТ (0.250-20 x 0.620) SCREW (.250-20 x .620) |
4 | |
| 36 | F1922 |
ВИНТ (0.250-20 x 0.625) (.250-20 x .625) SCREW (.250-20 x .625) (.250-20 x .625) |
4 | discontinued |
| 37 | 819398T |
РУКАВ Fuel (18.00 In. Bulk) (Cut 10.250 In.) HOSE Fuel (18.00 In. Bulk) (Cut 10.250 In.) |
1 | |
| 38 | 819398T |
РУКАВ Fuel (18.00 In. Bulk) (Cut 4.00 In.) HOSE Fuel (18.00 In. Bulk) (Cut 4.00 In.) |
1 | |
| 4 | F715161 |
СТОП Пластинчатый клапан STOP Reed |
4 | discontinued |
| 5 | F31160-2 |
ПЛАСТИНЧАТЫЙ КЛАПАН REED |
4 | discontinued |
| 6 | F286159-1 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 7 | F715168 |
ПРОКЛАДКА Коллектор GASKET Manifold |
1 | discontinued |
| 8 | 854240A1 |
ВПУСКНОЙ КОЛЛЕКТОР Карбюратор (Painted) MANIFOLD ASSEMBLY Carburetor (Painted) |
1 | discontinued |
| 9 | 826622 |
ШПИЛЬКА (0.250-20 x 0.910) (.250-20 x .910) With Dri Lok STUD (.250-20 x .910) (.250-20 x .910) With Dri Lok |
2 | discontinued |
