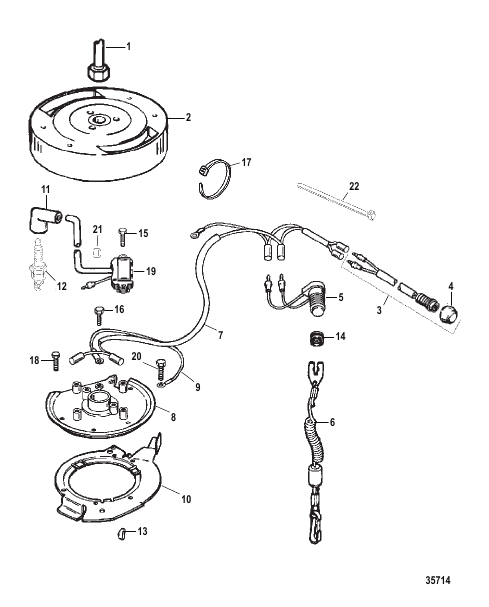

IGNITION SYSTEM
Parts (23)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | F681091 |
ГАЙКА Flywheel NUT Flywheel |
1 | discontinued |
| 10 | 855352 |
КУЛАЧОК Дроссельная заслонка CAM Throttle |
1 | discontinued |
| 11 | 63709A1 |
КОМПЛЕКТ ЧЕХЛА/КЛЕММ Spark Plug BOOT/TERMINAL KIT Spark Plug |
2 | |
| 12 | 312 |
СВЕЧА ЗАЖИГАНИЯ (CHAMPION # L87YC) SPARK PLUG (CHAMPION # L87YC) |
2 | |
| 12 | 327 |
СВЕЧА ЗАЖИГАНИЯ (RFI) (CHAMPION # RL87YC) SPARK PLUG (RFI) (CHAMPION # RL87YC) |
OPT | discontinued |
| 13 | F458498-1 |
КЛЮЧ Коленчатый вал/маховик KEY Crankshaft/Flywheel |
1 | discontinued |
| 14 | 855594 |
ГАЙКА (Special)-Stop Switch Sleeve NUT (Special)-Stop Switch Sleeve |
1 | discontinued |
| 15 | 824353 |
ВИНТ (#8-32 x .750)-Ignition Module SCREW (#8-32 x .750)-Ignition Module |
6 | discontinued |
| 16 | 824352 |
ВИНТ (№10-24 x 0.375) (#10-24 x .375)-Ground SCREW (#10-24 x .375) (#10-24 x .375)-Ground |
1 | discontinued |
| 17 | 56762 |
ЛЕНТОЧНЫЙ ХОМУТ (4.00") TIE STRAP (4.00 Inches) |
1 | |
| 18 | 824358 |
ВИНТ (№10-24 x 0.500) (#10-24 x .500)-Stator Plate SCREW (#10-24 x .500) (#10-24 x .500)-Stator Plate |
5 | discontinued |
| 19 | 850899T |
МОДУЛЬ Зажигание (Cut Wire as Req'd) MODULE Ignition (Cut Wire as Req'd) |
2 | discontinued |
| 2 | 824380T4 |
МАХОВИК (Painted) FLYWHEEL (Painted) |
1 | discontinued |
| 20 | 824358 |
ВИНТ (№10-24 x 0.500) (#10-24 x .500)-Ground SCREW (#10-24 x .500) (#10-24 x .500)-Ground |
1 | discontinued |
| 21 | 20117A1 |
НАБОР МАРКЕРОВ Кабели зажигания MARKER SET Ignition Cables |
1 | discontinued |
| 22 | 816311 |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
2 | superseded |
| 3 | 824440A15 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Стоп SWITCH ASSEMBLY Stop |
1 | |
| 4 | 824466A3 |
КРЫШКА В СБОРЕ Переключатель останова COVER ASSEMBLY Stop Switch |
1 | discontinued |
| 5 | 826214A1 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Аварийная остановка SWITCH ASSEMBLY Emergency Stop |
1 | discontinued |
| 6 | 819399A1 |
ТАЛРЕП В СБОРЕ LANYARD ASSEMBLY |
1 | superseded |
| 7 | 819379A7 |
ЖГУТ ПРОВОДОВ В СБОРЕ Останов двигателя HARNESS ASSEMBLY Engine Stop |
1 | discontinued |
| 8 | 828243T |
КОМПЛЕКТ ПЛАСТИН Статор PLATE KIT Stator |
1 | discontinued |
| 9 | 60466A21 |
КАБЕЛЬ В СБОРЕ Заземление CABLE ASSEMBLY Ground |
1 | discontinued |
