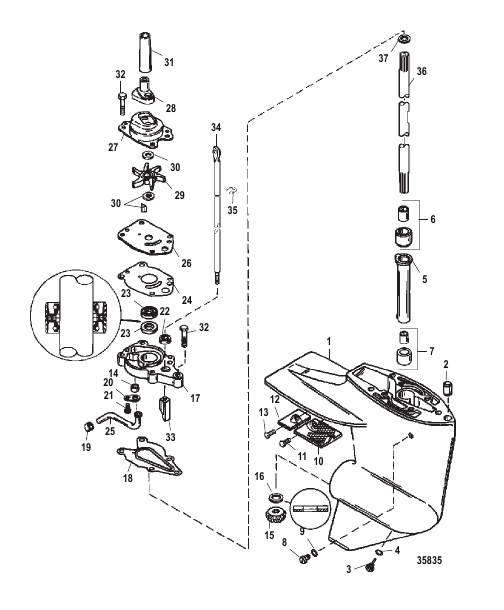

GEAR HOUSING ASSEMBLY (DRIVESHAFT)
Parts (43)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 41365A3 |
КОМПЛЕКТ УПЛОТНЕНИЙ Gear Housing SEAL KIT Gear Housing |
1 | |
| - | 42089A5 |
КОМПЛЕКТ НАСОСА Вода PUMP KIT Water |
1 | |
| 1 | 8833A30 |
КАРТЕР РЕДУКТОРА В СБОРЕ (COMPLETE) (Painted) (MODEL 225.591500) GEAR HOUSING ASSEMBLY (COMPLETE) (Painted) (MODEL 225.591500) |
1 | discontinued |
| 1 | 8833A31 |
КАРТЕР РЕДУКТОРА В СБОРЕ (COMPLETE) (Painted) (MODEL 225.591490) GEAR HOUSING ASSEMBLY (COMPLETE) (Painted) (MODEL 225.591490) |
1 | discontinued |
| 1 | 8833A29 |
КАРТЕР РЕДУКТОРА В СБОРЕ (BASIC) (Painted) GEAR HOUSING ASSEMBLY (BASIC) (Painted) |
1 | discontinued |
| 10 | 421991 |
ЭКРАН SCREEN |
1 | |
| 11 | 13954 |
ВИНТ (0.250-14 x 0.88) SCREW (.250-14 x .88) |
1 | |
| 12 | 42121A2 |
АНОД В СБОРЕ ANODE ASSEMBLY |
1 | superseded |
| 13 | 13954 |
ВИНТ (0.250-14 x 0.88) SCREW (.250-14 x .88) |
1 | |
| 14 | 42133 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 15 | 8219251 |
ПЕРЕДАЧА Шестерня – 13-26 GEAR Pinion - 13-26 |
1 | |
| 16 | 41369 |
ШАЙБА Thrust WASHER Thrust |
1 | |
| 17 | 42040A5 |
БАЗА В СБОРЕ Водяной насос BASE ASSEMBLY Water Pump |
1 | superseded |
| 18 | 192042 |
ПРОКЛАДКА Water Pump Base GASKET Water Pump Base |
1 | superseded |
| 19 | 33613 |
УПЛОТНЕНИЕ Water Inlet Tube SEAL Water Inlet Tube |
1 | |
| 2 | 12009 |
ВТУЛКА (0.31 x 0.45 x 0.50) BUSHING (.31 x .45 x .50) |
1 | |
| 20 | 42375 |
ФИКСАТОР Water Tube RETAINER Water Tube |
1 | |
| 21 | 48408 |
ВИНТ (№10-16 x 0.500) SCREW (#10-16 x .500) |
1 | |
| 22 | 822236 |
СЧЕТВЕРЕННОЕ КОЛЬЦО QUAD RING |
1 | |
| 23 | 413651 |
УПЛОТНЕНИЕ Масло SEAL Oil |
2 | |
| 24 | 19202 |
ПРОКЛАДКА Пластина водяного насоса GASKET Water Pump Plate |
1 | superseded |
| 25 | 42185A1 |
ТРУБА В СБОРЕ Вода (Includes #14 & #20) TUBE ASSEMBLY Water (Includes #14 & #20) |
1 | |
| 26 | 42200 |
ЦИФЕРБЛАТ FACE PLATE |
1 | |
| 27 | 42089A2 |
КРЫШКА В СБОРЕ (With Insert) COVER ASSEMBLY (With Insert) |
1 | |
| 28 | 421021 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 29 | 420382 |
КРЫЛЬЧАТКА IMPELLER |
1 | superseded |
| 3 | 67892A1 |
КОМПЛЕКТ ФИТИНГОВ Магнитный, пробка горловины для заполнения/слива FITTING KIT Magnetic, Plug Fill/Drain |
1 | superseded |
| 30 | 42376A2 |
КЛЮЧ В СБОРЕ (With Two Washers) KEY ASSEMBLY (With Two Washers) |
1 | superseded |
| 31 | 444671 |
НАПРАВЛЯЮЩАЯ Water Tube GUIDE Water Tube |
1 | |
| 32 | 82684430 |
ВИНТ (M6 x 30) SCREW (M6 x 30) |
5 | |
| 33 | 42039 |
КУЛАЧОК Shift CAM Shift |
1 | |
| 34 | 850191 |
ВАЛ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ Нижняя часть (FOR MODEL 225.591500) SHIFT SHAFT Lower (FOR MODEL 225.591500) |
1 | discontinued |
| 34 | 850199 |
ВАЛ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ Нижняя часть (FOR MODEL 225.591490) SHIFT SHAFT Lower (FOR MODEL 225.591490) |
1 | discontinued |
| 35 | 42389 |
Е-ОБРАЗНОЕ КОЛЬЦО Retaining E RING Retaining |
1 | |
| 36 | 850192 |
ВЕДУЩИЙ ВАЛ (FOR MODEL 225.591500) DRIVESHAFT (FOR MODEL 225.591500) |
1 | discontinued |
| 36 | 850201 |
ВЕДУЩИЙ ВАЛ (FOR MODEL 225.591490) DRIVESHAFT (FOR MODEL 225.591490) |
1 | discontinued |
| 37 | 822248 |
УПОРНАЯ ШАЙБА Thrust THRUST WASHER Thrust |
1 | |
| 4 | 19183 |
ШАЙБА Волокна WASHER Fiber |
1 | superseded |
| 5 | 42086T |
РУКАВ SLEEVE |
1 | discontinued |
| 6 | 850197A1 |
РУКАВ В СБОРЕ Верхняя часть SLEEVE ASSEMBLY Upper |
1 | discontinued |
| 7 | 850198A1 |
РУКАВ В СБОРЕ Нижняя часть SLEEVE ASSEMBLY Lower |
1 | discontinued |
| 8 | 79953A2 |
КОМПЛЕКТ ВИНТОВ (0.375-16 x 0.250) SCREW KIT (.375-16 x .250) |
1 | superseded |
| 9 | 19183 |
ШАЙБА Волокна WASHER Fiber |
1 | superseded |
