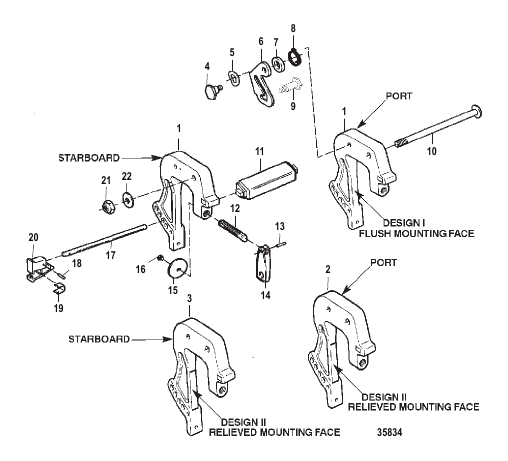

CLAMP BRACKETS
Parts (22)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 830295T1 |
КРОНШТЕЙН Корма Clamp (Port & Starboard) (Painted) (DESIGN I - FLUSH MOUNTING FACE) BRACKET Stern Clamp (Port & Starboard) (Painted) (DESIGN I - FLUSH MOUNTING FACE) |
2 | superseded |
| 10 | 851924A2 |
ПАЛЕЦ В СБОРЕ Наклон – кормовой кронштейн PIN ASSEMBLY Tilt - Stern Bracket |
1 | discontinued |
| 11 | 851929 |
РУКОЯТКА Стопорная пластина Tilt Pin HANDLE Lock Bar Tilt Pin |
1 | discontinued |
| 12 | 38489 |
ШТИФТ Ролик PIN Roll |
1 | |
| 13 | F286461 |
ПРУЖИНА Tilt Pin SPRING Tilt Pin |
1 | discontinued |
| 14 | F286422-1 |
ВИНТ (0.312-18, специальный) (.312-18 Special) SCREW (.312-18 Special) (.312-18 Special) |
1 | discontinued |
| 15 | 819226 |
ПРОСТАВКА Штифт запирания наклона SPACER Tilt Lock |
1 | discontinued |
| 16 | F429541 |
ЗАМОК Наклон LOCK Tilt |
1 | |
| 17 | 69150 |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
1 | |
| 18 | F286544-1 |
ПРУЖИНА Штифт запирания наклона SPRING Tilt Lock |
1 | discontinued |
| 19 | F617037 |
БОЛТ (0.375-16 x 6.880) (.375-16 x 6.880)-Stern Bracket Pivot BOLT (.375-16 x 6.880) (.375-16 x 6.880)-Stern Bracket Pivot |
1 | discontinued |
| 2 | 850073T6 |
КРОНШТЕЙН Корма Clamp (Port) (Painted) (DESIGN II - RELIEVED MOUNTING FACE) [0E306771] & Up BRACKET Stern Clamp (Port) (Painted) (DESIGN II - RELIEVED MOUNTING FACE) [0E306771] & Up |
1 | discontinued |
| 20 | 20553 |
ШАЙБА (0.406 x 0.734 x 0.063) WASHER (.406 x .734 x .063) |
1 | |
| 21 | F7026 |
ГАЙКА (.375-16) (.375-16) NUT (.375-16) (.375-16) |
1 | discontinued |
| 22 | 819707 |
ШТИФТ Штифт запирания наклона (.250-20) PIN Tilt Lock (.250-20) |
1 | discontinued |
| 3 | 850073T7 |
КРОНШТЕЙН Корма Clamp (Starboard) (Painted) (DESIGN II - RELIEVED MOUNTING FACE) [0E306771] & Up BRACKET Stern Clamp (Starboard) (Painted) (DESIGN II - RELIEVED MOUNTING FACE) [0E306771] & Up |
1 | discontinued |
| 4 | 826248 |
ВИНТ Кормовой кронштейн (Special) SCREW Stern Bracket (Special) |
2 | discontinued |
| 5 | F24074 |
ПЕДАЛЬ Винт кормового кронштейна FOOT Stern Bracket Screw |
2 | discontinued |
| 6 | 69022 |
ВИНТ (№10-32 x 0.500), нержавеющая сталь SCREW (#10-32 x .500) Stainless Steel |
2 | |
| 7 | F424075T3 |
РУКОЯТКА Прижимной винт (Painted) HANDLE Clamp Screw (Painted) |
2 | discontinued |
| 8 | 24198 |
ШТИФТ Ролик PIN Roll |
2 | discontinued |
| 9 | 830564 |
РУКОЯТКА Для переноски HANDLE Carrying |
1 | discontinued |
