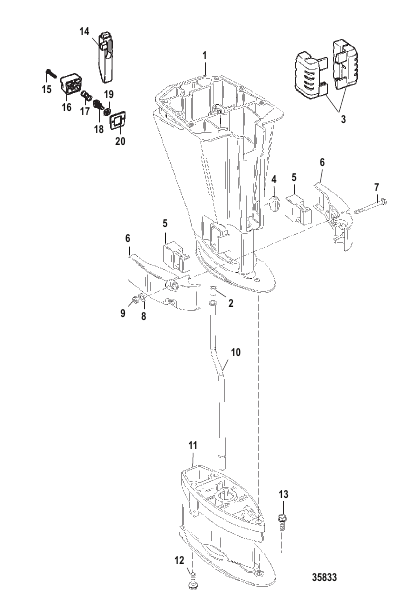

DRIVESHAFT HOUSING
Parts (21)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 850182T |
КОРПУС В СБОРЕ Карданный вал (Painted) HOUSING ASSEMBLY Driveshaft (Painted) |
1 | discontinued |
| 10 | 850195 |
ТРУБА Вода (FOR MODEL 225.591500) TUBE Water (FOR MODEL 225.591500) |
1 | discontinued |
| 10 | 850205 |
ТРУБА Вода (FOR MODEL 225.591490) TUBE Water (FOR MODEL 225.591490) |
1 | discontinued |
| 11 | 12426T |
КОРПУС Удлинитель (Painted) (FOR MODEL 225.591490) HOUSING Extension (Painted) (FOR MODEL 225.591490) |
1 | discontinued |
| 12 | 8240717 |
ВИНТ (M8 x 30) (FOR MODEL 225.591490) SCREW (M8 x 30) (FOR MODEL 225.591490) |
2 | |
| 13 | 82407110 |
ВИНТ (M8 x 50) (FOR MODEL 225.591490) SCREW (M8 x 50) (FOR MODEL 225.591490) |
1 | |
| 14 | 823694 |
ВСТАВКА Термостат INSERT Thermostat |
1 | discontinued |
| 15 | 819382 |
ВИНТ (0.250-20 x 1.00) (.250-20 x 1.00) SCREW (.250-20 x 1.00) (.250-20 x 1.00) |
2 | discontinued |
| 16 | 819321 |
КРЫШКА Термостат COVER Thermostat |
1 | discontinued |
| 17 | 819329 |
ПРУЖИНА Термостат SPRING Thermostat |
1 | discontinued |
| 18 | 819550 |
ТЕРМОСТАТ (105 Degrees) THERMOSTAT (105 Degrees) |
1 | |
| 19 | F658504 |
ШАЙБА Thermostat WASHER Thermostat |
1 | |
| 2 | 42380 |
УПЛОТНЕНИЕ Water Tube SEAL Water Tube |
1 | superseded |
| 20 | 819669 |
ПРОКЛАДКА Крышка термостата GASKET Thermostat Cover |
1 | discontinued |
| 3 | F286347 |
КРЕПЛЕНИЕ АМОРТИЗАТОРА Верхняя часть SHOCK MOUNT Upper |
2 | discontinued |
| 4 | F46899-1 |
КРЫШКА COVER |
1 | discontinued |
| 5 | 421892 |
КРЕПЛЕНИЕ Shock-Lower MOUNT Shock-Lower |
2 | superseded |
| 6 | 42374T2 |
КРОНШТЕЙН Крепление нижнего амортизатора (Painted) BRACKET Lower Shock Mount (Painted) |
2 | discontinued |
| 7 | 126711 |
ВИНТ (.250-20 x 3.00) SCREW (.250-20 x 3.00) |
2 | discontinued |
| 8 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
2 | |
| 9 | 64015 |
ГАЙКА (0.250-20) NUT (.250-20) |
2 |
