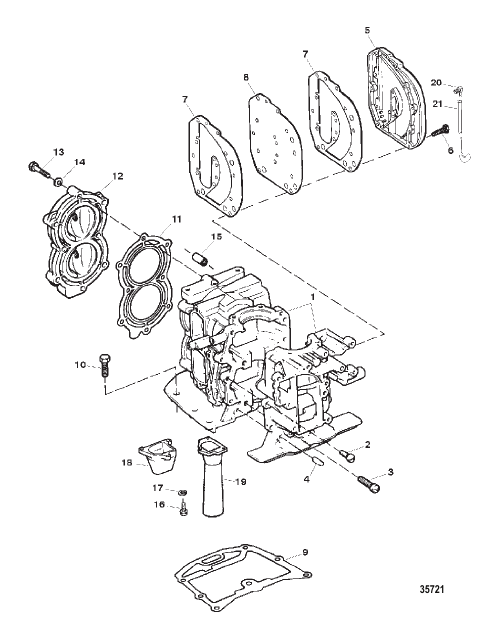

CYLINDER BLOCK ASSEMBLY
Parts (25)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | FG1035 |
КОМПЛЕКТ ПРОКЛАДОК Укороченный блок GASKET SET Short Block |
1 | discontinued |
| - | 819553A12 |
БЛОК ЦИЛИНДРА В СБОРЕ CYLINDER BLOCK ASSEMBLY |
1 | discontinued |
| - | 819553A15 |
УКОРОЧЕННЫЙ БЛОК В СБОРЕ SHORT BLOCK ASSEMBLY |
1 | discontinued |
| 1 | 819553A15 |
УКОРОЧЕННЫЙ БЛОК В СБОРЕ (Painted) SHORT BLOCK ASSEMBLY (Painted) |
1 | discontinued |
| 1 | 819553A12 |
БЛОК ЦИЛИНДРА В СБОРЕ CYLINDER BLOCK ASSEMBLY |
1 | discontinued |
| 10 | 35386 |
ВИНТ (0.312-18 x 1.00) SCREW (.312-18 x 1.00) |
6 | |
| 11 | F286529-3 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 12 | F286518T1 |
ГОЛОВКА ЦИЛИНДРА (Painted) CYLINDER HEAD (Painted) |
1 | |
| 13 | F901938-1 |
ВИНТ (0.250-20 x 0.875) Cylinder Head SCREW (.250-20 x .875) Cylinder Head |
8 | discontinued |
| 14 | 37998 |
ШАЙБА WASHER |
8 | |
| 15 | F715943 |
ТРУБА Водяная рубашка цилиндра TUBE Cylinder Water Jacket |
1 | discontinued |
| 16 | 28636 |
ВИНТ (0.250-20 x 0.750) SCREW (.250-20 x .750) |
3 | |
| 17 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
3 | |
| 18 | NA |
NOT AVAILABLE Not sold with this model NOT AVAILABLE Not sold with this model |
1 | |
| 19 | 853636 |
TUBE Exhaust TUBE Exhaust |
1 | superseded |
| 2 | F1107 |
ВИНТ (0.250-20 x 0.750) SCREW (.250-20 x .750) |
8 | discontinued |
| 20 | 88780 |
КОЛЕНЧАТЫЙ Трубопровод контрольного устройства (90 Degree) ELBOW Tell-Tale Tubing (90 Degree) |
1 | superseded |
| 21 | 5495025 |
ТРУБОПРОВОД (Общая длина 25.00 фт.) (Cut 8.00 In.) TUBING (25.00 Feet Bulk) (Cut 8.00 In.) |
1 | discontinued |
| 3 | F1335 |
ВИНТ (0.312-18 x 1.250) SCREW (.312-18 x 1.250) |
4 | discontinued |
| 4 | F8559 |
ШТИФТ Dowel PIN Dowel |
2 | discontinued |
| 5 | 824141T1 |
КОМПЛЕКТ КРЫШЕК Выхлоп (Painted) COVER KIT Exhaust (Painted) |
1 | discontinued |
| 6 | 28668 |
ВИНТ (0.250-20 x 0.875), нержавеющая сталь SCREW (.250-20 x .875) Stainless Steel |
12 | |
| 7 | F715154 |
ПРОКЛАДКА Крышка выхлопа по левому борту GASKET Exhaust Port Cover |
2 | |
| 8 | F715151 |
ПЛАСТИНА Выхлоп PLATE Exhaust |
1 | discontinued |
| 9 | 853957 |
ПРОКЛАДКА Крепление цилиндра GASKET Cylinder Mounting |
1 |
