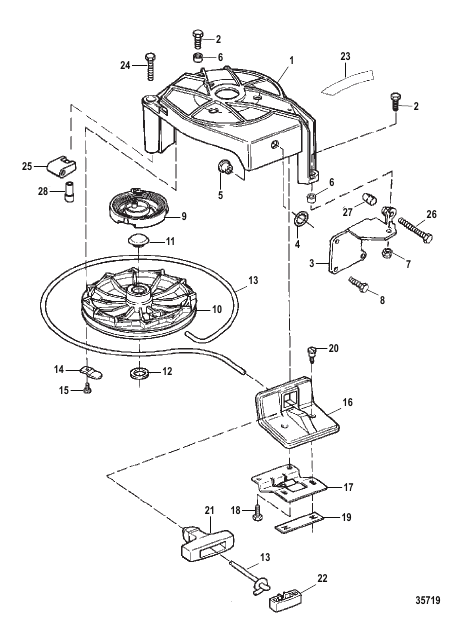

STARTER COMPONENTS
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 826693 |
КОРПУС Стартер HOUSING Starter |
1 | discontinued |
| 10 | 42034A2 |
ШКИВ В СБОРЕ Перемотка стартера PULLEY ASSEMBLY Starter Rewind |
1 | discontinued |
| 11 | 817362 |
ПРОБКА CAP |
1 | |
| 12 | 124941 |
УПЛОТНЕНИЕ Подшипник шкива SEAL Pulley Bearing |
1 | discontinued |
| 13 | 12066A12 |
ТРОС (64/67 In.) ROPE (64/67 In.) |
1 | superseded |
| 14 | F681592 |
ФИКСАТОР Шкив стартера RETAINER Starter Pulley |
3 | discontinued |
| 15 | 48408 |
ВИНТ (№10-16 x 0.500) SCREW (#10-16 x .500) |
3 | |
| 16 | FA681630T |
ОПОРА В СБОРЕ Рукоятка SUPPORT ASSEMBLY Handle |
1 | |
| 17 | F681090 |
ПЛАСТИНА Опора рукоятки PLATE Handle Support |
1 | discontinued |
| 18 | F2210 |
ВИНТ (0.250-14 x 0.500) SCREW (.250-14 x .500) |
2 | discontinued |
| 19 | F6818741 |
ФИКСАТОР Опорная пластина рукоятки FASTENER Handle Support Plate |
1 | |
| 2 | 90192 |
ВИНТ (0.250-20 x 0.750), нержавеющая сталь SCREW (.250-20 x .750) Stainless Steel |
2 | |
| 20 | 819625 |
ВИНТ Shoulder SCREW Shoulder |
2 | discontinued |
| 21 | F681132 |
РУКОЯТКА Трос HANDLE Rope |
1 | discontinued |
| 22 | F681817 |
ФИКСАТОР Рукоятка троса RETAINER Rope Handle |
1 | discontinued |
| 23 | 825149A1 |
КОМПЛЕКТ НАКЛЕЕК Shift to Neutral DECAL KIT Shift to Neutral |
1 | discontinued |
| 24 | F2030 |
ВИНТ (0.250-20 x 1.250), нержавеющая сталь SCREW (.250-20 x 1.250) Stainless Steel |
1 | |
| 25 | 830265 |
ФИКСАТОР Трос газа RETAINER Throttle Cable |
1 | discontinued |
| 26 | 826676 |
ВИНТ (0.250-28 x 2.00) (.250-28 x 2.00)-Idle Adjust SCREW (.250-28 x 2.00) (.250-28 x 2.00)-Idle Adjust |
1 | discontinued |
| 27 | 26852 |
ПРОБКА Нейлон Idle Adjust Screw CAP Nylon Idle Adjust Screw |
1 | |
| 28 | 830196 |
ПРОСТАВКА Фиксатор троса газа SPACER Throttle Cable Retainer |
1 | discontinued |
| 3 | 826559A3 |
КРОНШТЕЙН В СБОРЕ Корпус стартера BRACKET ASSEMBLY Starter Housing |
1 | discontinued |
| 4 | 818853 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 5 | F681428 |
ВСТАВКА Трос стартера INSERT Starter Rope |
1 | discontinued |
| 6 | F681405T |
ВСТАВКА Корпус стартера INSERT Starter Housing |
2 | discontinued |
| 7 | 814101 |
ГАЙКА (0.250-20), нержавеющая сталь NUT (.250-20) Stainless Steel |
1 | superseded |
| 8 | F1922 |
ВИНТ (0.250-20 x 0.625) (.250-20 x .625) SCREW (.250-20 x .625) (.250-20 x .625) |
4 | discontinued |
| 9 | F681970 |
ПРУЖИНА Перемотка стартера SPRING Starter Rewind |
1 | discontinued |
