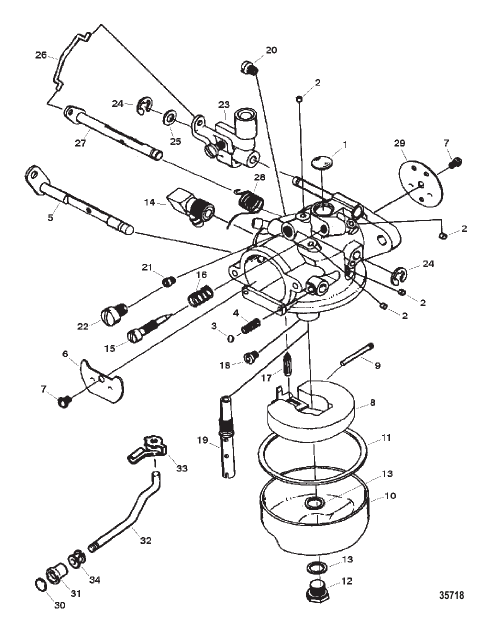

CARBURETOR
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 852550A1 |
КАРБЮРАТОР (FO-1D) CARBURETOR (FO-1D) |
1 | discontinued |
| - | FK10352 |
КОМПЛЕКТ ПРОКЛАДОК Карбюратор GASKET SET Carburetor |
1 | |
| - | 854219A1 |
РЕМОНТНЫЙ КОМПЛЕКТ Карбюратор REPAIR KIT Carburetor |
1 | discontinued |
| 1 | FO16128 |
ПРОБКА By Pass Chamber PLUG By Pass Chamber |
1 | |
| 10 | FO15366 |
КАМЕРА Топливо BOWL Fuel |
1 | |
| 11 | FO15623 |
ПРОКЛАДКА Fuel Bowl GASKET Fuel Bowl |
1 | |
| 12 | 5128 |
ВИНТ Fuel Bowl SCREW Fuel Bowl |
1 | discontinued |
| 13 | FO2510 |
ПРОКЛАДКА Топливная камера GASKET Fuel Bowl |
2 | |
| 14 | 854005 |
КОЛЕНЧАТЫЙ Топливо ELBOW Fuel |
1 | discontinued |
| 15 | F10268 |
ВИНТ Idle Mixture SCREW Idle Mixture |
1 | |
| 16 | 27160 |
ПРУЖИНА Idle Mixture Screw SPRING Idle Mixture Screw |
1 | |
| 17 | F10265 |
ИГЛА Впуск (NOTE: DO NOT REMOVE INLET SEAT) NEEDLE Inlet (NOTE: DO NOT REMOVE INLET SEAT) |
1 | |
| 18 | 6030 |
ВОДОМЕТНЫЙ (0.070) Main (0 - 2500 Ft.) JET (.070) Main (0 - 2500 Ft.) |
1 | |
| 18 | 6029 |
ВОДОМЕТНЫЙ (0.068) Main (2500 - 5000 Ft.) JET (.068) Main (2500 - 5000 Ft.) |
OPT | |
| 18 | 4215 |
ВОДОМЕТНЫЙ Главн. топл. (0.066) Main (5000 - 7500 Ft.) JET Main Fuel (.066) Main (5000 - 7500 Ft.) |
OPT | |
| 18 | 4216 |
ВОДОМЕТНЫЙ (0.064) Main (7500 - 10000 Ft.) JET (.064) Main (7500 - 10000 Ft.) |
OPT | |
| 19 | FO15722 |
ШТУЦЕР Главный NOZZLE Main |
1 | discontinued |
| 2 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО BALL, Body Channel Plug NOT SOLD SEPARATE BALL, Body Channel Plug |
4 | |
| 20 | 820578 |
ВОДОМЕТНЫЙ (.048)-Idle Air Bleed JET (.048)-Idle Air Bleed |
1 | discontinued |
| 21 | F10273 |
ВОДОМЕТНЫЙ (0.047) Throttle JET (.047) Throttle |
1 | |
| 22 | F10275 |
ВИНТ Throttle Jet Sealing SCREW Throttle Jet Sealing |
1 | |
| 23 | F10290 |
ТЯГА Дроссельная заслонка LINKAGE Throttle |
1 | discontinued |
| 24 | 809446 |
E-ОБРАЗНОЕ КОЛЬЦО Тяга газа E-RING Throttle Linkage |
2 | discontinued |
| 25 | F10242 |
ШАЙБА Throttle Linkage Shaft WASHER Throttle Linkage Shaft |
1 | discontinued |
| 26 | 809443 |
ПРОВОД Вал дроссельной заслонки WIRE Throttle Shaft |
1 | discontinued |
| 27 | F10349 |
ВАЛ Дроссельная заслонка SHAFT Throttle |
1 | discontinued |
| 28 | F10350 |
ПРУЖИНА Вал дроссельной заслонки SPRING Throttle Shaft |
1 | |
| 29 | F10351 |
ЗАСЛОНКА Дроссельная заслонка SHUTTER Throttle |
1 | discontinued |
| 3 | FO4784 |
ШАРИК Choke Friction BALL Choke Friction |
1 | discontinued |
| 30 | F681677 |
ВСТАВКА Шток дросселя INSERT Choke Rod |
1 | discontinued |
| 31 | F286547 |
РУЧКА Обогатитель KNOB Choke |
1 | discontinued |
| 32 | 819348 |
ШТОК Обогатитель ROD Choke |
1 | discontinued |
| 33 | 830569 |
ФИКСАТОР Шток дросселя RETAINER Choke Rod |
1 | discontinued |
| 34 | F197319 |
ВТУЛКА Choke Rod BUSHING Choke Rod |
1 | discontinued |
| 4 | FO8805 |
ПРУЖИНА Трение пускового обогатителя SPRING Choke Friction |
1 | discontinued |
| 5 | F10343 |
ВАЛ Обогатитель SHAFT Choke |
1 | discontinued |
| 6 | F10344 |
ЗАСЛОНКА Обогатитель SHUTTER Choke |
1 | discontinued |
| 7 | 809441 |
ВИНТ Заслонки SCREW Shutters |
2 | |
| 8 | F10346 |
ПОПЛАВОК Fuel Bowl FLOAT Fuel Bowl |
1 | superseded |
| 9 | FO13944 |
ШТИФТ Float PIN Float |
1 |
