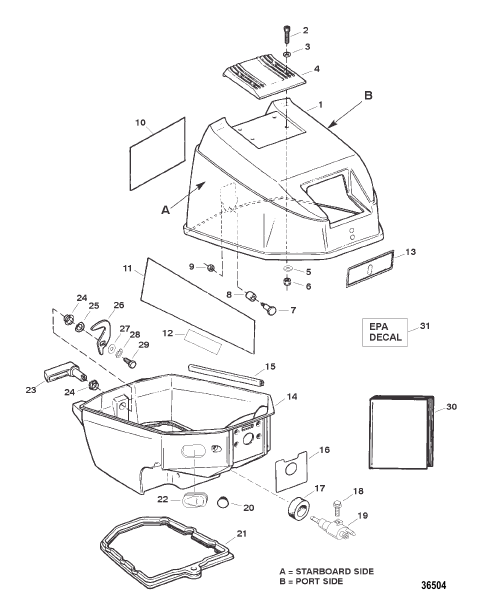

COWL ASSEMBLY TOP AND BOTTOM
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 820154A10 |
TOP COWL ASSEMBLY (WITH DECALS) (PAINTED) TOP COWL ASSEMBLY (WITH DECALS) (PAINTED) |
1 | discontinued |
| 1 | 820154A8 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (WITHOUT DECALS) (PAINTED) TOP COWL ASSEMBLY (WITHOUT DECALS) (PAINTED) |
1 | discontinued |
| 10 | 82634216 |
DECAL (REAR) DECAL (REAR) |
1 | discontinued |
| 11 | 82634214 |
DECAL (STARBOARD) DECAL (STARBOARD) |
1 | discontinued |
| 11 | 82634215 |
DECAL (PORT) DECAL (PORT) |
1 | discontinued |
| 12 | 82408812 |
НАКЛЕЙКА Переключение передач DECAL Shift |
1 | discontinued |
| 13 | 8263425 |
DECAL (FRONT)-Starter Instructions DECAL (FRONT)-Starter Instructions |
1 | discontinued |
| 14 | 835495A3 |
НИЖНИЙ КОЖУХ В СБОРЕ (Painted) BOTTOM COWL ASSEMBLY (Painted) |
1 | discontinued |
| 15 | F392756 |
УПЛОТНЕНИЕ Верхняя часть нижнего кожуха (Cut 3.783 Ft) SEAL Top Of Bottom Cowl (Cut 3.783 Ft) |
1 | discontinued |
| 16 | 8192813 |
ПЛАСТИНА Передний – нижний кожух PLATE Front - Bottom Cowl |
1 | discontinued |
| 17 | 18202 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Fuel Connector GROMMET Fuel Connector |
1 | |
| 18 | 40011128 |
ВИНТ (M6 x 20), нержавеющая сталь SCREW (M6 x 20) Stainless Steel |
1 | superseded |
| 19 | 15781A5 |
СОЕДИНИТЕЛЬ Топливо – латунь CONNECTOR Fuel - Brass |
1 | superseded |
| 2 | F2211 |
ВИНТ (№10-24 x 0.625), нержавеющая сталь SCREW (#10-24 x .625) Stainless Steel |
4 | |
| 20 | 47579 |
ПРОБКА PLUG |
1 | |
| 21 | 819486 |
УПЛОТНЕНИЕ Нижний кожух SEAL Bottom Cowl |
1 | discontinued |
| 22 | 935271 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Трос управления GROMMET Control Cable |
1 | superseded |
| 23 | 854239A1 |
РУКОЯТКА В СБОРЕ Защелка кожуха (Painted) HANDLE ASSEMBLY Cowl Latch (Painted) |
1 | discontinued |
| 24 | 812707 |
ВТУЛКА BUSHING |
2 | |
| 25 | F2047 |
ШАЙБА Волна WASHER Wave |
1 | |
| 26 | F481777 |
КУЛАЧОК Вал фиксатора CAM Latch Shaft |
1 | superseded |
| 27 | 35044 |
ШАЙБА (0.281 x 0.625 x 0.065), нержавеющая сталь WASHER (.281 x .625 x .065) Stainless Steel |
1 | |
| 28 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
1 | |
| 29 | 28635 |
ВИНТ (0.250-20 x 0.620), нержавеющая сталь SCREW (.250-20 x .620) Stainless Steel |
1 | |
| 3 | 89302 |
ШАЙБА (0.203 x 0.406 x 0.040) WASHER (.203 x .406 x .040) |
4 | |
| 30 | 855599 |
PARTS MANUAL 15 Hp Sears PARTS MANUAL 15 Hp Sears |
1 | |
| 31 | 85557737 |
DECAL EPA Label Information (Applied Inside The Top Cowl) DECAL EPA Label Information (Applied Inside The Top Cowl) |
1 | discontinued |
| 4 | F681269 |
РУКОЯТКА Наклон HANDLE Tilt |
1 | discontinued |
| 5 | F8143 |
ШАЙБА WASHER |
4 | discontinued |
| 6 | F7009 |
ГАЙКА (№10-24) NUT (#10-24) |
4 | discontinued |
| 7 | F681026 |
ВИНТ Latch Roller SCREW Latch Roller |
1 | discontinued |
| 8 | F681759 |
РОЛИК Защелка ROLLER Latch |
1 | discontinued |
| 9 | 814101 |
ГАЙКА (0.250-20), нержавеющая сталь NUT (.250-20) Stainless Steel |
1 | superseded |
