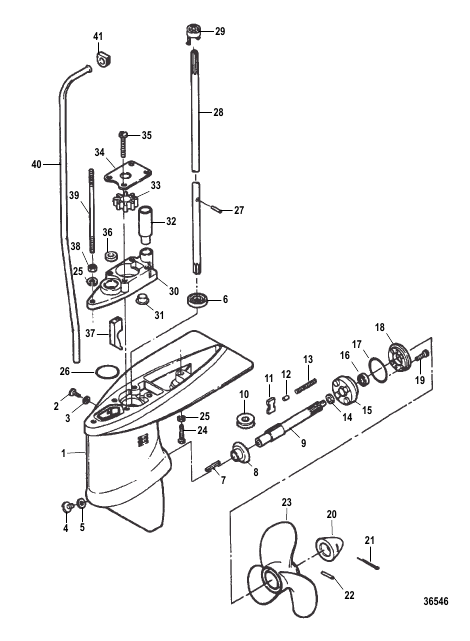

GEAR HOUSING ASSEMBLY
Parts (48)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | FK1057 |
КОМПЛЕКТ УПЛОТНЕНИЙ Gear Housing SEAL KIT Gear Housing |
1 | discontinued |
| - | 819026A1 |
КОМПЛЕКТ НАСОСА Water PUMP KIT Water |
1 | discontinued |
| 1 | 820090A8 |
КОМПЛЕКТ КАРТЕРА РЕДУКТОРА (COMPLETE) (PAINTED) GEAR HOUSING KIT (COMPLETE) (PAINTED) |
1 | discontinued |
| 1 | 820090A7 |
КОМПЛЕКТ КАРТЕРА РЕДУКТОРА (BASIC) (Painted) GEAR HOUSING KIT (BASIC) (Painted) |
1 | discontinued |
| 10 | 819250 |
ПЕРЕДАЧА Pinion GEAR Pinion |
1 | discontinued |
| 11 | F409521 |
МУФТА СЦЕПЛЕНИЯ Shift CLUTCH Shift |
1 | discontinued |
| 12 | F318372 |
ШТИФТ Clutch Guide PIN Clutch Guide |
1 | discontinued |
| 13 | F409719 |
ПРУЖИНА Clutch SPRING Clutch |
1 | discontinued |
| 14 | F521099 |
ПРОСТАВКА Propshaft Bearing SPACER Propshaft Bearing |
1 | discontinued |
| 15 | FA341298T |
СЕПАРАТОР В СБОРЕ Propshaft CAGE ASSEMBLY Propshaft |
1 | discontinued |
| 16 | F521307 |
УПЛОТНЕНИЕ Propshaft SEAL Propshaft |
1 | discontinued |
| 17 | F521305 |
УПЛОТНЕНИЕ Propshaft Bearing Cage SEAL Propshaft Bearing Cage |
1 | discontinued |
| 18 | F521296T1 |
ФИКСАТОР Propshaft Cage (Painted) RETAINER Propshaft Cage (Painted) |
1 | discontinued |
| 19 | F525457 |
ВИНТ Bearing Cage Retainer SCREW Bearing Cage Retainer |
4 | discontinued |
| 2 | F1077 |
ВИНТ (№10-24 x 0.500) SCREW (#10-24 x .500) |
1 | discontinued |
| 20 | 817752A1 |
КОМПЛЕКТ ГАЙКИ ГРЕБНОГО ВИНТА PROP NUT KIT |
1 | discontinued |
| 21 | 45882 |
ШПЛИНТ COTTER PIN |
1 | |
| 22 | FA324101 |
КОМПЛЕКТ СРЕЗНОГО ШТИФТА Prop (Pack of 3 With Cotter Pin) SHEAR PIN KIT Prop (Pack of 3 With Cotter Pin) |
1 | |
| 23 | 820110A20 |
ГРЕБНОЙ ВИНТ BLACK DIAMOND Nylon (7.250 x 6.500 x 3) (STANDARD) BLACK DIAMOND PROPELLER Nylon (7.250 x 6.500 x 3) (STANDARD) |
1 | |
| 23 | FP487 |
PROPELLER Aluminum (7.00 x 6.250 x 2) PROPELLER Aluminum (7.00 x 6.250 x 2) |
OPT | discontinued |
| 23 | FP488 |
PROPELLER Aluminum (7.250 x 5.500 x 3) PROPELLER Aluminum (7.250 x 5.500 x 3) |
OPT | discontinued |
| 23 | FP75 |
PROPELLER Aluminum (8.00 x 5.00 x 2) PROPELLER Aluminum (8.00 x 5.00 x 2) |
OPT | discontinued |
| 23 | FP652 |
PROPELLER Aluminum (8.00 x 5.00 x 3) PROPELLER Aluminum (8.00 x 5.00 x 3) |
OPT | discontinued |
| 24 | 14168 |
ВИНТ (0.250-20 x 1.00) SCREW (.250-20 x 1.00) |
1 | discontinued |
| 25 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
2 | |
| 26 | F521783 |
УПЛОТНЕНИЕ Water Pump Body SEAL Water Pump Body |
1 | discontinued |
| 27 | F390563 |
ШТИФТ Impeller Drive PIN Impeller Drive |
1 | discontinued |
| 28 | F521128 |
ВЕДУЩИЙ ВАЛ DRIVESHAFT |
1 | discontinued |
| 29 | 819330 |
ПОДШИПНИК Driveshaft Support BEARING Driveshaft Support |
1 | discontinued |
| 3 | F8074 |
ШАЙБА WASHER |
1 | discontinued |
| 30 | FA735060 |
КОРПУС В СБОРЕ Water Pump BODY ASSEMBLY Water Pump |
1 | discontinued |
| 31 | F5212461 |
ПРОБКА Water Pump PLUG Water Pump |
1 | |
| 32 | FA521735 |
КОМПЛЕКТ УПЛОТНЕНИЙ Water Line SEAL KIT Water Line |
1 | discontinued |
| 33 | F521065-1 |
КРЫЛЬЧАТКА Water Pump IMPELLER Water Pump |
1 | |
| 34 | F521537 |
ПЛАСТИНА Water Pump Top PLATE Water Pump Top |
1 | discontinued |
| 35 | F1504 |
ВИНТ (0.250-20 x 1.250) SCREW (.250-20 x 1.250) |
4 | |
| 36 | 817472 |
УПЛОТНЕНИЕ Gearshift Rod Lower SEAL Gearshift Rod Lower |
1 | |
| 37 | F521721 |
КУЛАЧОК Clutch Shift CAM Clutch Shift |
1 | discontinued |
| 38 | 64015 |
ГАЙКА (0.250-20) NUT (.250-20) |
1 | |
| 39 | F601006 |
ШПИЛЬКА STUD |
1 | discontinued |
| 4 | F50109 |
ВИНТ SCREW |
1 | superseded |
| 40 | F521244-1 |
ТРУБОПРОВОД Впуск воды – стандартный Water LINE Water Inlet - Standard Water |
1 | discontinued |
| 41 | F521342-1 |
УПЛОТНЕНИЕ Water Line Upper SEAL Water Line Upper |
1 | discontinued |
| 5 | 19183 |
ШАЙБА Волокна WASHER Fiber |
1 | superseded |
| 6 | F318307 |
УПЛОТНЕНИЕ Driveshaft SEAL Driveshaft |
1 | |
| 7 | F521728 |
ШТИФТ Clutch Shift PIN Clutch Shift |
1 | discontinued |
| 8 | 819249A1 |
РЕДУКТОР В СБОРЕ Front GEAR ASSEMBLY Front |
1 | discontinued |
| 9 | F409098 |
ВАЛ ГРЕБНОГО ВИНТА PROPELLER SHAFT |
1 | discontinued |
