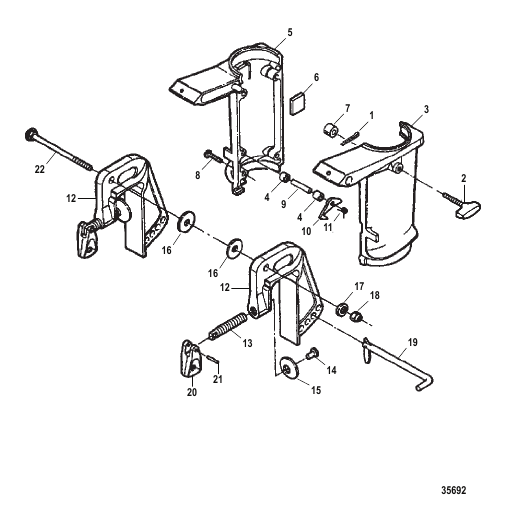

SWIVEL BRACKET/CLAMP BRACKET
Parts (22)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 26953 |
ШПЛИНТ COTTER PIN |
1 | |
| 10 | F468349 |
ЗАМОК Reverse LOCK Reverse |
1 | discontinued |
| 11 | F468300-1 |
ПРУЖИНА Reverse Lock SPRING Reverse Lock |
1 | discontinued |
| 12 | 817850A6 |
КОМПЛЕКТ КРОНШТЕЙНА Stern (Painted) BRACKET KIT Stern (Painted) |
2 | discontinued |
| 13 | 826248 |
ВИНТ Кормовой кронштейн SCREW Stern Bracket |
2 | discontinued |
| 14 | 69022 |
ВИНТ (№10-32 x 0.500), нержавеющая сталь SCREW (#10-32 x .500) Stainless Steel |
2 | |
| 15 | F24074 |
ПЕДАЛЬ Винт кормового кронштейна FOOT Stern Bracket Screw |
2 | discontinued |
| 16 | F2037 |
ШАЙБА WASHER |
2 | discontinued |
| 17 | 20553 |
ШАЙБА (0.406 x 0.734 x 0.063) WASHER (.406 x .734 x .063) |
1 | |
| 18 | F7026 |
ГАЙКА (.375-16) (.375-16) NUT (.375-16) (.375-16) |
1 | discontinued |
| 19 | 817810A1 |
Комплект задвижки LOCK BAR KIT |
1 | discontinued |
| 2 | F521514 |
РУЧКА Steering Friction KNOB Steering Friction |
1 | discontinued |
| 20 | F424075T3 |
РУКОЯТКА Прижимной винт (Painted) HANDLE Clamp Screw (Painted) |
2 | discontinued |
| 21 | 24198 |
ШТИФТ Ролик PIN Roll |
2 | discontinued |
| 22 | F468037-1 |
БОЛТ Шарнир кормового кронштейна BOLT Stern Bracket Pivot |
1 | discontinued |
| 3 | 817815A5 |
КРОНШТЕЙН Swivel (Painted) (PORT) BRACKET Swivel (Painted) (PORT) |
1 | discontinued |
| 4 | 26856 |
ВТУЛКА BUSHING |
2 | |
| 5 | 817816A7 |
КРОНШТЕЙН Swivel (Painted) (STARBOARD) BRACKET Swivel (Painted) (STARBOARD) |
1 | discontinued |
| 6 | F5216611 |
НАКЛАДКА Swivel Friction PAD Swivel Friction |
1 | |
| 7 | F521631 |
НАКОНЕЧНИК Swivel Friction SHOE Swivel Friction |
1 | discontinued |
| 8 | F2035 |
ВИНТ (.250-20 x 1.00) SCREW (.250-20 x 1.00) |
4 | discontinued |
| 9 | F468350 |
ШТИФТ Reverse Lock PIN Reverse Lock |
1 | discontinued |
