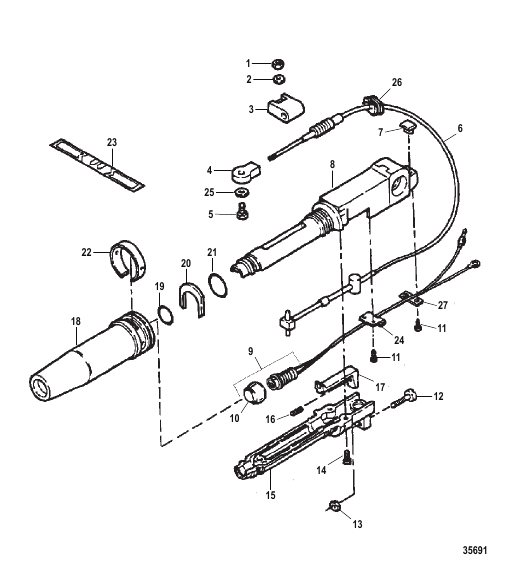

STEERING HANDLE/TWIST GRIP THROTTLE
Parts (27)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 814101 |
ГАЙКА (0.250-20), нержавеющая сталь NUT (.250-20) Stainless Steel |
1 | superseded |
| 10 | 824466A3 |
КРЫШКА В СБОРЕ Переключатель останова COVER ASSEMBLY Stop Switch |
1 | discontinued |
| 11 | F2230 |
ВИНТ (#6-.375) SCREW (#6-.375) |
4 | discontinued |
| 12 | F521690-1 |
ВИНТ Throttle Lever Adjust SCREW Throttle Lever Adjust |
1 | discontinued |
| 13 | F7009 |
ГАЙКА (№10-24) NUT (#10-24) |
1 | discontinued |
| 14 | F2219 |
ВИНТ (#8-18 x .750) SCREW (#8-18 x .750) |
3 | discontinued |
| 15 | 827252 |
ARM Рулевой механизм (LOWER) ARM Steering (LOWER) |
1 | superseded |
| 16 | F521199 |
ПРУЖИНА Throttle Lever Adjust SPRING Throttle Lever Adjust |
1 | discontinued |
| 17 | F702198 |
СТОП Idle STOP Idle |
1 | discontinued |
| 18 | 828070 |
РУКОЯТКА Рукоятка рулевого механизма GRIP Steering Handle |
1 | discontinued |
| 19 | 21836 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.796 x 0.139) O-RING (.796 x .139) |
1 | superseded |
| 2 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
1 | superseded |
| 20 | F702178 |
ФИКСАТОР Рукоятка RETAINER Grip |
1 | discontinued |
| 21 | 23145 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.984 x 0.139) Grip Rear O-RING (.984 x .139) Grip Rear |
1 | |
| 22 | F702687 |
ВТУЛКА Handle COLLAR Handle |
1 | discontinued |
| 23 | F712894 |
НАКЛЕЙКА Индикатор скорости / передачи DECAL Speed/Shift Indicator |
1 | discontinued |
| 24 | F702384 |
ФИКСАТОР RETAINER |
1 | discontinued |
| 25 | 824687 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 26 | F702504 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 27 | F702212 |
ПЛАСТИНА Cable Clamp PLATE Cable Clamp |
1 | discontinued |
| 3 | F702668 |
ФИКСАТОР Speed Control Cable RETAINER Speed Control Cable |
1 | discontinued |
| 4 | F702035 |
ПОДШИПНИК Connector (#10-24 RH) BEARING Connector (#10-24 RH) |
1 | discontinued |
| 5 | 90192 |
ВИНТ (0.250-20 x 0.750), нержавеющая сталь SCREW (.250-20 x .750) Stainless Steel |
1 | |
| 6 | F702444 |
КАБЕЛЬ В СБОРЕ Throttle CABLE ASSEMBLY Throttle |
1 | discontinued |
| 7 | F702025 |
НАКЛАДКА Handle Bumper PAD Handle Bumper |
1 | discontinued |
| 8 | F702079T1 |
ARM Steering (UPPER) (Painted) ARM Steering (UPPER) (Painted) |
1 | discontinued |
| 9 | 824440A13 |
КОМПЛЕКТ ПЕРЕКЛЮЧАТЕЛЯ Stop SWITCH KIT Stop |
1 | discontinued |
