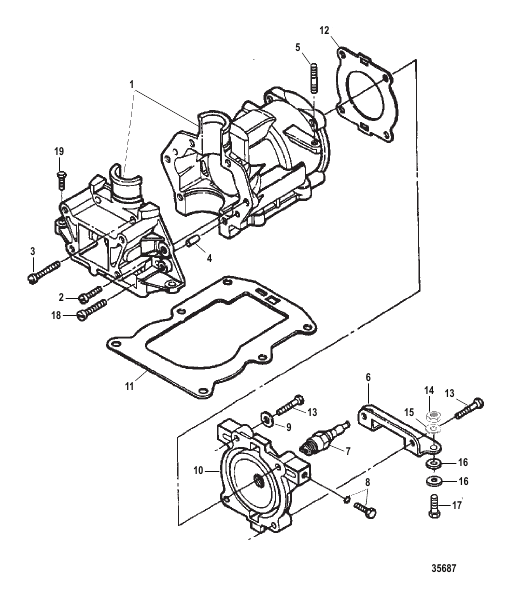

CYLINDER BLOCK ASSEMBLY
Parts (23)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | FG10341 |
КОМПЛЕКТ ПРОКЛАДОК Powerhead GASKET SET Powerhead |
1 | |
| - | 819854A5 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY |
1 | discontinued |
| 1 | 819854A5 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (Painted) POWERHEAD ASSEMBLY (Painted) |
1 | discontinued |
| 1 | 819854A1 |
КОМПЛЕКТ БЛОКА ЦИЛИНДРОВ CYLINDER BLOCK KIT |
1 | discontinued |
| 10 | 819367T1 |
ГОЛОВКА Cylinder HEAD Cylinder |
1 | discontinued |
| 11 | F521279-1 |
ПРОКЛАДКА Cylinder Exhaust GASKET Cylinder Exhaust |
1 | discontinued |
| 12 | F712529 |
ПРОКЛАДКА Cylinder Head GASKET Cylinder Head |
1 | |
| 13 | F901938-1 |
ВИНТ (0.250-20 x 0.875) Cylinder Head SCREW (.250-20 x .875) Cylinder Head |
4 | discontinued |
| 14 | 64015 |
ГАЙКА (0.250-20) NUT (.250-20) |
2 | |
| 15 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
2 | |
| 16 | 35044 |
ШАЙБА (0.281 x 0.625 x 0.065), нержавеющая сталь WASHER (.281 x .625 x .065) Stainless Steel |
4 | |
| 17 | 28636 |
ВИНТ (0.250-20 x 0.750) SCREW (.250-20 x .750) |
2 | |
| 18 | F2040 |
ВИНТ (.250-20 x .625)-Ground Wire SCREW (.250-20 x .625)-Ground Wire |
1 | discontinued |
| 19 | 28636 |
ВИНТ (0.250-20 x 0.750) SCREW (.250-20 x .750) |
2 | |
| 2 | F1107 |
ВИНТ (0.250-20 x 0.750) SCREW (.250-20 x .750) |
2 | discontinued |
| 3 | F1504 |
ВИНТ (0.250-20 x 1.250) SCREW (.250-20 x 1.250) |
4 | |
| 4 | F8559 |
ШТИФТ Dowel PIN Dowel |
2 | discontinued |
| 5 | 827386 |
ШПИЛЬКА Speed Control Cable Retainer STUD Speed Control Cable Retainer |
1 | discontinued |
| 6 | F521774 |
КРОНШТЕЙН Lower BRACKET Lower |
1 | superseded |
| 7 | 312 |
СВЕЧА ЗАЖИГАНИЯ (CHAMPION # L87YC) SPARK PLUG (CHAMPION # L87YC) |
1 | |
| 7 | 327 |
СВЕЧА ЗАЖИГАНИЯ (RFI) (CHAMPION # RL87YC) SPARK PLUG (RFI) (CHAMPION # RL87YC) |
OPT | discontinued |
| 8 | F1426 |
ВИНТ И СТОПОРНАЯ ШАЙБА (.250-20 x .437) SCREW AND LOCKWASHER (.250-20 x .437) |
2 | discontinued |
| 9 | 22937 |
ШАЙБА WASHER |
2 |
