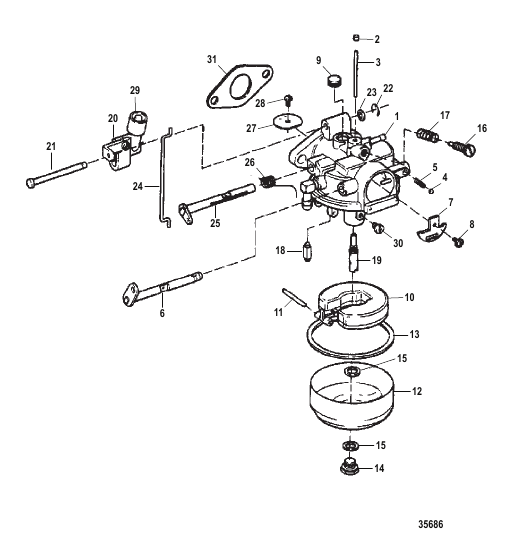

CARBURETOR
Parts (37)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | FK10295 |
РЕМОНТНЫЙ КОМПЛЕКТ Carburetor REPAIR KIT Carburetor |
1 | |
| - | FK10294 |
КОМПЛЕКТ ПРОКЛАДОК Карбюратор GASKET SET Carburetor |
1 | |
| - | FG10341 |
КОМПЛЕКТ ПРОКЛАДОК Powerhead GASKET SET Powerhead |
1 | |
| 1 | F712061 |
КАРБЮРАТОР (HO-4A) CARBURETOR (HO-4A) |
1 | discontinued |
| 10 | F10346 |
ПОПЛАВОК Fuel Bowl FLOAT Fuel Bowl |
1 | superseded |
| 11 | FO13944 |
ШТИФТ Float PIN Float |
1 | |
| 12 | FO15366 |
КАМЕРА Топливо BOWL Fuel |
1 | |
| 13 | FO15623 |
ПРОКЛАДКА Fuel Bowl GASKET Fuel Bowl |
1 | |
| 14 | 5128 |
ВИНТ Fuel Bowl SCREW Fuel Bowl |
1 | discontinued |
| 15 | FO2510 |
ПРОКЛАДКА Топливная камера GASKET Fuel Bowl |
2 | |
| 16 | FO15520 |
ИГЛА Idle NEEDLE Idle |
1 | |
| 17 | 27160 |
ПРУЖИНА Idle Needle SPRING Idle Needle |
1 | |
| 18 | F10265 |
ИГЛА Впуск (NOTE: DO NOT REMOVE INLET SEAT) NEEDLE Inlet (NOTE: DO NOT REMOVE INLET SEAT) |
1 | |
| 19 | F10238 |
ШТУЦЕР Главный NOZZLE Main |
1 | discontinued |
| 2 | FO10588 |
ПРОБКА PLUG |
1 | |
| 20 | F10290 |
ТЯГА Дроссельная заслонка LINKAGE Throttle |
1 | discontinued |
| 21 | F10240 |
ВАЛ Тяга газа SHAFT Throttle Linkage |
1 | discontinued |
| 22 | F10241 |
Е-ОБРАЗНОЕ КОЛЬЦО Throttle Linkage Shaft E RING Throttle Linkage Shaft |
1 | discontinued |
| 23 | F10242 |
ШАЙБА Throttle Linkage Shaft WASHER Throttle Linkage Shaft |
1 | discontinued |
| 24 | F10338 |
ТЯГА Throttle Shaft LINKAGE Throttle Shaft |
1 | discontinued |
| 25 | F10339 |
ВАЛ/РЫЧАГ В СБОРЕ Дроссельная заслонка SHAFT/LEVER ASSEMBLY Throttle |
1 | discontinued |
| 26 | F10246 |
ПРУЖИНА Соединительная муфта вала дроссельной заслонки SPRING Throttle Shaft Return |
1 | |
| 27 | F10248 |
ЗАСЛОНКА Throttle SHUTTER Throttle |
1 | discontinued |
| 28 | F10328 |
ВИНТ Shutter SCREW Shutter |
1 | superseded |
| 29 | FO10571 |
ВИНТ Idle Speed SCREW Idle Speed |
1 | discontinued |
| 3 | F10235 |
ТРУБА By Pass TUBE By Pass |
1 | discontinued |
| 30 | F10337 |
ВОДОМЕТНЫЙ Main (.041) (0 - 2500 Ft.) JET Main (.041) (0 - 2500 Ft.) |
1 | discontinued |
| 30 | 2407 |
ВОДОМЕТНЫЙ Главн. топл. (0.039) Main (.039) (2500 - 5000 Ft.) JET Main Fuel (.039) Main (.039) (2500 - 5000 Ft.) |
OPT | discontinued |
| 30 | F10342 |
ВОДОМЕТНЫЙ Main (.037) (5000 - 7500 Ft.) JET Main (.037) (5000 - 7500 Ft.) |
OPT | discontinued |
| 30 | F10341 |
ВОДОМЕТНЫЙ Main (.035) (7500 - 10000 Ft.) JET Main (.035) (7500 - 10000 Ft.) |
OPT | discontinued |
| 31 | F18906 |
ПРОКЛАДКА Карбюратор Flange GASKET Carburetor Flange |
1 | |
| 4 | FO4784 |
ШАРИК Choke Friction Spring BALL Choke Friction Spring |
1 | discontinued |
| 5 | FO8805 |
ПРУЖИНА Трение пускового обогатителя SPRING Choke Friction |
1 | discontinued |
| 6 | FO15736 |
ВАЛ/РЫЧАГ В СБОРЕ Обогатитель SHAFT/LEVER ASSEMBLY Choke |
1 | discontinued |
| 7 | FO15367 |
ЗАСЛОНКА Choke SHUTTER Choke |
1 | discontinued |
| 8 | FO10280 |
ВИНТ Shutter SCREW Shutter |
1 | superseded |
| 9 | FO2531 |
ПРОБКА Перепускная камера Welch PLUG By Pass Chamber Welch |
1 | superseded |
