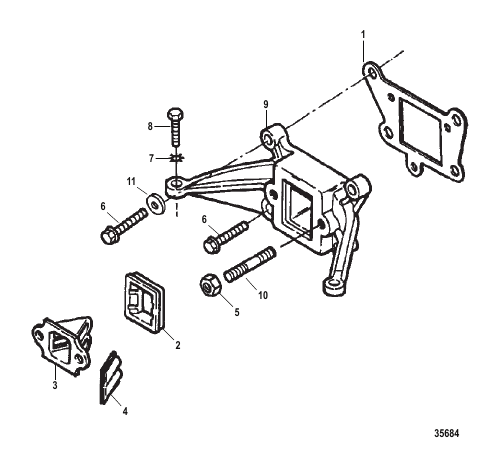

INTAKE SYSTEM
Parts (13)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | FG10341 |
КОМПЛЕКТ ПРОКЛАДОК Powerhead GASKET SET Powerhead |
1 | |
| - | 819854A5 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY |
1 | discontinued |
| 1 | F521168 |
ПРОКЛАДКА Carburetor Adapter GASKET Carburetor Adapter |
1 | discontinued |
| 10 | 826625 |
ШПИЛЬКА (.250-20 x 1.130) With Dri Lok STUD (.250-20 x 1.130) With Dri Lok |
2 | discontinued |
| 11 | 18678 |
ШАЙБА WASHER |
2 | discontinued |
| 2 | F712504 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Reed Plate GROMMET Reed Plate |
1 | discontinued |
| 3 | 819677 |
ПЛАСТИНА Reed PLATE Reed |
1 | discontinued |
| 4 | F31160-2 |
ПЛАСТИНЧАТЫЙ КЛАПАН REED |
2 | discontinued |
| 5 | 20890 |
ГАЙКА (0.250-20) NUT (.250-20) |
2 | |
| 6 | 819110100 |
ВИНТ (0.250-20 x 1.00) SCREW (.250-20 x 1.00) |
4 | discontinued |
| 7 | F8060 |
СТОПОРНАЯ ШАЙБА (.250 External) LOCKWASHER (.250 External) |
2 | discontinued |
| 8 | F2008 |
ВИНТ (0.250-20 x 0.875) SCREW (.250-20 x .875) |
2 | discontinued |
| 9 | F712167T |
ADAPTER Carburetor (Painted) ADAPTER Carburetor (Painted) |
1 | superseded |
