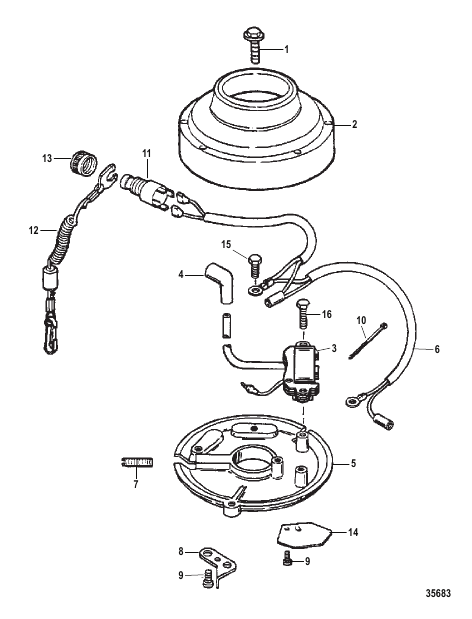

IGNITION SYSTEM
Parts (16)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | F521552 |
ВИНТ Flywheel SCREW Flywheel |
1 | discontinued |
| 10 | 56762 |
ЛЕНТОЧНЫЙ ХОМУТ (4.00") TIE STRAP (4.00 Inches) |
AR | |
| 11 | F687287 |
ПЕРЕКЛЮЧАТЕЛЬ Emergency Stop SWITCH Emergency Stop |
1 | discontinued |
| 12 | 819399A1 |
ТАЛРЕП В СБОРЕ Emergency Stop LANYARD ASSEMBLY Emergency Stop |
1 | superseded |
| 13 | 855594 |
ГАЙКА (Special)-Stop Switch Sleeve NUT (Special)-Stop Switch Sleeve |
1 | discontinued |
| 14 | F712192 |
КУЛАЧОК Throttle CAM Throttle |
1 | discontinued |
| 15 | 824352 |
ВИНТ (№10-24 x 0.375) (#10-24 x .375) SCREW (#10-24 x .375) (#10-24 x .375) |
1 | discontinued |
| 16 | 824353 |
ВИНТ (#8-32 x .750) SCREW (#8-32 x .750) |
3 | discontinued |
| 2 | 819363T |
FLYWHEEL (Painted) FLYWHEEL (Painted) |
1 | superseded |
| 3 | 850899T |
МОДУЛЬ Зажигание Cut Wire as Required MODULE Ignition Cut Wire as Required |
1 | discontinued |
| 4 | 63709A1 |
КОМПЛЕКТ ЧЕХЛА/КЛЕММ Spark Plug BOOT/TERMINAL KIT Spark Plug |
1 | |
| 5 | 819345A2 |
ПЛАСТИНА В СБОРЕ Stator PLATE ASSEMBLY Stator |
1 | discontinued |
| 6 | 824486A2 |
КАБЕЛЬ В СБОРЕ Stop CABLE ASSEMBLY Stop |
1 | discontinued |
| 7 | 824678 |
ВИНТ Friction SCREW Friction |
1 | discontinued |
| 8 | F702505 |
СТОП High Speed STOP High Speed |
1 | discontinued |
| 9 | 34939 |
ВИНТ (0.250-20 x 0.500) SCREW (.250-20 x .500) |
2 | discontinued |
