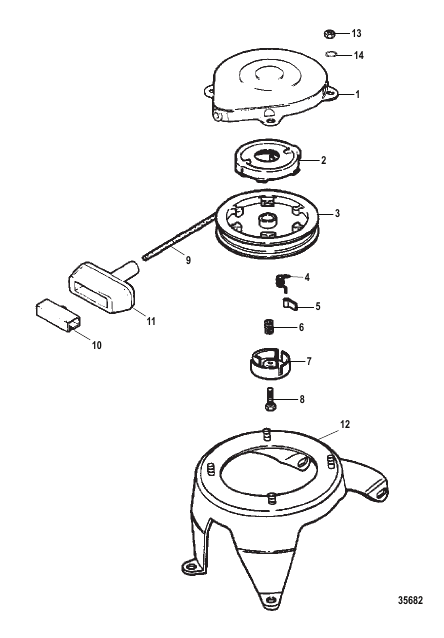

STARTER ASSEMBLY
Parts (14)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | F687063 |
СТАРТЕР В СБОРЕ Перемотка STARTER ASSEMBLY Rewind |
1 | discontinued |
| 10 | F620817 |
ФИКСАТОР Starter Rope RETAINER Starter Rope |
1 | discontinued |
| 11 | F620132 |
РУКОЯТКА Starter Rope HANDLE Starter Rope |
1 | discontinued |
| 12 | F702427 |
КРОНШТЕЙН Starter Mount BRACKET Starter Mount |
1 | superseded |
| 13 | 64015 |
ГАЙКА (0.250-20) NUT (.250-20) |
4 | |
| 14 | 21272 |
СТОПОРНАЯ ШАЙБА (0.250) (Internal) LOCKWASHER (.250) (Internal) |
4 | |
| 2 | F15584 |
ПРУЖИНА И КОНТРГАЙКА SPRING AND KEEPER |
1 | discontinued |
| 3 | F15606 |
ШКИВ В СБОРЕ (With Bearing) PULLEY ASSEMBLY (With Bearing) |
1 | discontinued |
| 4 | F15605 |
ПРУЖИНА Dog SPRING Dog |
3 | discontinued |
| 5 | F250421 |
ЗАЖИМ DOG |
3 | discontinued |
| 6 | F250003 |
ПРУЖИНА SPRING |
1 | discontinued |
| 7 | F15604 |
ФИКСАТОР Dog RETAINER Dog |
1 | discontinued |
| 8 | F15615 |
ВИНТ SCREW |
1 | discontinued |
| 9 | F15585 |
ТРОС Starter ROPE Starter |
1 | discontinued |
