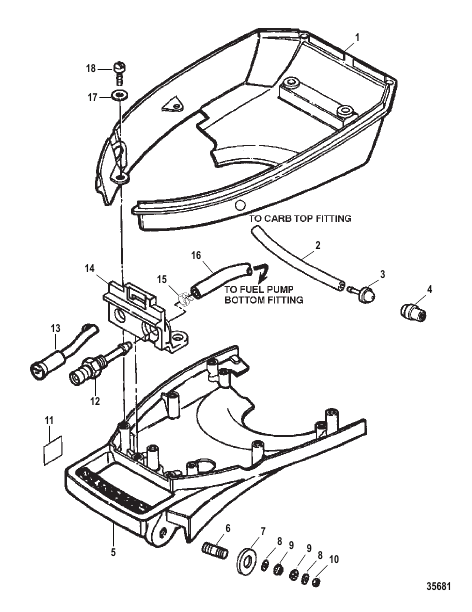

BOTTOM COWL AND SUPPORT PLATE
Parts (18)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 820432T1 |
КАРТЕР Нижняя часть (Painted) COWL Bottom (Painted) |
1 | discontinued |
| 10- | F1756 |
ГАЙКА (.375-16) NUT (.375-16) |
1 | discontinued |
| 11- | 8180291 |
НАКЛЕЙКА Топливный баланс DECAL Fuel Mix |
1 | discontinued |
| 12 | F197767-2 |
ВТУЛКА Топливо Fuel BUSHING Fuel Fuel |
1 | |
| 13 | F6875471 |
РУЧКА Choke-Warm UP KNOB Choke-Warm UP |
1 | |
| 14 | F687163T |
КРЫШКА Front COVER Front |
1 | discontinued |
| 15 | 56762 |
ЛЕНТОЧНЫЙ ХОМУТ (4.00") TIE STRAP (4.00 Inches) |
AR | |
| 16- | 819398T |
РУКАВ Fuel (Cut 6.120 In.) HOSE Fuel (Cut 6.120 In.) |
1 | |
| 17 | 35044 |
ШАЙБА (0.281 x 0.625 x 0.065), нержавеющая сталь WASHER (.281 x .625 x .065) Stainless Steel |
6 | |
| 18 | F1035 |
ВИНТ (.250-20 x .625) SCREW (.250-20 x .625) |
6 | discontinued |
| 2 | 819398T |
РУКАВ Fuel (Cut 12.00 In.) HOSE Fuel (Cut 12.00 In.) |
1 | |
| 3 | F681046 |
ЛАМПА Устройство для заливки топлива BULB Primer |
1 | |
| 4 | 851934 |
КРЫШКА Подкачивающая груша COVER Primer Bulb |
1 | discontinued |
| 5 | F687038T1 |
ПЛАСТИНА Support (Painted) PLATE Support (Painted) |
1 | discontinued |
| 6 | 827618 |
ШПИЛЬКА Steering Handle STUD Steering Handle |
1 | discontinued |
| 7 | F286286-1 |
ШАЙБА WASHER |
1 | discontinued |
| 8- | F8015 |
ШАЙБА WASHER |
2 | discontinued |
| 9- | F521319 |
ВТУЛКА BUSHING |
2 | discontinued |
