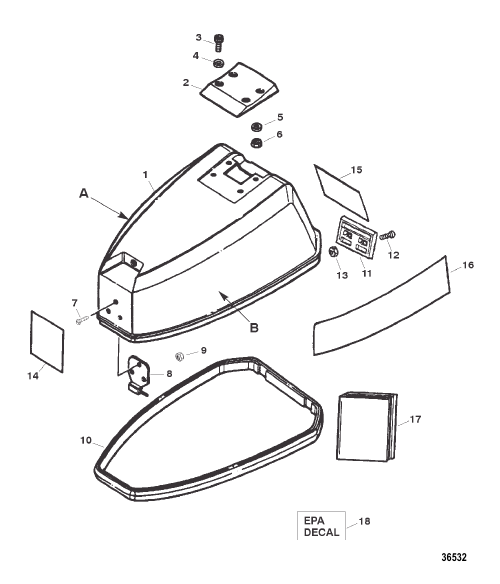

TOP COWL ASSEMBLY
Parts (20)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 820190A9 |
TOP COWL ASSEMBLY (Painted) (WITH DECALS) TOP COWL ASSEMBLY (Painted) (WITH DECALS) |
1 | discontinued |
| 1 | 820190A8 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (Painted) (WITHOUT DECALS) TOP COWL ASSEMBLY (Painted) (WITHOUT DECALS) |
1 | discontinued |
| 10 | FK525713 |
КОМПЛЕКТ ДЛЯ УПАКОВКИ (4.00 Ft. Bulk) (Cut 3.422 Ft.) PACKING KIT (4.00 Ft. Bulk) (Cut 3.422 Ft.) |
1 | discontinued |
| 11 | 820474A1 |
КОМПЛЕКТ ЗАЩЕЛКИ Rear LATCH KIT Rear |
1 | discontinued |
| 12 | 59771 |
ВИНТ (№10-32 x 0.750) SCREW (#10-32 x .750) |
2 | discontinued |
| 13 | 90078 |
ГАЙКА (№10-32) NUT (#10-32) |
2 | discontinued |
| 14 | 8263414 |
DECAL (FRONT)-Starting Instructions DECAL (FRONT)-Starting Instructions |
1 | discontinued |
| 15 | 82634111 |
DECAL (REAR) DECAL (REAR) |
1 | discontinued |
| 16 | 82634110 |
DECAL (PORT) DECAL (PORT) |
1 | discontinued |
| 16 | 8263419 |
DECAL (STARBOARD) DECAL (STARBOARD) |
1 | discontinued |
| 17 | 855475 |
PARTS MANUAL Gamefisher 5 H.P. (1998) PARTS MANUAL Gamefisher 5 H.P. (1998) |
1 | |
| 18 | 85557735 |
DECAL EPA Label Information (Applied To The Inside Of The Top Cowl) DECAL EPA Label Information (Applied To The Inside Of The Top Cowl) |
1 | discontinued |
| 2 | F681269 |
РУКОЯТКА Наклон HANDLE Tilt |
1 | discontinued |
| 3 | F2211 |
ВИНТ (№10-24 x 0.625), нержавеющая сталь SCREW (#10-24 x .625) Stainless Steel |
4 | |
| 4 | 89302 |
ШАЙБА (0.203 x 0.406 x 0.040) WASHER (.203 x .406 x .040) |
4 | |
| 5 | F8143 |
ШАЙБА WASHER |
4 | discontinued |
| 6 | F7009 |
ГАЙКА (№10-24) NUT (#10-24) |
4 | discontinued |
| 7 | 41772 |
ВИНТ (№10-24 x 0.500) SCREW (#10-24 x .500) |
3 | discontinued |
| 8 | F702783 |
ФИКСАТОР Front RETAINER Front |
1 | discontinued |
| 9 | F7011 |
ГАЙКА (10-24) (#10-24) NUT (10-24) (#10-24) |
3 | superseded |
