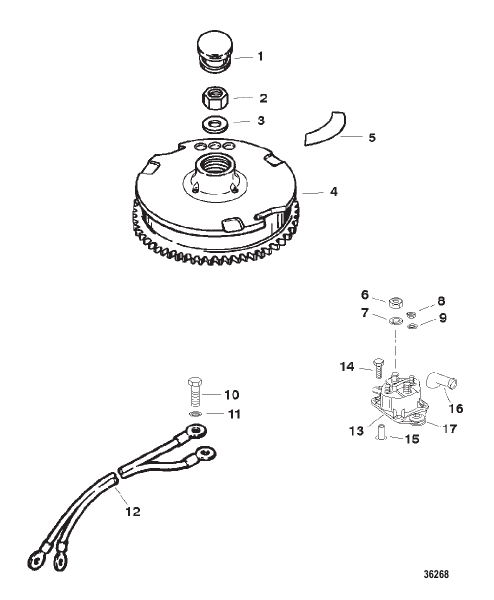

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
45907 |
PLUG Yellow Crankshaft/Flywheel
|
1 |
|
| 10 |
39349 |
SCREW (.312-18 x .750) Stainless Steel Ground
|
1 |
|
| 11 |
53166 |
LOCKWASHER (.312) Ground
|
1 |
|
| 12 |
F3818964 |
CABLE ASSEMBLY Battery
|
1 |
|
| 13 |
817109A3 |
SOLENOID KIT Starter
|
1 |
|
| 14 |
853652 |
SCREW (.250-20 x 1.125)
|
2 |
|
| 15 |
818968 |
BUSHING
|
2 |
superseded
|
| 16 |
830233 |
BOOT Insulator - Red
|
1 |
|
| 17 |
822179 |
GROMMET
|
2 |
|
| 2 |
42979 |
NUT (M16)
|
1 |
|
| 3 |
68229 |
WASHER (.641 x 1.250 x .190)
|
1 |
superseded
|
| 4 |
9008A54 |
FLYWHEEL ASSEMBLY
|
1 |
superseded
|
| 5 |
825149A1 |
DECAL KIT Shift To Neutral
|
1 |
disc.
|
| 6 |
68292 |
NUT (.312-18)
|
2 |
superseded
|
| 7 |
53166 |
LOCKWASHER (.312)
|
2 |
|
| 8 |
68219 |
NUT (#10-32) Stainless Steel
|
2 |
|
| 9 |
26996 |
LOCKWASHER (#10) Stainless Steel
|
2 |
|
