| # | Part Number | Description | Qty | Status |
|---|
| 1 |
817940A7 |

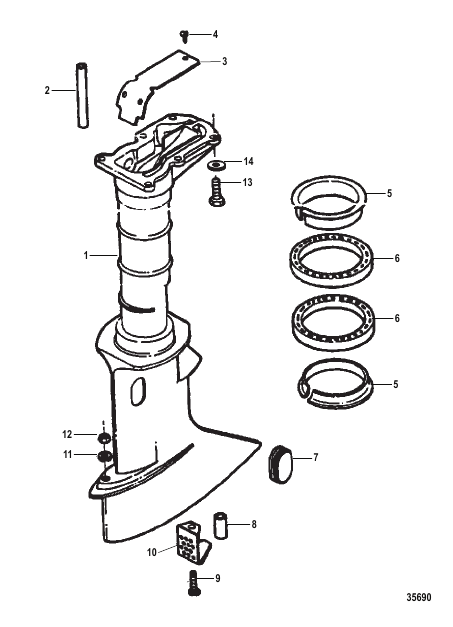

HOUSING ASSEMBLY Driveshaft (Painted)
|
1 |
disc.
|
| 10 |
F521779 |
BAFFLE Idle Relief
|
1 |
disc.
|
| 11 |
26992 |
LOCKWASHER (.250) Stainless Steel
|
1 |
|
| 12 |
64015 |
NUT (.250-20) TORQUE 50 LB. IN. 5.6 N-M
|
1 |
|
| 13 |
F1914 |
SCREW (.250-20 x .750) TORQUE 70 LB. IN. 7.8 N-M
|
6 |
disc.
|
| 14 |
22937 |
WASHER
|
6 |
|
| 2 |
F521261 |
LINE Water Outlet
|
1 |
disc.
|
| 3 |
FA341151 |
PLATE KIT Exhaust
|
1 |
disc.
|
| 4 |
69080 |
SCREW (#6-32 x .250) TORQUE 9 LB. IN. .98 N-M
|
3 |
disc.
|
| 5 |
F468169-1 |
BEARING Swivel Bracket
|
2 |
disc.
|
| 6 |
FA468346 |
MOUNT KIT Shock Lower
|
2 |
superseded
|
| 7 |
F46899-1 |
COVER
|
1 |
disc.
|
| 8 |
F521727 |
SLEEVE Idle Baffle
|
1 |
disc.
|
| 9 |
F1747 |
SCREW (#10-24 x 1.687) TORQUE 30 LB. IN. 3.3 N-M
|
1 |
disc.
|
