| # | Part Number | Description | Qty | Status |
|---|
| 1 |
F687063 |

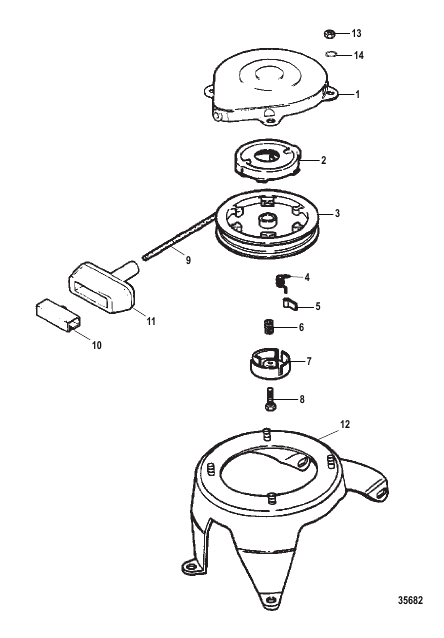

STARTER ASSEMBLY Rewind
|
1 |
disc.
|
| 10 |
F620817 |
RETAINER Starter Rope
|
1 |
disc.
|
| 11 |
F620132 |
HANDLE Starter Rope
|
1 |
disc.
|
| 12 |
F702427 |
BRACKET Starter Mount
|
1 |
superseded
|
| 13 |
64015 |
NUT (.250-20) TORQUE 70 LB. IN. 7.8 N-M
|
4 |
|
| 14 |
21272 |
LOCKWASHER (.250)
|
4 |
|
| 2 |
F15584 |
SPRING AND KEEPER
|
1 |
disc.
|
| 3 |
F15606 |
PULLEY ASSEMBLY (With Bearing)
|
1 |
disc.
|
| 4 |
F15605 |
SPRING Dog
|
3 |
disc.
|
| 5 |
F250421 |
DOG
|
3 |
disc.
|
| 6 |
F250003 |
SPRING
|
1 |
disc.
|
| 7 |
F15604 |
RETAINER Dog
|
1 |
disc.
|
| 8 |
F15615 |
SCREW
|
1 |
disc.
|
| 9 |
F15585 |
ROPE Starter
|
1 |
disc.
|
