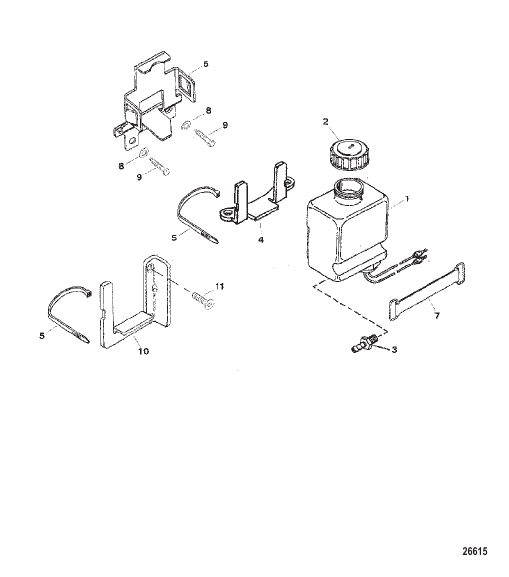

Oil Reservoir Bottle
Parts (11)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 806193A3 |
РЕЗЕРВУАР В СБОРЕ Масло RESERVOIR ASSEMBLY Oil |
1 | superseded |
| 10 | 848888 |
КРОНШТЕЙН Крепление резервуара [0K000012] THRU [0L415623] BRACKET Reservoir Mount [0K000012] THRU [0L415623] |
1 | discontinued |
| 11 | 848889 |
ВИНТ (0.250-20 x 0.500) [0K000012] THRU [0L415623] SCREW (.250-20 x .500) [0K000012] THRU [0L415623] |
2 | discontinued |
| 2 | 808625 |
ПРОБКА Монитор смазки привода CAP Drive Lube Monitor |
1 | superseded |
| 3 | 808624 |
СОЕДИНИТЕЛЬ CONNECTOR |
1 | |
| 4 | 848406 |
КРОНШТЕЙН Крепление резервуара [0F745260] THRU [0F877734] BRACKET Reservoir Mount [0F745260] THRU [0F877734] |
1 | discontinued |
| 5 | 77054 |
ЛЕНТОЧНЫЙ ХОМУТ (14.50") TIE STRAP (14.50 Inches) |
1 | |
| 6 | 860065A1 |
КОМПЛЕКТ КРОНШТЕЙНА Масляный бачок – удаленное крепление [0K000012] THRU [0L415623] BRACKET KIT Oil Bottle - Remote Mounting [0K000012] THRU [0L415623] |
1 | |
| 7 | 808023T |
СКОБА Кронштейн – стопорный [0K000012] THRU [0L415623] STRAP Bracket - Retaining [0K000012] THRU [0L415623] |
1 | |
| 8 | 69057 |
ШАЙБА (0.281 x 0.734 x 0.063) [0K000012] THRU [0L415623] WASHER (.281 x .734 x .063) [0K000012] THRU [0L415623] |
2 | |
| 9 | 59784 |
ВИНТ (0.250-10 x 1.00) [0K000012] THRU [0L415623] SCREW (.250-10 x 1.00) [0K000012] THRU [0L415623] |
2 |
