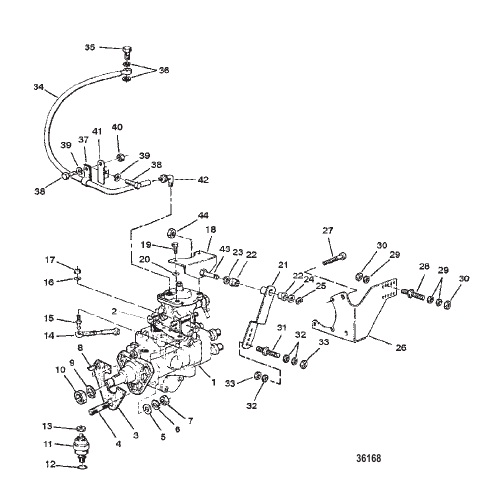

INJECTION PUMP
Parts (45)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 822570A1 |
КОМПЛЕКТ ПРОКЛАДОК Капитальный ремонт GASKET SET Overhaul |
1 | discontinued |
| 1 | 816550 |
НАСОС Инжекторный PUMP Injection |
1 | discontinued |
| 10 | 809922133 |
ГАЙКА (M12) NUT (M12) |
1 | discontinued |
| 11 | 801763585 |
КЛАПАН Выключение подачи топлива VALVE Fuel Shut Off |
1 | discontinued |
| 12 | 801761168 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 13 | 809922038 |
ГАЙКА NUT |
1 | discontinued |
| 14 | 801333856 |
КОМПЛЕКТ ШТОКА Соединитель ROD KIT Link |
1 | discontinued |
| 15 | 809987302 |
ШТИФТ PIN |
1 | discontinued |
| 16 | 809931036 |
ШАЙБА WASHER |
1 | discontinued |
| 17 | 809922410 |
ГАЙКА NUT |
1 | |
| 18 | 801761674 |
ПОДШИПНИК Угол BEARING Angle |
1 | discontinued |
| 19 | 809913466 |
ВИНТ (M6 x 16) SCREW (M6 x 16) |
2 | discontinued |
| 2 | 801763618 |
РЫЧАГ LEVER |
1 | discontinued |
| 20 | 809931652 |
ШАЙБА WASHER |
2 | discontinued |
| 21 | 801763525 |
РЫЧАГ LEVER |
1 | discontinued |
| 22 | 801256320 |
ВТУЛКА BUSHING |
2 | discontinued |
| 23 | 811460 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | |
| 24 | 809932646 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 25 | 809932852 |
Е-ОБРАЗНЫЙ ЗАЖИМ E CLIP |
1 | discontinued |
| 26 | 801763441 |
УГОЛ Опора ANGLE Support |
1 | discontinued |
| 27 | 801761847 |
ВИНТ SCREW |
2 | discontinued |
| 28 | 38525 |
ШПИЛЬКА STUD |
1 | |
| 29 | 24664 |
ШАЙБА (M4 x 20) WASHER (M4 x 20) |
2 | |
| 3 | 801765017 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 30 | 35888 |
ГАЙКА (0.250-28), нержавеющая сталь NUT (.250-28) Stainless Steel |
2 | |
| 31 | 96112 |
ШПИЛЬКА (0.250-28 x 2.00) Якорь троса газа STUD (.250-28 x 2.00) Throttle Cable Anchor |
1 | superseded |
| 32 | 24664 |
ШАЙБА (M4 x 20) WASHER (M4 x 20) |
2 | |
| 33 | 35888 |
ГАЙКА (0.250-28), нержавеющая сталь NUT (.250-28) Stainless Steel |
2 | |
| 34 | 801763467 |
ТРУБА Давление нагнетания TUBE Boost Pressure |
1 | discontinued |
| 35 | 801333874 |
ВИНТ Кожух (M10) SCREW Banjo (M10) |
1 | |
| 36 | 809963072 |
ШАЙБА WASHER |
2 | superseded |
| 37 | 801761758 |
ЗАЖИМ CLAMP |
1 | discontinued |
| 38 | 809913218 |
ВИНТ (M5 x 10) SCREW (M5 x 10) |
2 | discontinued |
| 39 | 809932047 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 4 | 801333870 |
ШПИЛЬКА STUD |
3 | discontinued |
| 40 | 809922038 |
ГАЙКА NUT |
1 | discontinued |
| 41 | 801761757 |
ОПОРА SUPPORT |
1 | discontinued |
| 42 | 801333873 |
СОЕДИНИТЕЛЬ CONNECTOR |
1 | discontinued |
| 43 | 801329200 |
ВИНТ SCREW |
1 | |
| 44 | 815088 |
ГАЙКА (M8) NUT (M8) |
1 | superseded |
| 5 | 801333871 |
ШАЙБА WASHER |
3 | discontinued |
| 6 | 809930840 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
3 | superseded |
| 7 | 801331756 |
ГАЙКА NUT |
3 | discontinued |
| 8 | 801331225 |
КЛЮЧ KEY |
1 | discontinued |
| 9 | 809933127 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
