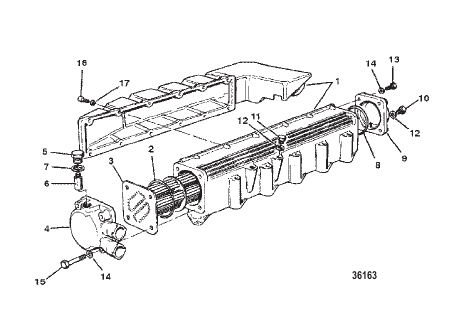

AIR COOLER
Parts (18)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 822570A1 |
КОМПЛЕКТ ПРОКЛАДОК Капитальный ремонт GASKET SET Overhaul |
1 | discontinued |
| 1 | 801763457 |
ОХЛАДИТЕЛЬ Воздух COOLER Air |
1 | superseded |
| 10 | 801763459 |
ВИНТ SCREW |
1 | discontinued |
| 11 | 809919217 |
ВИНТ SCREW |
1 | discontinued |
| 12 | 809963072 |
ШАЙБА WASHER |
2 | superseded |
| 13 | 809913662 |
ВИНТ SCREW |
6 | discontinued |
| 14 | 811460 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
6 | |
| 15 | 809912516 |
ВИНТ (M8 x 50) SCREW (M8 x 50) |
2 | discontinued |
| 16 | 809919967 |
ВИНТ SCREW |
12 | discontinued |
| 17 | 809932071 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
12 | superseded |
| 2 | 801763461 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
4 | discontinued |
| 3 | 801761367 |
РАДИАТОРНАЯ ВСТАВКА RADIATOR INSERT |
1 | discontinued |
| 4 | 801761360 |
КРЫШКА Передний COVER Front |
1 | discontinued |
| 5 | 811487 |
ПРОБКА Узел анода PLUG Anode Assembly |
1 | discontinued |
| 6 | 816000 |
АНОД ANODE |
1 | discontinued |
| 7 | 809963308 |
ШАЙБА Уплотнение WASHER Sealing |
1 | discontinued |
| 8 | 801763461 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 9 | 801763463 |
КРЫШКА Задний COVER Rear |
1 | discontinued |
