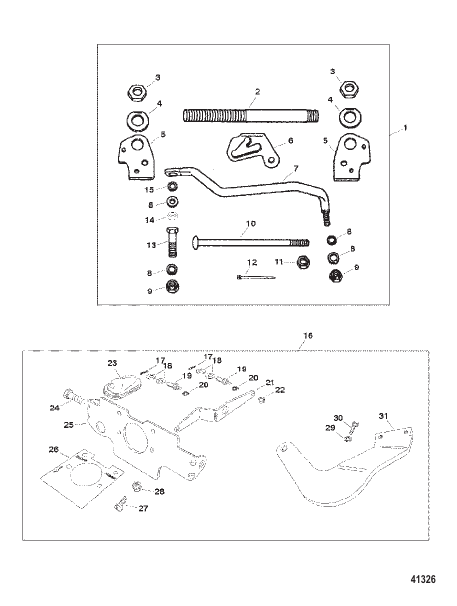

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
827889A2 |
STEERING KIT Remote
|
1 |
disc.
|
| 10 |
850185 |
BOLT Pivot - Stern Bracket (.375-16 X 7.375)
|
1 |
|
| 11 |
F7026 |
NUT (.375-16) (.375-16)
|
1 |
disc.
|
| 12 |
816311 |
TIE STRAP (8.00 Inches)
|
1 |
superseded
|
| 13 |
90072 |
SCREW (.375-24 x 1.750)
|
1 |
|
| 14 |
F522359 |
SPACER
|
1 |
disc.
|
| 15 |
F84215 |
SPACER
|
1 |
disc.
|
| 16 |
830771A2 |
CONVERSION KIT Remote Control (MERCURY)
|
1 |
superseded
|
| 16 |
830771A3 |
CONVERSION KIT Remote Control (MARINER)
|
1 |
superseded
|
| 17 |
27769 |
COTTER PIN
|
2 |
superseded
|
| 18 |
35462 |
WASHER (.2656 x .625 x .0625) Stainless Steel
|
4 |
|
| 19 |
828819 |
STUD Throttle Control
|
2 |
disc.
|
| 2 |
71565 |
TUBE Cable Guide
|
1 |
|
| 20 |
F8058 |
LOCKWASHER Internal (#10)
|
2 |
disc.
|
| 21 |
8191481 |
LEVER Throttle
|
1 |
disc.
|
| 22 |
29488 |
NUT (#10-32)
|
1 |
superseded
|
| 23 |
93527 |
GROMMET
|
1 |
superseded
|
| 24 |
830772 |
SCREW (SPECIAL)
|
2 |
disc.
|
| 25 |
830058A4 |
ANCHOR ASSEMBLY Remote Steering Cable (MERCURY)
|
1 |
superseded
|
| 25 |
830058A5 |
ANCHOR ASSEMBLY Remote Steering Cable (MARINER)
|
1 |
superseded
|
| 26 |
8192812 |
DECAL Front Plate
|
1 |
disc.
|
| 27 |
F1733 |
SCREW (#10-24 x .562) SS
|
4 |
superseded
|
| 28 |
F7009 |
NUT (#10-24)
|
4 |
disc.
|
| 29 |
72521 |
LOCKWASHER Internal Tooth
|
2 |
|
| 3 |
37984 |
NUT (.875-14)
|
2 |
superseded
|
| 30 |
38837 |
SCREW (.312-18 x 1.12)
|
2 |
|
| 31 |
830006T2 |
ARM Remote Steering (MERCURY)
|
1 |
disc.
|
| 31 |
830006T3 |
ARM Remote Steering (MARINER)
|
1 |
disc.
|
| 4 |
42100 |
TAB WASHER
|
2 |
|
| 5 |
827890 |
BRACKET Cable Tube
|
2 |
disc.
|
| 6 |
F676541-2 |
LOCK Tilt
|
1 |
disc.
|
| 7 |
F676881 |
LINK Steering
|
1 |
superseded
|
| 8 |
37828 |
WASHER (.390 x .625 x .062) Stainless Steel
|
4 |
|
| 9 |
34863 |
NUT (.375-24)
|
2 |
superseded
|
