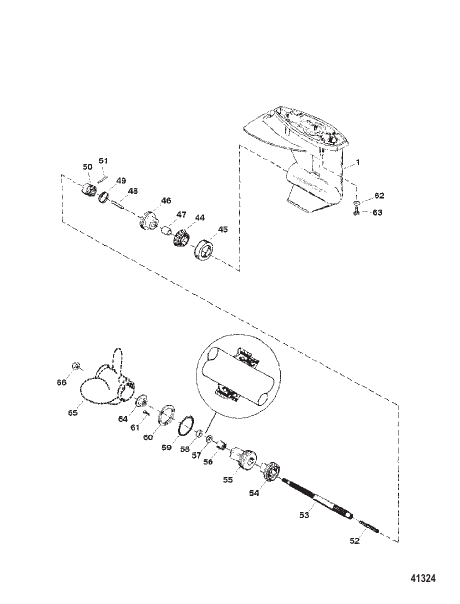

| # | Part Number | Description | Qty | Status |
|---|
| - |
85090A2 |
SEAL KIT
|
1 |
|
| 1 |
8669A35 |
GEAR HOUSING ASSEMBLY (15 IN. SHORT) (COMPLETE) (MERCURY)
|
1 |
disc.
|
| 1 |
8669A36 |
GEAR HOUSING ASSEMBLY (15 IN. SHORT) (COMPLETE) (MARINER)
|
1 |
disc.
|
| 1 |
8669A37 |
GEAR HOUSING ASSEMBLY (20 IN. LONG) (COMPLETE) (MERCURY)
|
1 |
disc.
|
| 1 |
8669A38 |
GEAR HOUSING ASSEMBLY (20 IN. LONG) (COMPLETE) (MARINER)
|
1 |
disc.
|
| 1 |
8669A21 |
GEAR HOUSING ASSEMBLY Basic-Black
|
1 |
superseded
|
| 1 |
8669A22 |
GEAR HOUSING ASSEMBLY Basic-Gray
|
1 |
disc.
|
| 44 |
99328A1 |
BEARING ASSEMBLY Roller (CONE & CUP)
|
1 |
superseded
|
| 45 |
NSS |
NOT SOLD SEPARATE CUP
|
1 |
|
| 46 |
44213A1 |
GEAR ASSEMBLY Forward
|
1 |
superseded
|
| 47 |
85557 |
BUSHING
|
1 |
|
| 48 |
85094 |
FOLLOWER Cam
|
1 |
|
| 49 |
38114 |
SPRING
|
1 |
|
| 50 |
410401 |
CLUTCH
|
1 |
superseded
|
| 51 |
85093 |
PIN
|
1 |
superseded
|
| 52 |
88680 |
SPRING
|
1 |
disc.
|
| 53 |
8166231 |
PROPELLER SHAFT
|
1 |
|
| 54 |
99542 |
GEAR Reverse
|
1 |
superseded
|
| 55 |
99906A1 |
CARRIER ASSEMBLY Bearing
|
1 |
superseded
|
| 56 |
21739 |
BEARING Roller
|
1 |
|
| 57 |
41132 |
SEAL Oil (INNER)
|
1 |
|
| 58 |
41131 |
SEAL Oil (OUTER)
|
1 |
|
| 59 |
85549 |
O-RING
|
1 |
|
| 60 |
87293 |
PLATE
|
1 |
|
| 61 |
90883 |
SCREW (M5 x 16)
|
3 |
|
| 62 |
45175 |
WASHER (.406 x .750 x .104)
|
4 |
superseded
|
| 63 |
65210 |
SCREW (.375-16 x 1.00)
|
4 |
|
| 64 |
8M0027793 |
HUB
|
1 |
superseded
|
| 65 |
19640A40 |
BLACK MAX PROPELLER (ALUM-10.375 X 13.0 RH) (BLACK MAX)
|
1 |
|
| 65 |
19642A40 |
PROPELLER (ALUM-10.250 X 14.5 RH) (BLACK MAX)
|
OPT |
|
| 65 |
19639A40 |
BLACK MAX PROPELLER (ALUM-10.375 X 12.0 RH) (BLACK MAX)
|
OPT |
|
| 65 |
19638A40 |
BLACK MAX PROPELLER (ALUM-10.375 X 11.0 RH) (BLACK MAX)
|
OPT |
|
| 65 |
19636A10 |
BLACK MAX PROPELLER (ALUM-10.375 X 9.50 RH) (BLACK MAX)
|
OPT |
|
| 65 |
43592A5 |
PROPELLER (SS-10.375 X 18.0 RH) (CHOPPER)
|
OPT |
superseded
|
| 65 |
19644A5 |
VENGEANCE PROPELLER (SS-10.375 X 13.0 RH) (VENGEANCE)
|
OPT |
disc.
|
| 66 |
4011912 |
PROP NUT (M12 BRASS)-FOR SS PROPELLERS
|
OPT |
disc.
|
| 66 |
88228 |
PROP NUT (M12 NYLON)-FOR ALUM PROPELLERS
|
1 |
|
