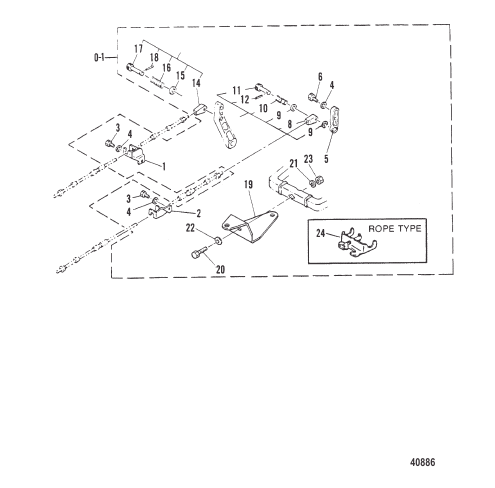

REMOTE CONTROL ATTACHING KIT
Parts (27)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 0-1 | 91633M |
КОМПЛЕКТ КРЕПЕЖА [M-007186/ML-308701/E-101516/EL-404001] & Up ATTACHING KIT [M-007186/ML-308701/E-101516/EL-404001] & Up |
1 | superseded |
| 0-1 | 82830M |
КОМПЛЕКТ КРЕПЕЖА [M-007185/ML-308700/E-101515/EL-404000] & Below ATTACHING KIT [M-007185/ML-308700/E-101515/EL-404000] & Below |
1 | superseded |
| 1 | 84221M |
КРОНШТЕЙН ПЕРЕКЛЮЧЕНИЕ РЕВЕРСА BRACKET GEAR SHIFT |
1 | discontinued |
| 10 | 83725M |
ПРУЖИНА SPRING |
1 | discontinued |
| 11 | 83726M |
КРЮК HOOK |
1 | superseded |
| 12 | 82146M |
ШТИФТ РОЛИК PIN ROLL |
1 | discontinued |
| 13 | 83719M |
ОКОНЕЧНЫЙ Кабель ПЕРЕКЛЮЧЕНИЕ РЕВЕРСА END Cable SHIFT |
1 | discontinued |
| 14 | 83720M |
ОКОНЕЧНЫЙ Кабель END Cable |
1 | |
| 15 | 82216M |
ШАЙБА WASHER |
1 | discontinued |
| 16 | 83721M |
ПРУЖИНА SPRING |
1 | discontinued |
| 17 | 83722M |
КРЮК HOOK |
1 | superseded |
| 18 | 82146M |
ШТИФТ РОЛИК PIN ROLL |
1 | discontinued |
| 19 | 91635M |
КРОНШТЕЙН РУЛЕВОЙ МЕХАНИЗМ [M-007186/ML-308701/E-101516/EL-404001] & Up BRACKET STEERING [M-007186/ML-308701/E-101516/EL-404001] & Up |
1 | discontinued |
| 19 | 84220M |
КРОНШТЕЙН РУЛЕВОЙ МЕХАНИЗМ [M-007185/ML-308700/E-101515/EL-404000] & Below BRACKET STEERING [M-007185/ML-308700/E-101515/EL-404000] & Below |
1 | superseded |
| 2 | 83717M |
КРОНШТЕЙН ДРОССЕЛЬНАЯ ЗАСЛОНКА BRACKET THROTTLE |
1 | discontinued |
| 20 | 91636M |
БОЛТ BOLT |
1 | discontinued |
| 21 | 82218M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 22 | 82220M |
ШАЙБА WASHER |
1 | discontinued |
| 23 | 81785M |
КОНТРГАЙКА [M-010646/ML-311476/E-102356/EL-405456] & Up LOCKNUT [M-010646/ML-311476/E-102356/EL-405456] & Up |
1 | discontinued |
| 23 | 82395M |
ГАЙКА [M-010645/ML-311475/E-102355/EL-405455] & Below NUT [M-010645/ML-311475/E-102355/EL-405455] & Below |
1 | discontinued |
| 3 | 91725M |
БОЛТ BOLT |
2 | superseded |
| 4 | 82214M |
ШАЙБА WASHER |
3 | discontinued |
| 5 | 84222M |
РЫЧАГ Дроссельная заслонка LEVER Throttle |
1 | discontinued |
| 6 | 91772M |
БОЛТ BOLT |
1 | discontinued |
| 7 | 83933M |
ОКОНЕЧНЫЙ Кабель ДРОССЕЛЬНАЯ ЗАСЛОНКА END Cable THROTTLE |
1 | discontinued |
| 8 | 83934M |
ОКОНЕЧНЫЙ Кабель END Cable |
1 | discontinued |
| 9 | 82216M |
ШАЙБА WASHER |
1 | discontinued |
