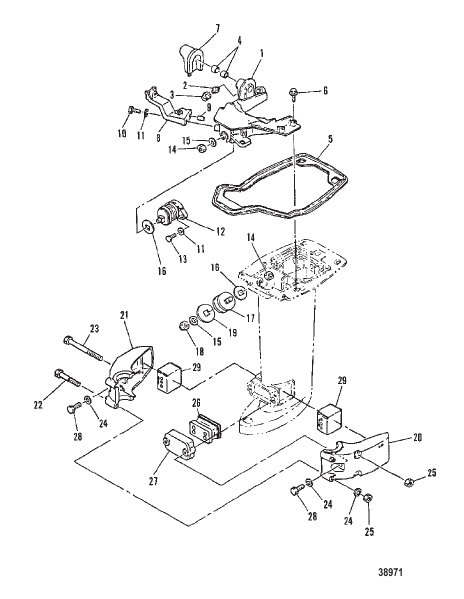

MOUNTING SYSTEM
Parts (31)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 80654M |
КРОНШТЕЙН КРЕПЛЕНИЕ BRACKET MOUNTING |
1 | discontinued |
| 10 | 82451M |
БОЛТ BOLT |
1 | superseded |
| 11 | 82214M |
ШАЙБА WASHER |
3 | discontinued |
| 12 | 84841M |
КРЕПЛЕНИЕ РЕЗИНОВЫЙ – ВЕРХНИЙ, ПЕРЕДНИЙ MOUNT RUBBER - UPPER FRONT |
1 | |
| 13 | 84058M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
2 | |
| 14 | 95207M |
ГАЙКА [M-018821/ML-318387/E-104276/EL-409416] & Up NUT [M-018821/ML-318387/E-104276/EL-409416] & Up |
3 | superseded |
| 14 | 82394M |
ГАЙКА [M-018820/ML-318386/E-104275/EL-409415] & Below NUT [M-018820/ML-318386/E-104275/EL-409415] & Below |
3 | superseded |
| 15 | 82219M |
ШАЙБА WASHER |
3 | discontinued |
| 16 | 80662M |
ПРОКЛАДКА ОПОРА GASKET MOUNT |
3 | discontinued |
| 17 | 82557M |
КРЕПЛЕНИЕ РЕЗИНОВЫЙ – ВЕРХНИЙ, БОКОВОЙ MOUNT RUBBER - UPPER SIDE |
2 | superseded |
| 18 | 82183M |
ГАЙКА NUT |
2 | superseded |
| 19 | 81612M |
ПРОКЛАДКА ОПОРА GASKET MOUNT |
2 | discontinued |
| 2 | 82369M |
ФИТИНГ FITTING |
1 | |
| 20 | 84842M |
КОРПУС НИЖНЯЯ ОПОРА – ЛЕВЫЙ БОРТ HOUSING LOWER MOUNT - PORT |
1 | discontinued |
| 21 | 84843M |
КОРПУС НИЖНЯЯ ОПОРА – ПРАВЫЙ БОРТ HOUSING LOWER MOUNT - STARBOARD |
1 | discontinued |
| 22 | 84844M |
БОЛТ BOLT |
2 | discontinued |
| 23 | 41893M |
БОЛТ [M-010646/ML-311476/E-102356/EL-405456] & Up BOLT [M-010646/ML-311476/E-102356/EL-405456] & Up |
2 | discontinued |
| 23 | 84845M |
БОЛТ [M-010645/ML-311475/E-102355/EL-405455] & Below BOLT [M-010645/ML-311475/E-102355/EL-405455] & Below |
2 | discontinued |
| 24 | 82217M |
ШАЙБА WASHER |
4 | discontinued |
| 25 | 82392M |
ГАЙКА NUT |
4 | superseded |
| 26 | 84846M |
КРЕПЛЕНИЕ РЕЗИНОВЫЙ – НИЖНИЙ, ПЕРЕДНИЙ MOUNT RUBBER - LOWER FRONT |
1 | discontinued |
| 27 | 84847M |
КРЫШКА COVER |
1 | discontinued |
| 28 | 82464M |
БОЛТ BOLT |
2 | superseded |
| 29 | 84848M |
КРЕПЛЕНИЕ РЕЗИНОВЫЙ – НИЖНИЙ, БОКОВОЙ MOUNT RUBBER - LOWER SIDE |
2 | discontinued |
| 3 | 81439M |
ПРОБКА МАСЛЕНКА CAP GREASE FITTING |
1 | discontinued |
| 4 | 81930M |
ВТУЛКА BUSHING |
2 | discontinued |
| 5 | 84838M |
УПЛОТНЕНИЕ НИЖНИЙ КОЖУХ SEAL BOTTOM COWL |
1 | discontinued |
| 6 | 84839M |
БОЛТ BOLT |
4 | discontinued |
| 7 | 84840M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 8 | 80657M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 9 | 82364M |
ШТИФТ Штифт PIN Dowel |
1 | discontinued |
