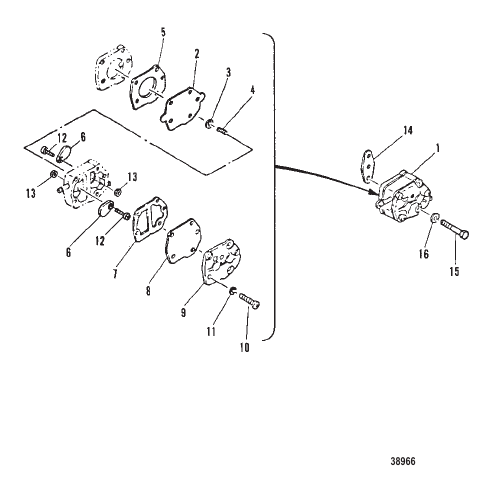

FUEL PUMP
Parts (24)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 96658M |
КОМПЛЕКТ ПРОКЛАДОК СИЛОВАЯ ГОЛОВКА [M-010646/ML-311476/E-102356/EL-405456] & Up GASKET SET POWERHEAD [M-010646/ML-311476/E-102356/EL-405456] & Up |
1 | discontinued |
| - | 84744M |
КОМПЛЕКТ ПРОКЛАДОК СИЛОВАЯ ГОЛОВКА [M-010645/ML-311475/E-102355/EL-405455] & Below GASKET SET POWERHEAD [M-010645/ML-311475/E-102355/EL-405455] & Below |
1 | discontinued |
| 1 | 43113M |
НАСОС В СБОРЕ Топливо [M-018821/NL-318387/E-104276/EL-409416] & Up PUMP ASSEMBLY Fuel [M-018821/NL-318387/E-104276/EL-409416] & Up |
1 | superseded |
| 1 | 94799M |
НАСОС В СБОРЕ Топливо [M-018820/NL-318386/E-104275/EL-409415] & Below PUMP ASSEMBLY Fuel [M-018820/NL-318386/E-104275/EL-409415] & Below |
1 | superseded |
| 10 | 82522M |
ВИНТ SCREW |
3 | discontinued |
| 11 | 82208M |
ШАЙБА ЗАМОК WASHER LOCK |
3 | superseded |
| 12 | 41889M |
ВИНТ (M3 x 5) [M-010646/ML-311476/E-102356/EL-405456] & Up SCREW (M3 x 5) [M-010646/ML-311476/E-102356/EL-405456] & Up |
2 | discontinued |
| 12 | 94801M |
ВИНТ [M-010645/ML-311475/E-102355/EL-405455] & Below SCREW [M-010645/ML-311475/E-102355/EL-405455] & Below |
2 | superseded |
| 13 | 82537M |
ГАЙКА [M-005226/ML-305751/E-101141/EL-403151] & Up NUT [M-005226/ML-305751/E-101141/EL-403151] & Up |
2 | discontinued |
| 14 | 80757M |
ПРОКЛАДКА ТОПЛИВНЫЙ НАСОС GASKET FUEL PUMP |
1 | superseded |
| 15 | 82428M |
БОЛТ BOLT |
2 | superseded |
| 16 | 82199M |
ШАЙБА ЗАМОК WASHER LOCK |
2 | superseded |
| 2 | 80606M |
ДИАФРАГМА DIAPHRAGM |
1 | |
| 3 | 80611M |
ПЛАСТИНА ПРУЖИНА PLATE SPRING |
1 | discontinued |
| 4 | 80610M |
ПРУЖИНА SPRING |
1 | discontinued |
| 5 | 80613M |
ПРОКЛАДКА КОРПУС К ОСНОВАНИЮ GASKET BODY TO BASE |
1 | superseded |
| 6 | 41888M |
ОБРАТНЫЙ КЛАПАН [M-010646/ML-311476/E-102356/EL-405456] & Up CHECK VALVE [M-010646/ML-311476/E-102356/EL-405456] & Up |
2 | |
| 6 | 94800M |
ОБРАТНЫЙ КЛАПАН [M-005226/ML-305751/E-101141/EL-403151] THRU [M-010645/ML-311475/E-102355/EL-405455] CHECK VALVE [M-005226/ML-305751/E-101141/EL-403151] THRU [M-010645/ML-311475/E-102355/EL-405455] |
2 | superseded |
| 6 | 84650M |
ОБРАТНЫЙ КЛАПАН [M-005225/ML-305750/E-101140/EL-403150] & Below CHECK VALVE [M-005225/ML-305750/E-101140/EL-403150] & Below |
2 | discontinued |
| 7 | 43095M |
ПРОКЛАДКА КРЫШКА К КОРПУСУ [M-018821/NL-318387/E-104276/EL-409416] & Up GASKET COVER TO BODY [M-018821/NL-318387/E-104276/EL-409416] & Up |
1 | discontinued |
| 7 | 80614M |
ПРОКЛАДКА КРЫШКА К КОРПУСУ [M-018820/NL-318386/E-104275/EL-409415] & Below GASKET COVER TO BODY [M-018820/NL-318386/E-104275/EL-409415] & Below |
1 | superseded |
| 8 | 84141M |
ДИАФРАГМА DIAPHRAGM |
1 | |
| 9 | 43096M |
КРЫШКА [M-018821/NL-318387/E-104276/EL-409416] & Up COVER [M-018821/NL-318387/E-104276/EL-409416] & Up |
1 | superseded |
| 9 | 80607M |
КРЫШКА [M-018820/NL-318386/E-104275/EL-409415] & Below COVER [M-018820/NL-318386/E-104275/EL-409415] & Below |
1 | discontinued |
