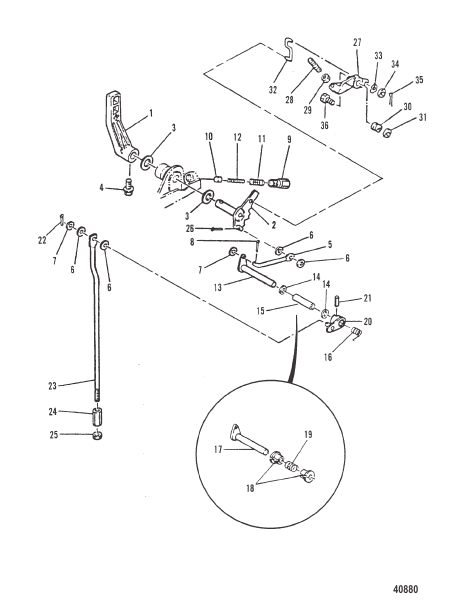

GEAR SHIFT LINKAGE
Parts (38)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 84865M |
РУКОЯТКА ПЕРЕКЛЮЧЕНИЕ РЕВЕРСА HANDLE GEAR SHIFT |
1 | |
| 10 | 84460M |
ПЛУНЖЕР ФИКСАТОР ПЕРЕДАЧИ PLUNGER SHIFT DETENT |
1 | discontinued |
| 11 | 84461M |
ПРУЖИНА СЖАТИЕ SPRING COMPRESSION |
1 | discontinued |
| 12 | 84462M |
ПРУЖИНА СЖАТИЕ SPRING COMPRESSION |
1 | discontinued |
| 13 | 97139M |
РЫЧАГ ШТОК ПЕРЕКЛЮЧЕНИЯ РЕВЕРСА [M-009746/ML-310466/E-101956/EL-404936] & Up LEVER SHIFT ROD [M-009746/ML-310466/E-101956/EL-404936] & Up |
1 | discontinued |
| 14 | 81846M |
ШАЙБА [M-009746/ML-310466/E-101956/EL-404936] & Up WASHER [M-009746/ML-310466/E-101956/EL-404936] & Up |
2 | discontinued |
| 15 | 97142M |
ВТУЛКА [M-009746/ML-310466/E-101956/EL-404936] & Up COLLAR [M-009746/ML-310466/E-101956/EL-404936] & Up |
1 | discontinued |
| 16 | 97140M |
ПРУЖИНА [M-009746/ML-310466/E-101956/EL-404936] & Up SPRING [M-009746/ML-310466/E-101956/EL-404936] & Up |
1 | discontinued |
| 17 | 84866M |
РЫЧАГ ШТОК ПЕРЕКЛЮЧЕНИЯ РЕВЕРСА [M-009745/ML-310465/E-101955/EL-404935] & Below LEVER SHIFT ROD [M-009745/ML-310465/E-101955/EL-404935] & Below |
1 | discontinued |
| 18 | 81946M |
ВТУЛКА [M-009745/ML-310465/E-101955/EL-404935] & Below BUSHING [M-009745/ML-310465/E-101955/EL-404935] & Below |
2 | discontinued |
| 19 | 82108M |
ПРУЖИНА [M-009745/ML-310465/E-101955/EL-404935] & Below SPRING [M-009745/ML-310465/E-101955/EL-404935] & Below |
1 | discontinued |
| 2 | 84653M |
КУЛАЧОК ПЕРЕКЛЮЧЕНИЕ РЕВЕРСА CAM SHIFT |
1 | discontinued |
| 20 | 84867M |
РЫЧАГ ШТОК ПЕРЕКЛЮЧЕНИЯ РЕВЕРСА LEVER SHIFT ROD |
1 | discontinued |
| 21 | 82155M |
ШТИФТ РОЛИК PIN ROLL |
1 | discontinued |
| 22 | 82127M |
ШПЛИНТ COTTER PIN |
1 | discontinued |
| 23 | 81596M |
ШТОК ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ SHIFT ROD |
1 | discontinued |
| 24 | 80652M |
СОЕДИНИТЕЛЬ CONNECTOR |
1 | |
| 25 | 81767M |
ГАЙКА NUT |
1 | discontinued |
| 26 | 82124M |
ШПЛИНТ [M-009746/ML-310466/E-101956/EL-404936] & Up COTTER PIN [M-009746/ML-310466/E-101956/EL-404936] & Up |
1 | superseded |
| 26 | 82125M |
ШПЛИНТ [M-009745/ML-310465/E-101955/EL-404935] & Below COTTER PIN [M-009745/ML-310465/E-101955/EL-404935] & Below |
1 | discontinued |
| 27 | 97131M |
ARM (РУЧНОЙ) [M-018821/ML-318387] & Up ARM (MANUAL) [M-018821/ML-318387] & Up |
1 | discontinued |
| 28 | 84314M |
ШПИЛЬКА НАБОР (РУЧНОЙ) [M-018821/ML-318387] & Up STUD SET (MANUAL) [M-018821/ML-318387] & Up |
1 | superseded |
| 29 | 82378M |
ГАЙКА (РУЧНОЙ) [M-018821/ML-318387] & Up NUT (MANUAL) [M-018821/ML-318387] & Up |
1 | superseded |
| 3 | 81851M |
ШАЙБА WASHER |
2 | discontinued |
| 30 | 83310M |
ВТУЛКА (РУЧНОЙ) [M-018821/ML-318387] & Up COLLAR (MANUAL) [M-018821/ML-318387] & Up |
1 | discontinued |
| 31 | 81969M |
ШАЙБА (РУЧНОЙ) [M-018821/ML-318387] & Up WASHER (MANUAL) [M-018821/ML-318387] & Up |
1 | discontinued |
| 32 | 91650M |
СОЕДИНИТЕЛЬ (РУЧНОЙ) [M-018821/ML-318387] & Up LINK (MANUAL) [M-018821/ML-318387] & Up |
1 | discontinued |
| 33 | 81865M |
ШАЙБА ВОЛНА (РУЧНОЙ) [M-018821/ML-318387] & Up WASHER WAVE (MANUAL) [M-018821/ML-318387] & Up |
2 | discontinued |
| 34 | 82196M |
ШАЙБА (РУЧНОЙ) [M-018821/ML-318387] & Up WASHER (MANUAL) [M-018821/ML-318387] & Up |
2 | superseded |
| 35 | 82125M |
ШПЛИНТ (РУЧНОЙ) [M-018821/ML-318387] & Up COTTER PIN (MANUAL) [M-018821/ML-318387] & Up |
2 | discontinued |
| 36 | 83539M |
БОЛТ (M6 x 20) (РУЧНОЙ) [M-018821/ML-318387] & Up BOLT (M6 x 20) (MANUAL) [M-018821/ML-318387] & Up |
1 | superseded |
| 4 | 84830M |
БОЛТ BOLT |
1 | discontinued |
| 5 | 81595M |
СТЕРЖЕНЬ ТЯГИ LINK ROD |
1 | discontinued |
| 6 | 81843M |
ШАЙБА WASHER |
4 | discontinued |
| 7 | 82211M |
ШАЙБА WASHER |
2 | discontinued |
| 8 | 82125M |
ШПЛИНТ [M-018821/ML-318387/E-104276/EL-409416] & Up COTTER PIN [M-018821/ML-318387/E-104276/EL-409416] & Up |
1 | discontinued |
| 8 | 82124M |
ШПЛИНТ [M-018820/ML-318386/E-104275/EL-409415] & Below COTTER PIN [M-018820/ML-318386/E-104275/EL-409415] & Below |
1 | superseded |
| 9 | 84459M |
ФИКСАТОР ФИКСАТОР ПЕРЕДАЧИ RETAINER SHIFT DETENT |
1 | discontinued |
