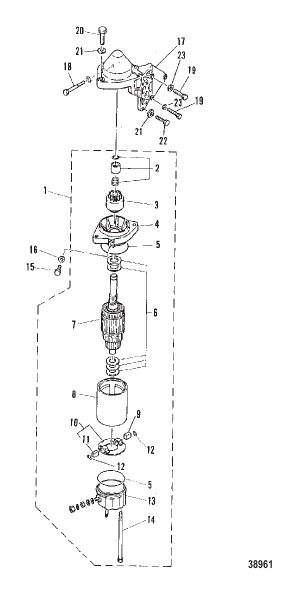

STARTER MOTOR (E-101516/EL-404001 and Up)
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 97693M |
СТАРТЕР В СБОРЕ [E-104276/EL-409416] & Up STARTER MOTOR ASSEMBLY [E-104276/EL-409416] & Up |
1 | discontinued |
| 1 | 96359M |
СТАРТЕР В СБОРЕ [E-101516/EL-404001] THRU [E-104275/EL-409415] STARTER MOTOR ASSEMBLY [E-101516/EL-404001] THRU [E-104275/EL-409415] |
1 | superseded |
| 10 | 96367M |
ДЕРЖАТЕЛЬ Щетка HOLDER Brush |
1 | discontinued |
| 11 | 96369M |
ЩЕТКА ОТРИЦАТЕЛЬНЫЙ BRUSH NEGATIVE |
1 | discontinued |
| 12 | 84927M |
ПРУЖИНА ЩЕТКА SPRING BRUSH |
2 | discontinued |
| 13 | 96370M |
КРЫШКА ЗАДНИЙ COVER REAR |
1 | discontinued |
| 14 | 84929M |
БОЛТ BOLT |
2 | discontinued |
| 15 | 82436M |
БОЛТ [E-104276/EL-409416] & Up BOLT [E-104276/EL-409416] & Up |
1 | discontinued |
| 15 | 96371M |
БОЛТ [E-101516/EL-404001] THRU [E-104275/EL-409415] BOLT [E-101516/EL-404001] THRU [E-104275/EL-409415] |
1 | discontinued |
| 16 | 82202M |
ШАЙБА WASHER |
1 | superseded |
| 17 | 84930M |
КРОНШТЕЙН КРЕПЛЕНИЕ СТАРТЕРА [E-104276/EL-409416] & Up BRACKET MOTOR MOUNTING [E-104276/EL-409416] & Up |
2 | discontinued |
| 17 | 92609M |
КРОНШТЕЙН КРЕПЛЕНИЕ СТАРТЕРА [E-101516/EL-404001] THRU [E-104275/EL-409415] BRACKET MOTOR MOUNTING [E-101516/EL-404001] THRU [E-104275/EL-409415] |
2 | discontinued |
| 18 | 84931M |
БОЛТ [E-104276/EL-409416] & Up BOLT [E-104276/EL-409416] & Up |
1 | discontinued |
| 18 | 84853M |
БОЛТ [E-101516/EL-404001] THRU [E-104275/EL-409415] BOLT [E-101516/EL-404001] THRU [E-104275/EL-409415] |
1 | superseded |
| 19 | 84237M |
БОЛТ [E-104276/EL-409416] & Up BOLT [E-104276/EL-409416] & Up |
2 | superseded |
| 19 | 81412M |
ПРОБКА [E-101516/EL-404001] THRU [E-104275/EL-409415] CAP [E-101516/EL-404001] THRU [E-104275/EL-409415] |
2 | superseded |
| 2 | 96360M |
КОМПЛЕКТ СТОПОРА Шестерня STOPPER KIT Pinion |
1 | discontinued |
| 20 | 82441M |
БОЛТ [E-104276/EL-409416] & Up BOLT [E-104276/EL-409416] & Up |
2 | discontinued |
| 20 | 82465M |
БОЛТ [E-101516/EL-404001] THRU [E-104275/EL-409415] BOLT [E-101516/EL-404001] THRU [E-104275/EL-409415] |
2 | superseded |
| 21 | 82202M |
ШАЙБА WASHER |
3 | superseded |
| 22 | 82439M |
БОЛТ BOLT |
1 | discontinued |
| 23 | 82199M |
ШАЙБА [E-104276/EL-409416] & Up WASHER [E-104276/EL-409416] & Up |
3 | superseded |
| 3 | 97694M |
ШЕСТЕРНЯ PINION |
1 | superseded |
| 4 | 96362M |
КРЫШКА ПЕРЕДНИЙ COVER FRONT |
1 | discontinued |
| 5 | 96363M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | discontinued |
| 6 | 96364M |
КОМПЛЕКТ ШАЙБ WASHER KIT |
1 | discontinued |
| 7 | 96365M |
ЯКОРЬ ARMATURE |
1 | discontinued |
| 8 | 96365M |
ЯКОРЬ ARMATURE |
1 | discontinued |
| 9 | 96368M |
ЩЕТКА ПОЛОЖИТЕЛЬНЫЙ BRUSH POSITIVE |
1 | discontinued |
