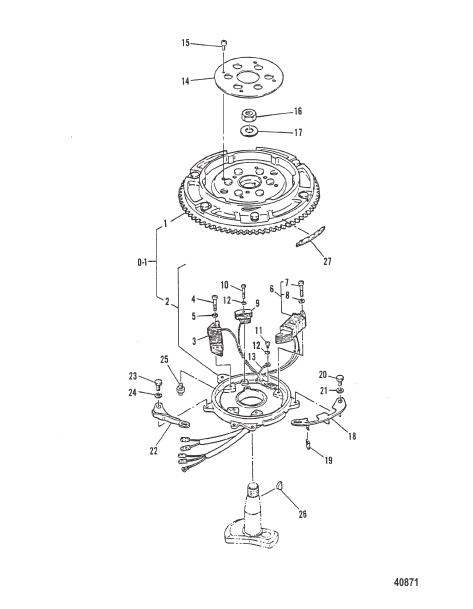

C.D.I MAGNETO ASSEMBLY
Parts (37)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 0-1 | 8483M |
CDI MAGNETO В СБОРЕ (ЭЛЕКТРИЧЕСКИЙ С ЗАРЯДНОЙ КАТУШКОЙ) [M-007186/ML-308701/E-101516/EL-404001] & Up CDI MAGNETO ASSEMBLY (ELECTRIC WITH LIGHTING COIL) [M-007186/ML-308701/E-101516/EL-404001] & Up |
1 | discontinued |
| 0-1 | 7850M |
ИНДУКТОР В СБОРЕ (ЭЛЕКТРИЧЕСКИЙ С ЗАРЯДНОЙ КАТУШКОЙ) [M-007185/ML-308700/E-101515/EL-404000] & Below MAGNETO ASSEMBLY (ELECTRIC WITH LIGHTING COIL) [M-007185/ML-308700/E-101515/EL-404000] & Below |
1 | discontinued |
| 0-1 | 8926M |
CDI MAGNETO В СБОРЕ (РУЧНОЙ С ЗАРЯДНОЙ КАТУШКОЙ) CDI MAGNETO ASSEMBLY (MANUAL WITH LIGHTING COIL) |
1 | superseded |
| 1 | 8482M |
МАХОВИК (ЭЛЕКТРИЧ.) [M-007186/ML-308701/E-101516/EL-404001] & Up FLYWHEEL (ELECTRIC) [M-007186/ML-308701/E-101516/EL-404001] & Up |
1 | discontinued |
| 1 | 8927M |
МАХОВИК (РУЧНОЙ) [M-007186/ML-308701/E-101516/EL-404001] & Up FLYWHEEL (MANUAL) [M-007186/ML-308701/E-101516/EL-404001] & Up |
1 | superseded |
| 1 | 7851M |
МАХОВИК (ЭЛЕКТРИЧЕСКИЙ И РУЧНОЙ) [M-007185/ML-308700/E-101515/EL-404000] & Below FLYWHEEL (ELECTRIC AND MANUAL) [M-007185/ML-308700/E-101515/EL-404000] & Below |
1 | discontinued |
| 10 | 8482M |
МАХОВИК FLYWHEEL |
2 | discontinued |
| 11 | 82499M |
ВИНТ SCREW |
1 | discontinued |
| 12 | 82184M |
СТОПОРНАЯ ШАЙБА ЗАМОК LOCKWASHER LOCK |
3 | superseded |
| 13 | 84883M |
ПРОВОД ЗАЗЕМЛЕНИЕ WIRE GROUND |
1 | discontinued |
| 14 | 96649M |
КРЫШКА COVER |
1 | discontinued |
| 15 | 82436M |
БОЛТ [M-007186/ML-308701/E-101516/EL-404001] & Up BOLT [M-007186/ML-308701/E-101516/EL-404001] & Up |
3 | discontinued |
| 15 | 83523M |
ВИНТ [M-007185/ML-308700/E-101515/EL-404000] & Below SCREW [M-007185/ML-308700/E-101515/EL-404000] & Below |
4 | discontinued |
| 16 | 96650M |
ГАЙКА (M16) МАХОВИК [M-007186/ML-308701/E-101516/EL-404001] & Up NUT (M16) FLYWHEEL [M-007186/ML-308701/E-101516/EL-404001] & Up |
1 | discontinued |
| 16 | 81773M |
ГАЙКА МАХОВИК [M-007185/ML-308700/E-101515/EL-404000] & Below NUT FLYWHEEL [M-007185/ML-308700/E-101515/EL-404000] & Below |
1 | superseded |
| 17 | 96651M |
ШАЙБА [M-007186/ML-308701/E-101516/EL-404001] & Up WASHER [M-007186/ML-308701/E-101516/EL-404001] & Up |
1 | discontinued |
| 17 | 84436M |
ШАЙБА [M-007185/ML-308700/E-101515/EL-404000] & Below WASHER [M-007185/ML-308700/E-101515/EL-404000] & Below |
1 | superseded |
| 18 | 84885M |
СТОП ОСНОВАНИЕ МАГНЕТО [M-007186/ML-308701/E-101516/EL-404001] & Up STOP MAGNETO BASE [M-007186/ML-308701/E-101516/EL-404001] & Up |
1 | discontinued |
| 18 | 94652M |
СТОП ОСНОВАНИЕ МАГНЕТО [M-007185/ML-308700/E-101515/EL-404000] & Below STOP MAGNETO BASE [M-007185/ML-308700/E-101515/EL-404000] & Below |
1 | discontinued |
| 19 | 84886M |
ПРОБКА CAP |
1 | discontinued |
| 2 | 84878M |
БАЗА В СБОРЕ (БЕЗ ЗАРЯДНОЙ КАТУШКИ) BASE ASSEMBLY (WITHOUT LIGHTING COIL) |
1 | superseded |
| 2 | 84878M |
БАЗА В СБОРЕ (С ЗАРЯДНОЙ КАТУШКОЙ) BASE ASSEMBLY (WITH LIGHTING COIL) |
1 | superseded |
| 20 | 84315M |
БОЛТ BOLT |
2 | superseded |
| 21 | 82199M |
ШАЙБА ЗАМОК [M-010646/ML-311476/E-102356/EL-405456] THRU [M-018820,ML-318386/E-104275/EL-409415] WASHER LOCK [M-010646/ML-311476/E-102356/EL-405456] THRU [M-018820,ML-318386/E-104275/EL-409415] |
2 | superseded |
| 22 | 84887M |
КУЛАЧОК ПЕДАЛЬ ГАЗА CAM THROTTLE ACCEL |
1 | discontinued |
| 23 | 84313M |
БОЛТ BOLT |
2 | discontinued |
| 24 | 82196M |
ШАЙБА WASHER |
2 | superseded |
| 25 | 84305M |
СОЕДИНЕНИЕ JOINT |
1 | discontinued |
| 26 | 81915M |
КЛЮЧ МАХОВИК KEY FLYWHEEL |
1 | discontinued |
| 27 | 84888M |
НАКЛЕЙКА МЕТКА РАСПРЕДЕЛИТЕЛЬНЫХ ФАЗ [M-018820/ML-318386/E-104275/EL-409415] & Below DECAL TIMING MARK [M-018820/ML-318386/E-104275/EL-409415] & Below |
1 | discontinued |
| 3 | 84879M |
КАТУШКА ЗАЖИГАНИЕ COIL IGNITION |
1 | superseded |
| 4 | 84880M |
ВИНТ SCREW |
2 | superseded |
| 5 | 82186M |
ШАЙБА ЗАМОК WASHER LOCK |
2 | discontinued |
| 6 | 84881M |
КАТУШКА В СБОРЕ Зарядка COIL ASSEMBLY Lighting |
1 | discontinued |
| 7 | 84880M |
ВИНТ SCREW |
2 | superseded |
| 8 | 82186M |
ШАЙБА ЗАМОК WASHER LOCK |
2 | discontinued |
| 9 | 84877M |
ИМПУЛЬСНЫЙ ГЕНЕРАТОР PULSER |
1 | discontinued |
