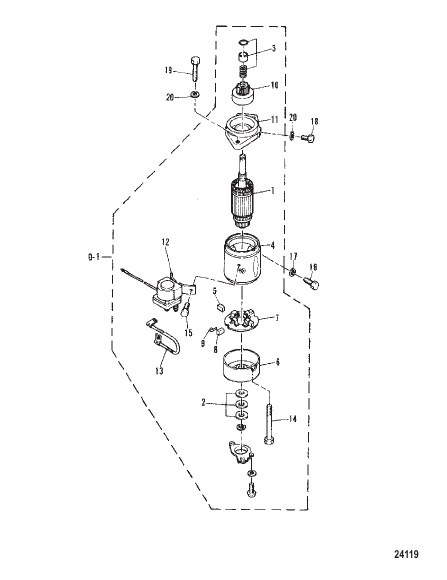

ELECTRIC STARTER MOTOR
Parts (21)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 0-1 | 81490M |
СТАРТЕР В СБОРЕ STARTER MOTOR ASSEMBLY |
1 | superseded |
| 1 | 83651M |
ЯКОРЬ ARMATURE |
1 | discontinued |
| 10 | 81504M |
ПЕРЕДАЧА GEAR |
1 | superseded |
| 11 | 83654M |
КРОНШТЕЙН Передний BRACKET Front |
1 | discontinued |
| 12 | 81513M |
ПЕРЕКЛЮЧАТЕЛЬ SWITCH |
1 | discontinued |
| 13 | 81497M |
ПРОВОД ЖИЛА WIRE LEAD |
1 | discontinued |
| 14 | 81500M |
БОЛТ BOLT |
1 | discontinued |
| 15 | 82420M |
БОЛТ BOLT |
2 | superseded |
| 16 | 82436M |
БОЛТ BOLT |
1 | discontinued |
| 17 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 18 | 84342M |
БОЛТ BOLT |
1 | discontinued |
| 19 | 82441M |
БОЛТ BOLT |
2 | discontinued |
| 2 | 83652M |
КОМПЛЕКТ ШАЙБ WASHER KIT |
1 | discontinued |
| 20 | 82200M |
ШАЙБА ЗАМОК WASHER LOCK |
3 | superseded |
| 3 | 81505M |
КОЛЬЦО RING |
1 | superseded |
| 4 | 81493M |
СТАТОР STATOR |
1 | discontinued |
| 5 | 81494M |
ЩЕТКА (+) BRUSH (+) |
2 | discontinued |
| 6 | 81499M |
ЗАДНЯЯ КРЫШКА REAR COVER |
1 | discontinued |
| 7 | 81507M |
ДЕРЖАТЕЛЬ Щетка HOLDER Brush |
1 | discontinued |
| 8 | 81495M |
ЩЕТКА (-) BRUSH (-) |
2 | discontinued |
| 9 | 81496M |
ПРУЖИНА ЩЕТКА SPRING BRUSH |
4 | discontinued |
