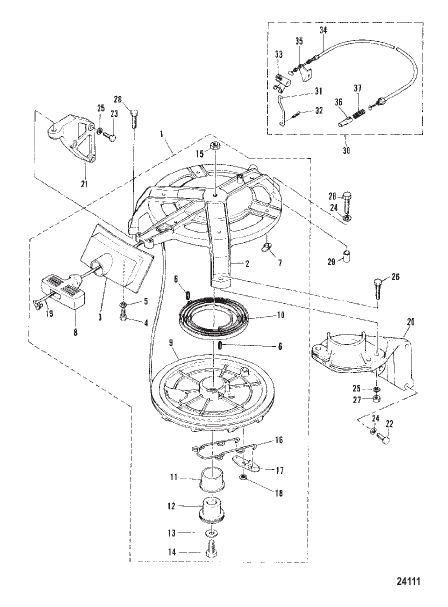

RECOIL STARTER
Parts (37)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 7101M |
СТАРТЕР В СБОРЕ Обратный ход STARTER ASSEMBLY Recoil |
1 | discontinued |
| 10 | 83588M |
ПРУЖИНА СТАРТЕР SPRING STARTER |
1 | |
| 11 | 83589M |
ВТУЛКА BUSHING |
1 | discontinued |
| 12 | 83590M |
ВАЛ SHAFT |
1 | discontinued |
| 13 | 81801M |
ШАЙБА WASHER |
1 | discontinued |
| 14 | 84342M |
БОЛТ BOLT |
1 | discontinued |
| 15 | 82382M |
ГАЙКА NUT |
1 | discontinued |
| 16 | 83591M |
ПРУЖИНА SPRING |
1 | discontinued |
| 17 | 84894M |
СТОПОР ПРИВОД PAWL DRIVE |
1 | |
| 18 | 82331M |
КОЛЬЦО Защелка RING Snap |
1 | discontinued |
| 19 | 79629A1 |
ТРОС Стартер ROPE Starter |
1 | superseded |
| 2 | 7102M |
КОРПУС HOUSING |
1 | superseded |
| 20 | 83629M |
КРОНШТЕЙН (ЛЕВЫЙ БОРТ) BRACKET (PORT) |
1 | discontinued |
| 21 | 83593M |
КРОНШТЕЙН (ПРАВЫЙ БОРТ) BRACKET (STARBOARD) |
1 | discontinued |
| 22 | 82441M |
БОЛТ BOLT |
4 | discontinued |
| 23 | 82405M |
БОЛТ BOLT |
3 | discontinued |
| 24 | 82200M |
ШАЙБА ЗАМОК WASHER LOCK |
5 | superseded |
| 25 | 82197M |
ШАЙБА ЗАМОК WASHER LOCK |
5 | superseded |
| 26 | 84237M |
БОЛТ BOLT |
2 | superseded |
| 27 | 82380M |
ГАЙКА NUT |
2 | superseded |
| 28 | 84236M |
БОЛТ BOLT |
1 | discontinued |
| 29 | 82162M |
ШТИФТ PIN |
1 | superseded |
| 3 | 83583M |
НАПРАВЛЯЮЩАЯ ТРОС СТАРТЕРА GUIDE STARTER ROPE |
1 | discontinued |
| 30 | 83594M |
БЛОКИРОВКА В СБОРЕ Стартер LOCKOUT ASSEMBLY Starter |
1 | discontinued |
| 31 | 83595M |
ШТОК ROD |
1 | discontinued |
| 32 | 82125M |
ШПЛИНТ COTTER PIN |
1 | discontinued |
| 33 | 83596M |
РЫЧАГ LEVER |
1 | discontinued |
| 34 | 83597M |
КАБЕЛЬ УПОР СТАРТЕРА CABLE STARTER STOP |
1 | discontinued |
| 35 | 83598M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 36 | 81106M |
ПЛУНЖЕР УПОР СТАРТЕРА PLUNGER STARTER STOP |
1 | discontinued |
| 37 | 82079M |
ПРУЖИНА SPRING |
1 | discontinued |
| 4 | 84247M |
БОЛТ BOLT |
2 | superseded |
| 5 | 82197M |
ШАЙБА ЗАМОК WASHER LOCK |
2 | superseded |
| 6 | 82157M |
ШТИФТ РОЛИК PIN ROLL |
2 | discontinued |
| 7 | 83585M |
ПРОБКА PLUG |
6 | discontinued |
| 8 | 80063M |
РУКОЯТКА СТАРТЕР HANDLE STARTER |
1 | superseded |
| 9 | 83587M |
РОЛИК Стартер РОЛИК SHEAVE Starter SHEAVE |
1 | discontinued |
