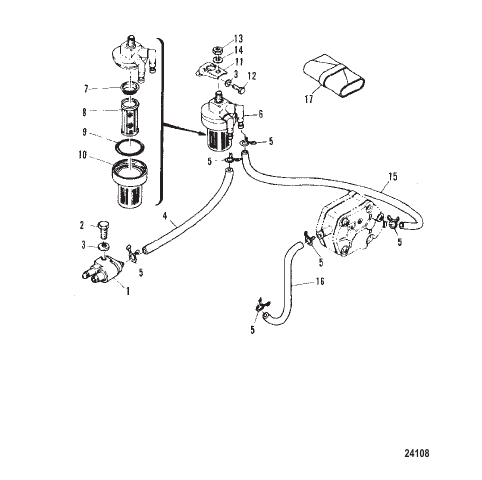

FUEL LINES AND FILTER
Parts (20)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 84167M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | superseded |
| 1 | 81041M |
СОЕДИНИТЕЛЬ Стык топливопровода CONNECTOR Fuel Pipe Joint |
1 | superseded |
| 10 | 82784M |
КАМЕРА Топливо ФИЛЬТР BOWL Fuel FILTER |
1 | superseded |
| 11 | 80620M |
КРОНШТЕЙН ФИЛЬТР BRACKET FILTER |
1 | discontinued |
| 12 | 84247M |
БОЛТ BOLT |
1 | superseded |
| 13 | 82382M |
ГАЙКА NUT |
1 | discontinued |
| 14 | 82200M |
ШАЙБА ЗАМОК WASHER LOCK |
1 | superseded |
| 15 | 84973M |
РУКАВ [S-000671/L-300676/E-101081/EL-402001] & Up HOSE [S-000671/L-300676/E-101081/EL-402001] & Up |
1 | discontinued |
| 15 | 83621M |
РУКАВ [S-000670/L-300675/E-101080/EL-402000] & Below HOSE [S-000670/L-300675/E-101080/EL-402000] & Below |
1 | superseded |
| 16 | 82010M |
ТРУБОПРОВОД Топливо LINE Fuel |
1 | superseded |
| 17 | 80277M |
КОМПЛЕКТ ИНСТРУМЕНТОВ TOOL KIT |
1 | superseded |
| 2 | 83539M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
1 | superseded |
| 3 | 82197M |
ШАЙБА ЗАМОК WASHER LOCK |
2 | superseded |
| 4 | 84972M |
РУКАВ [S-000671/L-300676/E-101081/EL-402001] & Up HOSE [S-000671/L-300676/E-101081/EL-402001] & Up |
1 | superseded |
| 4 | 83619M |
РУКАВ [S-000670/L-300675/E-101080/EL-402000] & Below HOSE [S-000670/L-300675/E-101080/EL-402000] & Below |
1 | superseded |
| 5 | 82047M |
ЗАЖИМ CLAMP |
6 | discontinued |
| 6 | 80617M |
ФИЛЬТР В СБОРЕ Топливо FILTER ASSEMBLY Fuel |
1 | superseded |
| 7 | 82790M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 8 | 82783M |
ЭЛЕМЕНТ ФИЛЬТР ELEMENT FILTER |
1 | superseded |
| 9 | 82792M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | superseded |
