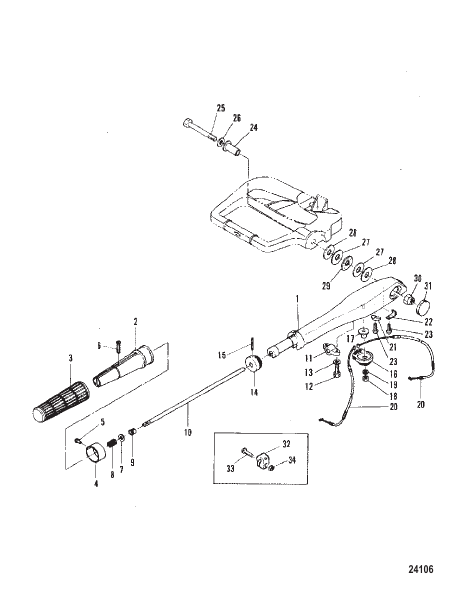

STEERING HANDLE (MANUAL START MODEL)
Parts (36)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 0-1 | 83871M |
РУКОЯТКА В СБОРЕ Рулевой механизм HANDLE ASSEMBLY Steering |
1 | superseded |
| 1 | 84971M |
РУКОЯТКА РУЛЕВОЙ МЕХАНИЗМ [S-001161/L-301386/E-101681/EL-403211] & Up HANDLE STEERING [S-001161/L-301386/E-101681/EL-403211] & Up |
1 | discontinued |
| 1 | 83514M |
РУКОЯТКА РУЛЕВОЙ МЕХАНИЗМ [S-001160/L-303185/ES-101680/EL-403210] & Below HANDLE STEERING [S-001160/L-303185/ES-101680/EL-403210] & Below |
1 | superseded |
| 10 | 83516M |
ВАЛ РУКОЯТКА РУЛЕВОГО МЕХАНИЗМА SHAFT STEERING HANDLE |
1 | discontinued |
| 11 | 83517M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 12 | 82452M |
БОЛТ BOLT |
2 | superseded |
| 13 | 82214M |
ШАЙБА WASHER |
2 | discontinued |
| 14 | 80778M |
ПЕРЕДАЧА GEAR |
1 | discontinued |
| 15 | 82151M |
ШТИФТ РОЛИК PIN ROLL |
1 | discontinued |
| 16 | 83518M |
ШЕСТЕРНЯ PINION |
1 | discontinued |
| 17 | 83519M |
ВТУЛКА BUSHING |
1 | discontinued |
| 18 | 82389M |
ГАЙКА NUT |
1 | discontinued |
| 19 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 2 | 81585M |
РУКОЯТКА РУКОЯТКА РУЛЕВОГО МЕХАНИЗМА GRIP STEERING HANDLE |
1 | discontinued |
| 20 | 83520M |
ПРОВОД Дроссельная заслонка WIRE Throttle |
2 | discontinued |
| 21 | 83521M |
ДЕРЖАТЕЛЬ ПРОВОД HOLDER WIRE |
1 | discontinued |
| 22 | 83522M |
ДЕРЖАТЕЛЬ ПРОВОД HOLDER WIRE |
1 | discontinued |
| 23 | 83523M |
ВИНТ SCREW |
2 | discontinued |
| 24 | 81950M |
ВТУЛКА BUSHING |
1 | discontinued |
| 25 | 81710M |
БОЛТ BOLT |
1 | discontinued |
| 26 | 83524M |
ШАЙБА WASHER |
1 | discontinued |
| 27 | 81853M |
ШАЙБА WASHER |
2 | discontinued |
| 28 | 81815M |
ШАЙБА WASHER |
2 | discontinued |
| 29 | 81870M |
ШАЙБА ВОЛНА WASHER WAVE |
1 | discontinued |
| 3 | 80509M |
РЕЗИНА РУКОЯТКА RUBBER HANDLE |
1 | discontinued |
| 30 | 81786M |
ГАЙКА НЕЙЛОН NUT NYLON |
1 | discontinued |
| 31 | 83525M |
ПРОБКА [S-001160/L-303185/ES-101680/EL-403210] & Below CAP [S-001160/L-303185/ES-101680/EL-403210] & Below |
1 | discontinued |
| 32 | 82895M |
ФРИКЦИОННАЯ КОЛОДКА FRICTION PIECE |
1 | discontinued |
| 33 | 82452M |
БОЛТ BOLT |
1 | superseded |
| 34 | 83056M |
ГАЙКА NUT |
1 | discontinued |
| 4 | 83515M |
ИНДИКАТОР ДРОССЕЛЬНАЯ ЗАСЛОНКА INDICATOR THROTTLE |
1 | superseded |
| 5 | 81907M |
ЗАКЛЕПКА RIVET |
1 | discontinued |
| 6 | 82483M |
ВИНТ SCREW |
1 | superseded |
| 7 | 82204M |
ШАЙБА WASHER |
1 | superseded |
| 8 | 82095M |
ПРУЖИНА SPRING |
1 | discontinued |
| 9 | 81945M |
ВТУЛКА BUSHING |
1 | discontinued |
