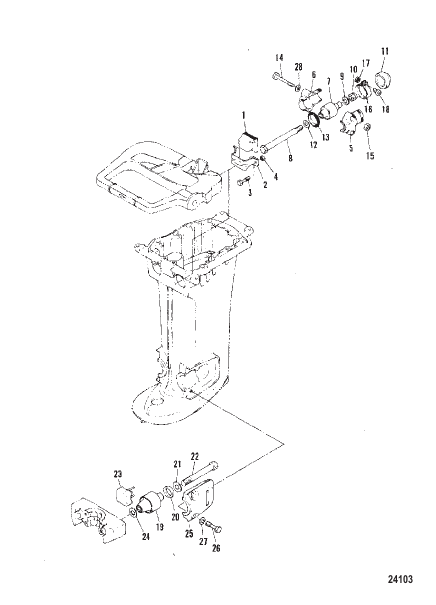

MOUNTING SYSTEM
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 84362M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | superseded |
| 1 | 83496M |
ДЕМПФЕР ВЕРХНЯЯ МОНТАЖНАЯ РЕЗИНОВАЯ ПРОКЛАДКА DAMPER UPPER MOUNT RUBBER |
1 | discontinued |
| 10 | 83502M |
ГАЙКА НЕЙЛОН NUT NYLON |
2 | superseded |
| 11 | 83912M |
ПРОБКА CAP |
2 | discontinued |
| 12 | 83504M |
ШАЙБА WASHER |
2 | discontinued |
| 13 | 83505M |
УПЛОТНЕНИЕ РЕЗИНА SEAL RUBBER |
2 | discontinued |
| 14 | 83506M |
БОЛТ BOLT |
4 | discontinued |
| 15 | 82400M |
ГАЙКА NUT |
4 | superseded |
| 16 | 83507M |
ЗАЖИМ CLAMP |
2 | discontinued |
| 17 | 83508M |
ГАЙКА NUT |
2 | discontinued |
| 18 | 83913M |
ВИНТ SCREW |
2 | superseded |
| 19 | 83914M |
ДЕМПФЕР ОПОРЫ НИЖНЯЯ ЧАСТЬ MOUNT DAMPER LOWER SIDE |
2 | superseded |
| 2 | 83497M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 20 | 81860M |
ШАЙБА WASHER |
2 | discontinued |
| 21 | 83915M |
ШАЙБА WASHER |
2 | discontinued |
| 22 | 83510M |
БОЛТ BOLT |
2 | discontinued |
| 23 | 83511M |
ДЕМПФЕР НИЖНЯЯ ОПОРА, РЕЗИНОВАЯ DAMPER LOWER MOUNT RUBBER |
1 | discontinued |
| 24 | 84429M |
ШАЙБА WASHER |
2 | discontinued |
| 25 | 83512M |
КРЫШКА НИЖНЯЯ ОПОРА COVER LOWER MOUNT |
2 | discontinued |
| 26 | 82465M |
БОЛТ BOLT |
4 | superseded |
| 27 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
4 | discontinued |
| 28 | 82217M |
ШАЙБА WASHER |
4 | discontinued |
| 3 | 82453M |
БОЛТ BOLT |
2 | superseded |
| 4 | 82389M |
ГАЙКА NUT |
2 | discontinued |
| 5 | 83498M |
КРЫШКА ВЕРХНЯЯ МОНТАЖНАЯ РЕЗИНОВАЯ ПРОКЛАДКА COVER UPPER MOUNT RUBBER |
2 | discontinued |
| 6 | 83499M |
КРЫШКА ВЕРХНЯЯ МОНТАЖНАЯ РЕЗИНОВАЯ ПРОКЛАДКА COVER UPPER MOUNT RUBBER |
2 | discontinued |
| 7 | 83910M |
ДЕМПФЕР ОПОРЫ ВЕРХНЯЯ ЧАСТЬ БОКОВОЙ СТОРОНЫ MOUNT DAMPER UPPER SIDE |
2 | superseded |
| 8 | 83501M |
БОЛТ BOLT |
2 | discontinued |
| 9 | 83911M |
ШАЙБА WASHER |
2 | discontinued |
