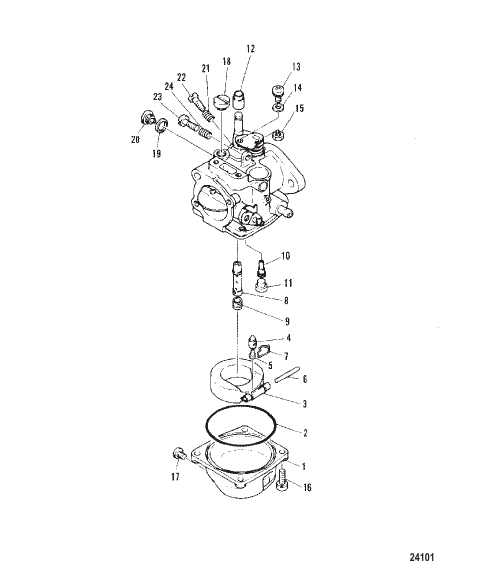

CARBURETOR
Parts (27)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 84167M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | superseded |
| - | 84475M |
РЕМОНТНЫЙ КОМПЛЕКТ REPAIR KIT |
1 | discontinued |
| 0-1 | 7132M |
КАРБЮРАТОР В СБОРЕ CARBURETOR ASSEMBLY |
1 | superseded |
| 1 | 83361M |
ПОПЛАВКОВАЯ КАМЕРА FLOAT BOWL |
1 | discontinued |
| 10 | 83888M |
ВОДОМЕТНЫЙ МЕДЛЕННЫЙ (№55) JET SLOW (# 55) |
1 | discontinued |
| 11 | 83369M |
ПРОБКА CAP |
1 | superseded |
| 12 | 83370M |
ВТУЛКА COLLAR |
1 | discontinued |
| 13 | 83371M |
ВИНТ SCREW |
1 | discontinued |
| 14 | 83372M |
ШАЙБА WASHER |
1 | discontinued |
| 15 | 82378M |
ГАЙКА NUT |
1 | superseded |
| 16 | 83373M |
ВИНТ SCREW |
4 | superseded |
| 17 | 83374M |
ВИНТ SCREW |
1 | discontinued |
| 18 | 83375M |
ВИНТ SCREW |
1 | discontinued |
| 19 | 83376M |
ШАЙБА WASHER |
1 | discontinued |
| 2 | 83362M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 20 | 81292M |
ВИНТ SCREW |
1 | discontinued |
| 21 | 82073M |
ПРУЖИНА SPRING |
1 | discontinued |
| 22 | 83889M |
ВИНТ СМЕСЬ ДЛЯ ХОЛОСТОГО ХОДА SCREW IDLE MIXTURE |
1 | discontinued |
| 23 | 81277M |
ВИНТ СКОРОСТЬ ХОЛОСТОГО ХОДА SCREW IDLE SPEED |
1 | discontinued |
| 24 | 82080M |
ПРУЖИНА SPRING |
1 | discontinued |
| 3 | 83363M |
ПОПЛАВОК FLOAT |
1 | superseded |
| 4 | 83364M |
КОМПЛЕКТ ИГЛ / СЕДЕЛ Впуск NEEDLE/SEAT KIT Inlet |
1 | |
| 5 | 81698M |
ШТИФТ ИГЛА ВПУСКНОГО ОТВЕРСТИЯ PIN INLET NEEDLE |
1 | superseded |
| 6 | 83365M |
ШТИФТ PIN |
1 | superseded |
| 7 | 82781M |
ЗАЖИМ CLIP |
1 | superseded |
| 8 | 83887M |
ШТУЦЕР ГЛАВНЫЙ NOZZLE MAIN |
1 | discontinued |
| 9 | 83367M |
ВОДОМЕТНЫЙ ГЛАВН. (№155) JET MAIN (# 155) |
1 | discontinued |
