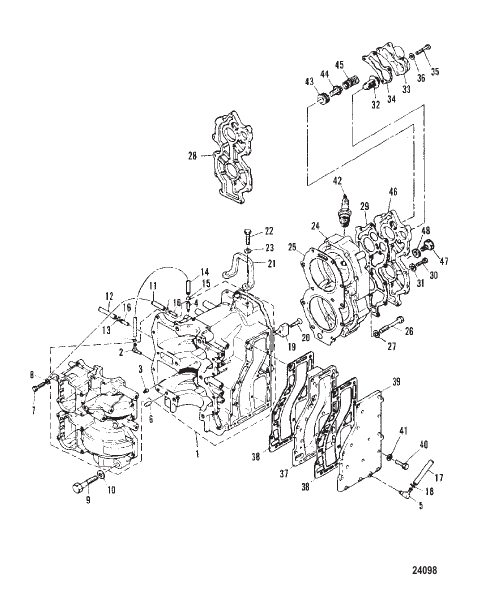

CRANKCASE AND CYLINDER HEAD
Parts (50)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 84133M |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY |
1 | superseded |
| - | 84167M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | superseded |
| 1 | 6982M |
КАРТЕР В СБОРЕ CRANKCASE ASSEMBLY |
1 | discontinued |
| 10 | 81807M |
ШАЙБА WASHER |
6 | discontinued |
| 11 | 82000M |
РУКАВ HOSE |
1 | superseded |
| 12 | 81999M |
РУКАВ HOSE |
1 | superseded |
| 13 | 82046M |
ЗАЖИМ CLAMP |
4 | discontinued |
| 14 | 83328M |
РУКАВ HOSE |
1 | discontinued |
| 15 | 82046M |
ЗАЖИМ CLAMP |
2 | discontinued |
| 16 | 83329M |
ФИТИНГ СЛИВ FITTING DRAIN |
2 | discontinued |
| 17 | 81323M |
РУКАВ HOSE |
1 | discontinued |
| 18 | 82047M |
ЗАЖИМ CLAMP |
2 | discontinued |
| 19 | 83330M |
АНОД ANODE |
1 | discontinued |
| 2 | 80727M |
ОБРАТНЫЙ КЛАПАН В СБОРЕ CHECK VALVE ASSEMBLY |
1 | discontinued |
| 20 | 82168M |
ВИНТ SCREW |
1 | discontinued |
| 21 | 83331M |
СКОБА ДВИГАТЕЛЬ EYE ENGINE |
1 | superseded |
| 22 | 82439M |
БОЛТ BOLT |
2 | discontinued |
| 23 | 82200M |
ШАЙБА ЗАМОК WASHER LOCK |
2 | superseded |
| 24 | 6983M |
ГОЛОВКА ЦИЛИНДР HEAD CYLINDER |
1 | discontinued |
| 25 | 83332M |
ПРОКЛАДКА ГОЛОВКА ЦИЛИНДРА GASKET CYLINDER HEAD |
1 | superseded |
| 26 | 82408M |
БОЛТ BOLT |
11 | discontinued |
| 27 | 80564M |
ШАЙБА WASHER |
11 | discontinued |
| 28 | 83333M |
КРЫШКА ГОЛОВКА ЦИЛИНДРА [S-000940/L-300960/E-101340/EL-402625] & Below COVER CYLINDER HEAD [S-000940/L-300960/E-101340/EL-402625] & Below |
1 | discontinued |
| 29 | 83334M |
ПРОКЛАДКА КРЫШКА ГОЛОВКИ GASKET HEAD COVER |
1 | discontinued |
| 3 | 81258M |
ШТИФТ ШТИФТ PIN DOWEL |
2 | discontinued |
| 30 | 83539M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
11 | superseded |
| 31 | 82199M |
ШАЙБА ЗАМОК WASHER LOCK |
11 | superseded |
| 32 | 81098M |
ТЕРМОСТАТ THERMOSTAT |
1 | superseded |
| 33 | 83335M |
КРЫШКА ТЕРМОСТАТ COVER THERMOSTAT |
1 | superseded |
| 34 | 83336M |
ПРОКЛАДКА ТЕРМОСТАТ GASKET THERMOSTAT |
1 | discontinued |
| 35 | 84237M |
БОЛТ BOLT |
4 | superseded |
| 36 | 82199M |
ШАЙБА ЗАМОК WASHER LOCK |
4 | superseded |
| 37 | 83337M |
ВНУТРЕННЯЯ КРЫШКА ВЫХЛОП INNER COVER EXHAUST |
1 | superseded |
| 38 | 83338M |
ПРОКЛАДКА КРЫШКА ВЫХЛОПНОГО ОТВЕРСТИЯ GASKET EXHAUST COVER |
2 | superseded |
| 39 | 83339M |
НАРУЖНАЯ КРЫШКА ВЫХЛОП OUTER COVER EXHAUST |
1 | discontinued |
| 4 | 80122M |
ФИТИНГ СЛИВ FITTING DRAIN |
1 | discontinued |
| 40 | 82405M |
БОЛТ BOLT |
16 | discontinued |
| 41 | 82199M |
ШАЙБА WASHER |
16 | superseded |
| 42 | 82372M |
СВЕЧА ЗАЖИГАНИЯ (B-8HS) NGK SPARK PLUG (B-8HS) NGK |
2 | superseded |
| 43 | 82067M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 44 | 81267M |
КЛАПАН КОНТРОЛЬ ДАВЛЕНИЯ VALVE PRESSURE CONTROL |
1 | discontinued |
| 45 | 83340M |
ПРУЖИНА SPRING |
1 | discontinued |
| 46 | 84953M |
КРЫШКА ГОЛОВКА ЦИЛИНДРА [S-000941/L-300961/E-101341/EL-402626] & Up COVER CYLINDER HEAD [S-000941/L-300961/E-101341/EL-402626] & Up |
1 | superseded |
| 47 | 81926M |
ПРОБКА [S-000941/L-300961/E-101341/EL-402626] & Up PLUG [S-000941/L-300961/E-101341/EL-402626] & Up |
1 | discontinued |
| 48 | 81990M |
ПРОКЛАДКА ПРОБКА [S-000941/L-300961/E-101341/EL-402626] & Up GASKET PLUG [S-000941/L-300961/E-101341/EL-402626] & Up |
1 | discontinued |
| 5 | 83326M |
ФИТИНГ ВОДЯНОЙ FITTING WATER |
1 | discontinued |
| 6 | 82368M |
ШТИФТ ШТИФТ PIN DOWEL |
2 | discontinued |
| 7 | 82405M |
БОЛТ BOLT |
9 | discontinued |
| 8 | 81792M |
ШАЙБА WASHER |
9 | discontinued |
| 9 | 83327M |
БОЛТ BOLT |
6 | discontinued |
