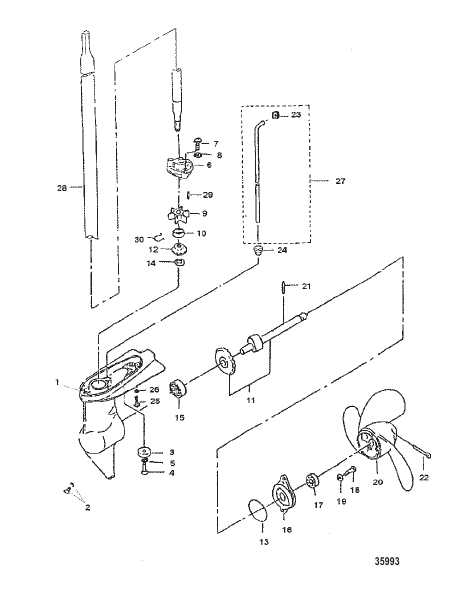

Gear Housing
Parts (30)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 832471 |
КАРТЕР РЕДУКТОРА GEAR HOUSING |
1 | discontinued |
| 10 | 832386 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | discontinued |
| 11 | 832476 |
ВАЛ ГРЕБНОГО ВИНТА PROPELLER SHAFT |
1 | discontinued |
| 12 | 832477 |
ПЕРЕДАЧА Шестерня GEAR Pinion |
1 | discontinued |
| 13 | 832389 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 14 | 832478 |
ШАЙБА WASHER |
1 | discontinued |
| 15 | 832391 |
ПОДШИПНИК BEARING |
1 | discontinued |
| 16 | 832479 |
КРЫШКА COVER |
1 | discontinued |
| 17 | 832386 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | discontinued |
| 18 | 832367 |
БОЛТ (1/4 x 3/4) BOLT (1/4 x 3/4) |
2 | discontinued |
| 19 | 832382 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 2 | 832472 |
УЗЕЛ ПРОБКИ PLUG ASSEMBLY |
1 | discontinued |
| 20 | 832480 |
ГРЕБНОЙ ВИНТ PROPELLER |
1 | discontinued |
| 21 | 832481 |
СРЕЗНОЙ ШТИФТ SHEAR PIN |
1 | discontinued |
| 22 | 832482 |
ШПЛИНТ COTTER PIN |
1 | discontinued |
| 23 | 832463 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (ВЕРХН.) GROMMET (UPPER) |
1 | discontinued |
| 24 | 832464 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (НИЖНЯЯ ЧАСТЬ) GROMMET (LOWER) |
1 | discontinued |
| 25 | 832364 |
ВИНТ (1/4 x 1) SCREW (1/4 x 1) |
2 | discontinued |
| 26 | 832382 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 27 | 832465 |
ТРУБА Вода TUBE Water |
1 | discontinued |
| 28 | 832467 |
ВЕДУЩИЙ ВАЛ DRIVESHAFT |
1 | discontinued |
| 29 | 832468 |
ШТИФТ Ролик PIN Roll |
1 | discontinued |
| 3 | 832473 |
АНОД Цинк ANODE Zinc |
1 | discontinued |
| 30 | 832469 |
КОЛЬЦО Защелка RING Snap |
1 | discontinued |
| 4 | 832362 |
ВИНТ (M6 x 10) SCREW (M6 x 10) |
1 | discontinued |
| 5 | 832382 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 6 | 832474 |
КОРПУС В СБОРЕ Водяной насос BODY ASSEMBLY Water Pump |
1 | discontinued |
| 7 | 832361 |
ВИНТ (M5 x 16) SCREW (M5 x 16) |
2 | discontinued |
| 8 | 832380 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 9 | 832475 |
КРЫЛЬЧАТКА IMPELLER |
1 | discontinued |
