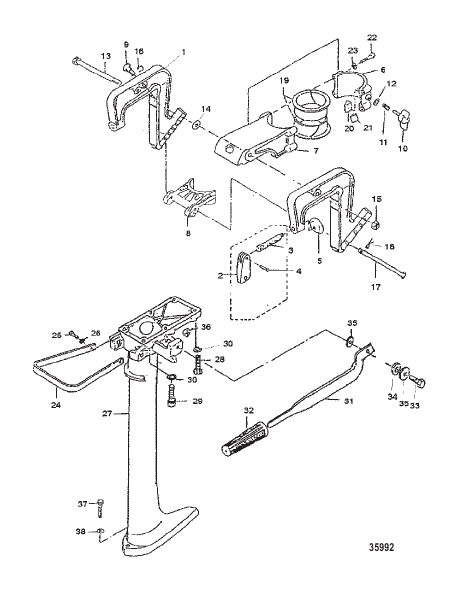

Midsection
Parts (39)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 832444 |
КРОНШТЕЙН Транец BRACKET Transom |
2 | discontinued |
| 10 | 832453 |
БОЛТ BOLT |
1 | discontinued |
| 11 | 832454 |
ПРУЖИНА SPRING |
1 | discontinued |
| 12 | 832378 |
ШАЙБА WASHER |
1 | discontinued |
| 13 | 832357 |
БОЛТ BOLT |
1 | discontinued |
| 14 | 832383 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 15 | 832375 |
ГАЙКА NUT |
1 | discontinued |
| 16 | 832455 |
КОЛЬЦО Защелка RING Snap |
1 | discontinued |
| 17 | 832456 |
ШТИФТ Наклон PIN Tilt |
1 | discontinued |
| 18 | 832457 |
ШПЛИНТ COTTER PIN |
1 | discontinued |
| 19 | 832458 |
РУКАВ (ПЛАСТМАССА) SLEEVE (PLASTIC) |
4 | discontinued |
| 2 | 832445 |
РУКОЯТКА В СБОРЕ HANDLE ASSEMBLY |
2 | discontinued |
| 20 | 832459 |
НАТЯЖЕНИЕ (ПЛАСТМАССА) TENSION (PLASTIC) |
1 | discontinued |
| 21 | 832460 |
ПЛАСТИНА PLATE |
1 | discontinued |
| 22 | 832511 |
БОЛТ (M6 X 30) BOLT (M6 X 30) |
4 | discontinued |
| 22 | 832356 |
БОЛТ (1/4 x 1-1/4) BOLT (1/4 X 1-1/4) |
4 | discontinued |
| 23 | 832382 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
4 | discontinued |
| 24 | 832461 |
РУКОЯТКА ДЛЯ ПЕРЕНОСКИ CARRYING HANDLE |
1 | discontinued |
| 25 | 832352 |
БОЛТ BOLT |
2 | discontinued |
| 26 | 832382 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 27 | 832462 |
КОРПУС Карданный вал HOUSING Driveshaft |
1 | discontinued |
| 28 | 832352 |
БОЛТ (1/4 x 3/4) BOLT (1/4 X 3/4) |
5 | discontinued |
| 29 | 832354 |
БОЛТ (1/4 x 1) BOLT (1/4 X 1) |
1 | discontinued |
| 3 | 832446 |
БОЛТ BOLT |
2 | discontinued |
| 30 | 832382 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
6 | discontinued |
| 31 | 832495 |
РУКОЯТКА Рулевой механизм HANDLE Steering |
1 | discontinued |
| 32 | 832496 |
РУКОЯТКА GRIP |
1 | discontinued |
| 33 | 832358 |
БОЛТ (M8 x 40) BOLT (M8 X 40) |
1 | discontinued |
| 34 | 832383 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 35 | 832497 |
ШАЙБА WASHER |
2 | discontinued |
| 36 | 832375 |
ГАЙКА NUT |
1 | discontinued |
| 37 | 832364 |
ВИНТ (1/4 x 1) SCREW (1/4 X 1) |
2 | discontinued |
| 38 | 832382 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 4 | 832447 |
ШТИФТ PIN |
2 | discontinued |
| 5 | 832448 |
ПЛАСТИНА PLATE |
2 | discontinued |
| 6 | 832449 |
ПОВОРОТНЫЙ КРОНШТЕЙН SWIVEL BRACKET |
1 | discontinued |
| 7 | 832450 |
ПОВОРОТНЫЙ КРОНШТЕЙН SWIVEL BRACKET |
1 | discontinued |
| 8 | 832451 |
ЗАМОК Задняя LOCK Reverse |
1 | discontinued |
| 9 | 832452 |
ШТИФТ Замок PIN Lock |
1 | discontinued |
