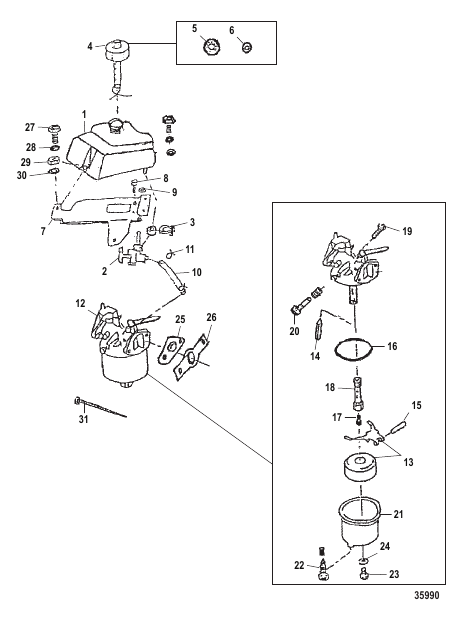

Fuel System
Parts (31)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 832408 |
БАК Топливо TANK Fuel |
1 | discontinued |
| 10 | 832415 |
РУКАВ HOSE |
1 | discontinued |
| 11 | 832416 |
ЗАЖИМ CLIP |
2 | discontinued |
| 12 | 832417 |
КАРБЮРАТОР В СБОРЕ CARBURETOR ASSEMBLY |
1 | discontinued |
| 13 | 832423 |
ПОПЛАВОК FLOAT |
1 | discontinued |
| 14 | 832424 |
ИГОЛЬЧАТЫЙ КЛАПАН NEEDLE VALVE |
1 | discontinued |
| 15 | 832425 |
ШТИФТ Шарнирный PIN Hinge |
1 | discontinued |
| 16 | 832422 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 17 | 832426 |
ГЛАВНЫЙ ЖИКЛЕР MAIN JET |
1 | discontinued |
| 18 | 832427 |
ИГОЛЬЧАТЫЙ ЖИКЛЕР NEEDLE JET |
1 | discontinued |
| 19 | 832428 |
ВИНТ Регулировка холостого хода SCREW Idle Adjustment |
1 | discontinued |
| 2 | 832409 |
КЛАПАН Топливо VALVE Fuel |
2 | discontinued |
| 20 | 832418 |
ВИНТ Смесь для холостого хода SCREW Idle Mixture |
1 | discontinued |
| 21 | 832522 |
ПОПЛАВКОВАЯ КАМЕРА FLOAT CHAMBER |
1 | discontinued |
| 22 | 832419 |
ВИНТ SCREW |
1 | discontinued |
| 23 | 832420 |
ВИНТ SCREW |
1 | discontinued |
| 24 | 832421 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 25 | 832429 |
ПЛАСТИНА PLATE |
1 | discontinued |
| 26 | 832430 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 27 | 832351 |
БОЛТ (1/4 x 3/4) BOLT (1/4 X 3/4) |
2 | discontinued |
| 28 | 832381 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 29 | 832374 |
ГАЙКА NUT |
1 | discontinued |
| 3 | 832410 |
ФИКСАТОР В СБОРЕ CLAMP ASSEMBLY |
1 | discontinued |
| 30 | 832377 |
ШАЙБА WASHER |
2 | discontinued |
| 31 | 832431 |
ЛЕНТОЧНЫЙ ХОМУТ TIE STRAP |
1 | discontinued |
| 4 | 832411 |
КОЛПАЧОК В СБОРЕ Топливный бак CAP ASSEMBLY Fuel Tank |
1 | discontinued |
| 5 | 832412 |
ПРОКЛАДКА Колпачок GASKET Cap |
1 | discontinued |
| 6 | 832413 |
ПРОКЛАДКА Вентиляционное отверстие GASKET Air Vent |
1 | discontinued |
| 7 | 832414 |
КРОНШТЕЙН Топливный бак BRACKET Fuel Tank |
1 | discontinued |
| 8 | 832366 |
БОЛТ (M5 X 16) BOLT (M5 X 16) |
2 | discontinued |
| 9 | 832379 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
