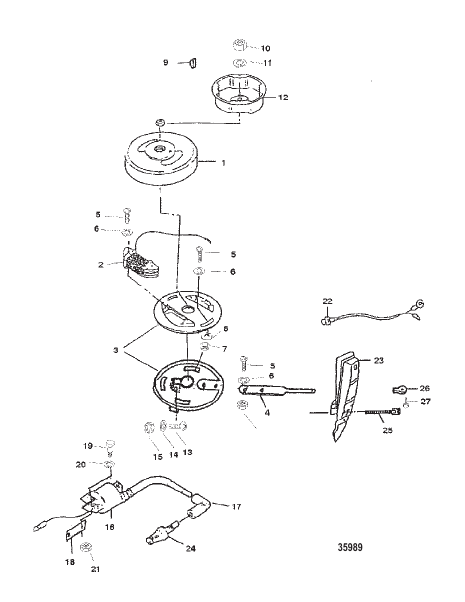

Ignition
Parts (27)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 832432 |
МАХОВИК FLYWHEEL |
1 | discontinued |
| 10 | 832376 |
ГАЙКА NUT |
2 | discontinued |
| 11 | 832385 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 12 | 832437 |
ШКИВ Стартер PULLEY Starter |
1 | discontinued |
| 13 | 832363 |
ВИНТ (M6 X 25) SCREW (M6 X 25) |
1 | discontinued |
| 14 | 832381 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 15 | 832373 |
ГАЙКА (M6) NUT (M6) |
1 | discontinued |
| 16 | 832438 |
КАТУШКА В СБОРЕ COIL ASSEMBLY |
1 | discontinued |
| 17 | 832439 |
ЧЕХОЛ BOOT |
1 | discontinued |
| 18 | 832440 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 19 | 832360 |
ВИНТ (M5 X 16) SCREW (M5 X 16) |
1 | discontinued |
| 2 | 832433 |
КАТУШКА Зажигание COIL Ignition |
1 | discontinued |
| 20 | 832379 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 21 | 832372 |
ГАЙКА (M5) NUT (M5) |
1 | discontinued |
| 22 | 832441 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Стоп SWITCH ASSEMBLY Stop |
1 | discontinued |
| 23 | 832442 |
ПУЛЬТ УПРАВЛЕНИЯ CONTROL PANEL |
1 | discontinued |
| 24 | 832443 |
СВЕЧА ЗАЖИГАНИЯ (B-7HS) SPARK PLUG (B-7HS) |
1 | superseded |
| 25 | 832369 |
БОЛТ (1/4 x 3) BOLT (1/4 X 3) |
2 | discontinued |
| 26 | 832503 |
РУЧКА KNOB |
2 | discontinued |
| 27 | 832359 |
ВИНТ (3 x 6) SCREW (3 X 6) |
2 | discontinued |
| 3 | 832434 |
ПЛАСТИНА Рулевой привод PLATE Actuator |
1 | discontinued |
| 4 | 832435 |
РЫЧАГ Дроссельная заслонка LEVER Throttle |
1 | discontinued |
| 5 | 832360 |
ВИНТ (M5 X 16) SCREW (M5 X 16) |
4 | discontinued |
| 6 | 832379 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
4 | discontinued |
| 7 | 832372 |
ГАЙКА (M5) NUT (M5) |
4 | discontinued |
| 8 | 832377 |
ШАЙБА (M6) WASHER (M6) |
2 | discontinued |
| 9 | 832436 |
СЕГМЕНТНАЯ ШПОНКА WOODRUFF KEY |
1 | discontinued |
