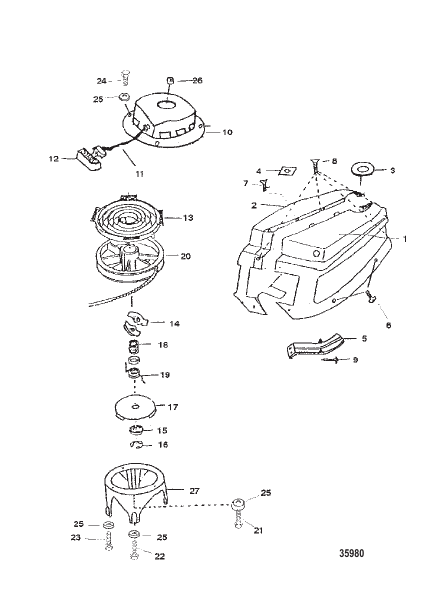

Cowling and Recoil Starter
Parts (27)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 832500 |
ОБТЕКАТЕЛЬ (ПРАВЫЙ БОРТ) COWLING (STARBOARD) |
1 | discontinued |
| 10 | 832483 |
СТАРТЕР В СБОРЕ Обратный ход STARTER ASSEMBLY Recoil |
1 | |
| 11 | 832486 |
ТРОС ROPE |
1 | discontinued |
| 12 | 832487 |
РУКОЯТКА HANDLE |
1 | discontinued |
| 13 | 832488 |
ПРУЖИНА Ручной стартер SPRING Recoil Starter |
1 | discontinued |
| 14 | 832489 |
ХРАПОВИК RATCHET |
1 | discontinued |
| 15 | 832490 |
ШАЙБА WASHER |
1 | discontinued |
| 16 | 832491 |
Е-ОБРАЗНОЕ КОЛЬЦО E RING |
1 | discontinued |
| 17 | 832492 |
ФРИКЦИОННЫЙ ДИСК FRICTION PLATE |
1 | discontinued |
| 18 | 832493 |
ПРУЖИНА Трение SPRING Friction |
1 | discontinued |
| 19 | 832484 |
ПРУЖИНА Возврат SPRING Return |
1 | discontinued |
| 2 | 832498 |
ОБТЕКАТЕЛЬ (ЛЕВЫЙ БОРТ) COWLING (PORT) |
1 | discontinued |
| 20 | 832485 |
ШКИВ Стартер PULLEY Starter |
1 | discontinued |
| 21 | 832355 |
БОЛТ BOLT |
1 | discontinued |
| 22 | 832351 |
БОЛТ BOLT |
1 | discontinued |
| 23 | 832353 |
БОЛТ BOLT |
2 | |
| 24 | 832350 |
БОЛТ BOLT |
3 | discontinued |
| 25 | 832381 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
7 | discontinued |
| 26 | 832504 |
УПАКОВКА Кожух PACKING Cowl |
1 | discontinued |
| 27 | 832494 |
КРЕПЛЕНИЕ Ручной стартер MOUNT Recoil Starter |
1 | discontinued |
| 3 | 832499 |
ПЛАСТИНА Резина PLATE Rubber |
1 | discontinued |
| 4 | 832501 |
ГАЙКА NUT |
4 | discontinued |
| 5 | 832502 |
ДВЕРЬ DOOR |
1 | discontinued |
| 6 | 832362 |
ВИНТ (M6 X 10) (ПРАВЫЙ БОРТ) SCREW (M6 X 10)(STARBOARD) |
4 | discontinued |
| 7 | 832370 |
БОЛТ (M5 X 20) BOLT (M5 X 20) |
1 | discontinued |
| 8 | 832371 |
БОЛТ (M6 X 12) BOLT (M6 X 12) |
4 | discontinued |
| 9 | 832392 |
ВИНТ Самонарезной (M5 X 15) SCREW Self Tapping (M5 X 15) |
4 | discontinued |
