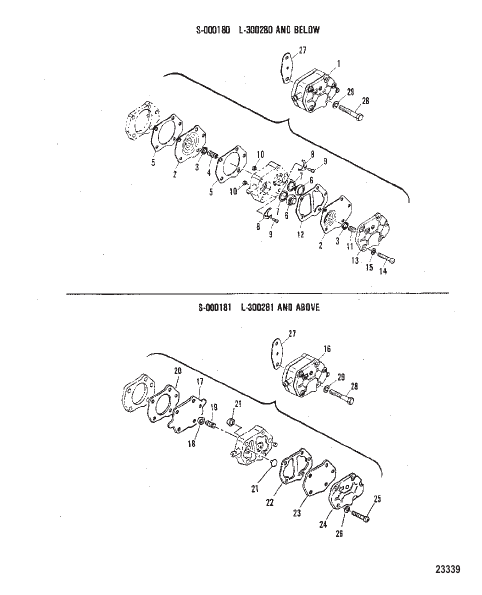

FUEL PUMP
Parts (31)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 84168M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| 1 | 81328M |
НАСОС В СБОРЕ Топливо [S-675-000180/L-675-300280] & Below PUMP ASSEMBLY Fuel [S-675-000180/L-675-300280] & Below |
1 | superseded |
| 11 | 82373M |
ГАЙКА [S-675-000180/L-675-300280] & Below NUT [S-675-000180/L-675-300280] & Below |
1 | superseded |
| 11 | 80615M |
ПРУЖИНА [S-675-000180/L-675-300280] & Below SPRING [S-675-000180/L-675-300280] & Below |
1 | discontinued |
| 12 | 80614M |
ПРОКЛАДКА КОРПУС К КРЫШКЕ [S-675-000180/L-675-300280] & Below GASKET BODY TO COVER [S-675-000180/L-675-300280] & Below |
1 | superseded |
| 13 | 80607M |
КРЫШКА [S-675-000180/L-675-300280] & Below COVER [S-675-000180/L-675-300280] & Below |
1 | discontinued |
| 14 | 82522M |
ВИНТ [S-675-000180/L-675-300280] & Below SCREW [S-675-000180/L-675-300280] & Below |
3 | discontinued |
| 15 | 82208M |
ШАЙБА ЗАМОК [S-675-000180/L-675-300280] & Below WASHER LOCK [S-675-000180/L-675-300280] & Below |
3 | superseded |
| 16 | 84139M |
НАСОС В СБОРЕ Топливо [S-675-000181/L-675-300281] & Up PUMP ASSEMBLY Fuel [S-675-000181/L-675-300281] & Up |
1 | superseded |
| 17 | 80606M |
ДИАФРАГМА [S-675-000181/L-675-300281] & Up DIAPHRAGM [S-675-000181/L-675-300281] & Up |
1 | |
| 18 | 80611M |
ПЛАСТИНА ПРУЖИННАЯ НАПРАВЛЯЮЩАЯ [S-675-000181/L-675-300281] & Up PLATE SPRING GUIDE [S-675-000181/L-675-300281] & Up |
1 | discontinued |
| 19 | 80610M |
ПРУЖИНА [S-675-000181/L-675-300281] & Up SPRING [S-675-000181/L-675-300281] & Up |
1 | discontinued |
| 2 | 80606M |
ДИАФРАГМА [S-675-000180/L-675-300280] & Below DIAPHRAGM [S-675-000180/L-675-300280] & Below |
2 | |
| 20 | 80613M |
ПРОКЛАДКА КОРПУС К ОСНОВАНИЮ [S-675-000181/L-675-300281] & Up GASKET BODY TO BASE [S-675-000181/L-675-300281] & Up |
1 | superseded |
| 21 | 84140M |
ОБРАТНЫЙ КЛАПАН [S-675-000181/L-675-300281] & Up CHECK VALVE [S-675-000181/L-675-300281] & Up |
2 | superseded |
| 22 | 80614M |
ПРОКЛАДКА КОРПУС К КРЫШКЕ [S-675-000181/L-675-300281] & Up GASKET BODY TO COVER [S-675-000181/L-675-300281] & Up |
1 | superseded |
| 23 | 84141M |
ДИАФРАГМА [S-675-000181/L-675-300281] & Up DIAPHRAGM [S-675-000181/L-675-300281] & Up |
1 | |
| 24 | 80607M |
КРЫШКА [S-675-000181/L-675-300281] & Up COVER [S-675-000181/L-675-300281] & Up |
1 | discontinued |
| 25 | 82522M |
ВИНТ [S-675-000181/L-675-300281] & Up SCREW [S-675-000181/L-675-300281] & Up |
3 | discontinued |
| 26 | 82208M |
ШАЙБА ЗАМОК [S-675-000181/L-675-300281] & Up WASHER LOCK [S-675-000181/L-675-300281] & Up |
3 | superseded |
| 27 | 80757M |
ПРОКЛАДКА ТОПЛИВНЫЙ НАСОС К КАРТЕРУ GASKET FUEL PUMP TO CRANKCASE |
1 | superseded |
| 28 | 82428M |
БОЛТ BOLT |
2 | superseded |
| 29 | 82198M |
ШАЙБА WASHER |
2 | superseded |
| 3 | 80611M |
ПЛАСТИНА ПРУЖИННАЯ НАПРАВЛЯЮЩАЯ [S-675-000180/L-675-300280] & Below PLATE SPRING GUIDE [S-675-000180/L-675-300280] & Below |
2 | discontinued |
| 4 | 80610M |
ПРУЖИНА [S-675-000180/L-675-300280] & Below SPRING [S-675-000180/L-675-300280] & Below |
1 | discontinued |
| 5 | 80613M |
ПРОКЛАДКА КОРПУС К ОСНОВАНИЮ [S-675-000180/L-675-300280] & Below GASKET BODY TO BASE [S-675-000180/L-675-300280] & Below |
2 | superseded |
| 6 | 80608M |
ОБРАТНЫЙ КЛАПАН [S-675-000180/L-675-300280] & Below CHECK VALVE [S-675-000180/L-675-300280] & Below |
2 | discontinued |
| 7 | 80612M |
ПРОКЛАДКА ОБРАТНЫЙ КЛАПАН [S-675-000180/L-675-300280] & Below GASKET CHECK VALVE [S-675-000180/L-675-300280] & Below |
2 | discontinued |
| 8 | 80609M |
ФИКСАТОР ОБРАТНЫЙ КЛАПАН [S-675-000180/L-675-300280] & Below RETAINER CHECK VALVE [S-675-000180/L-675-300280] & Below |
2 | discontinued |
| 9 | 82511M |
ВИНТ [S-675-000180/L-675-300280] & Below SCREW [S-675-000180/L-675-300280] & Below |
2 | discontinued |
| 9 | 82511M |
ВИНТ [S-675-000180/L-675-300280] & Below SCREW [S-675-000180/L-675-300280] & Below |
2 | discontinued |
