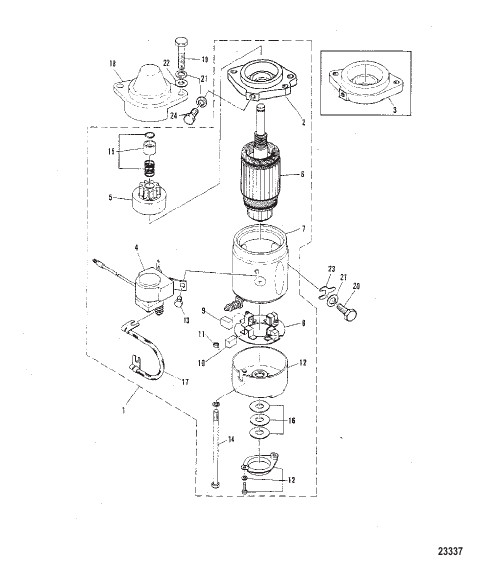

ELECTRIC STARTER MOTOR
Parts (26)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 81490M |
СТАРТЕР В СБОРЕ STARTER MOTOR ASSEMBLY |
1 | superseded |
| 10 | 81495M |
ЩЕТКА (-) BRUSH (-) |
2 | discontinued |
| 11 | 81496M |
ПРУЖИНА ЩЕТКА SPRING BRUSH |
4 | discontinued |
| 12 | 81499M |
ЗАДНЯЯ КРЫШКА REAR COVER |
1 | discontinued |
| 13 | 82420M |
БОЛТ BOLT |
2 | superseded |
| 14 | 81500M |
БОЛТ BOLT |
2 | discontinued |
| 15 | 81505M |
КОЛЬЦО СТОП RING STOP |
1 | superseded |
| 16 | 83652M |
КОМПЛЕКТ ШАЙБ [S-675-00526/L-675-33576] & Up WASHER KIT [S-675-00526/L-675-33576] & Up |
1 | discontinued |
| 16 | 81491M |
КОМПЛЕКТ ШАЙБ [S-675-00525/L-675-33575] & Below WASHER KIT [S-675-00525/L-675-33575] & Below |
1 | discontinued |
| 17 | 81497M |
ПРОВОД ЖИЛА WIRE LEAD |
1 | discontinued |
| 18 | 81508M |
КРЫШКА COVER |
1 | discontinued |
| 19 | 84236M |
БОЛТ BOLT |
2 | discontinued |
| 2 | 83654M |
КРОНШТЕЙН Передний [S-675-00526/L-675-33576] & Up BRACKET Front [S-675-00526/L-675-33576] & Up |
1 | discontinued |
| 20 | 84342M |
БОЛТ BOLT |
1 | discontinued |
| 21 | 82200M |
ШАЙБА WASHER |
4 | superseded |
| 22 | 82202M |
ШАЙБА WASHER |
2 | superseded |
| 23 | 81485M |
КЛЕММА TERMINAL |
AR | discontinued |
| 24 | 82437M |
БОЛТ BOLT |
1 | discontinued |
| 3 | 81502M |
КРОНШТЕЙН Передний [S-675-00525/L-675-33575] & Below BRACKET Front [S-675-00525/L-675-33575] & Below |
1 | superseded |
| 4 | 81513M |
ПЕРЕКЛЮЧАТЕЛЬ SWITCH |
1 | discontinued |
| 5 | 81504M |
ПЕРЕДАЧА GEAR |
1 | superseded |
| 6 | 81510M |
ЯКОРЬ [S-675-00525/L-675-33575] & Below ARMATURE [S-675-00525/L-675-33575] & Below |
1 | superseded |
| 6 | 83651M |
ЯКОРЬ [S-675-00526/L-675-33576] & Up ARMATURE [S-675-00526/L-675-33576] & Up |
1 | discontinued |
| 7 | 81493M |
СТАТОР STATOR |
1 | discontinued |
| 8 | 81507M |
ДЕРЖАТЕЛЬ Щетка HOLDER Brush |
1 | discontinued |
| 9 | 81494M |
ЩЕТКА (+) BRUSH (+) |
2 | discontinued |
